ECC31 Mullard
Doppeltriode - Twin Triode

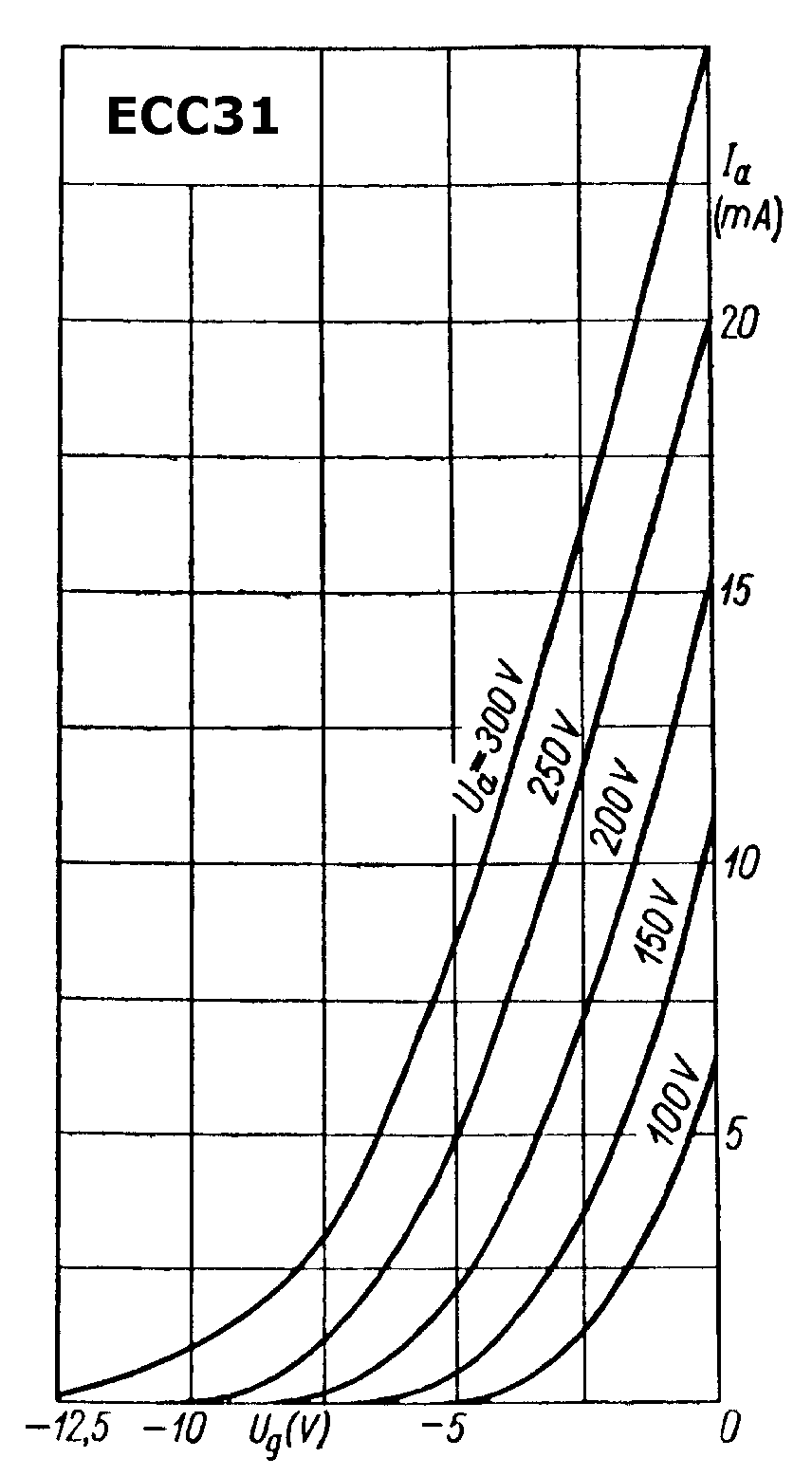

Ia(Ug)-Kennlinienfeld
Transfer Characteristics

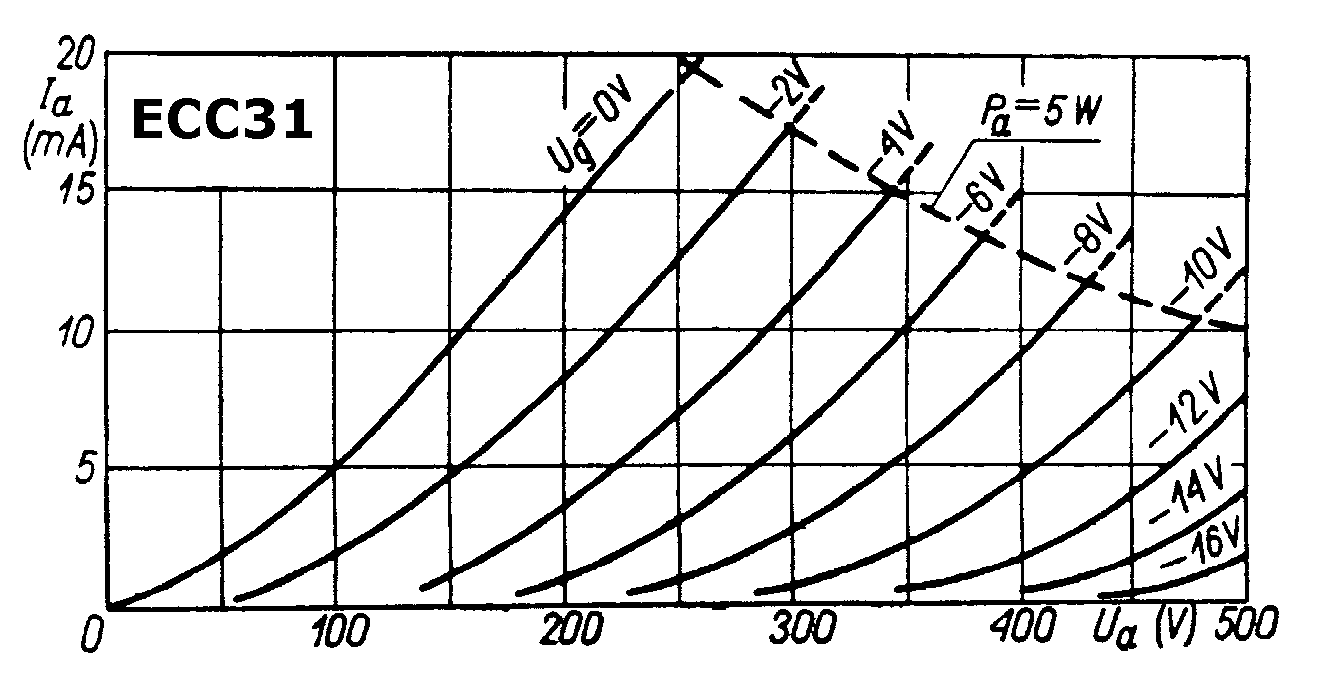

Ia(Ua)-Kennlinienfeld
Plate Characteristics

Niederfrequenz-Spannungsverstärker in RC-Kopplung
Resistance-Coupled, Audio-Frequency Voltage Amplifier

ECC31

Ub:
Ia: 200
1.9 250
2.4 300
2.9 350
3.4 400
3.9 200
1.0 250
1.3 300
1.6 350
1.8 400
2.1 200
0.55 250
0.7 300
0.85 350
0.95 400
1.1 V
mA

V:
Ua~:
k: 19.5
26
3.2 19.5
37
3.4 20
48
3.5 20.5
57
3.6 21
67
3.7 24
32
2.4 24.5
44
2.6 24.5
54
2.8 25
69
2.9 25
81
3.0 26.5
34
2.0 27
45
2.1 27
56
2.2 27.5
68
2.1 27.5
81
2.3
V.rms
%

RaL:
Rg:
Rg1':
Rk: 47
1.0
150
1.2 100
1.0
330
2.2 220
1.0
680
3.9 kOhm
MOhm
kOhm
kOhm

Cg:
Ca:
Ck: 10
10
50 10
10
50 10
10
50 nF
nF
µF

Ref *? Ci1 Mik60

Niederfrequenz-Spannungsverstärker in RC-Kopplung
Resistance-Coupled, Audio-Frequency Voltage Amplifier
	ECC31
Ub: Ia:	200 1.9	250 2.4	300 2.9	350 3.4	400 3.9	200 1.0	250 1.3	300 1.6	350 1.8	400 2.1	200 0.55	250 0.7	300 0.85	350 0.95	400 1.1	V mA
V: Ua~: k:	19.5 26 3.2	19.5 37 3.4	20 48 3.5	20.5 57 3.6	21 67 3.7	24 32 2.4	24.5 44 2.6	24.5 54 2.8	25 69 2.9	25 81 3.0	26.5 34 2.0	27 45 2.1	27 56 2.2	27.5 68 2.1	27.5 81 2.3	V.rms %
RaL: Rg: Rg1': Rk:	47 1.0 150 1.2	100 1.0 330 2.2	220 1.0 680 3.9	kOhm MOhm kOhm kOhm
Cg: Ca: Ck:	10 10 50	10 10 50	10 10 50	nF nF µF
Ref *?	Ci1 Mik60
