ECC33 Mullard
Doppeltriode - Twin Triode

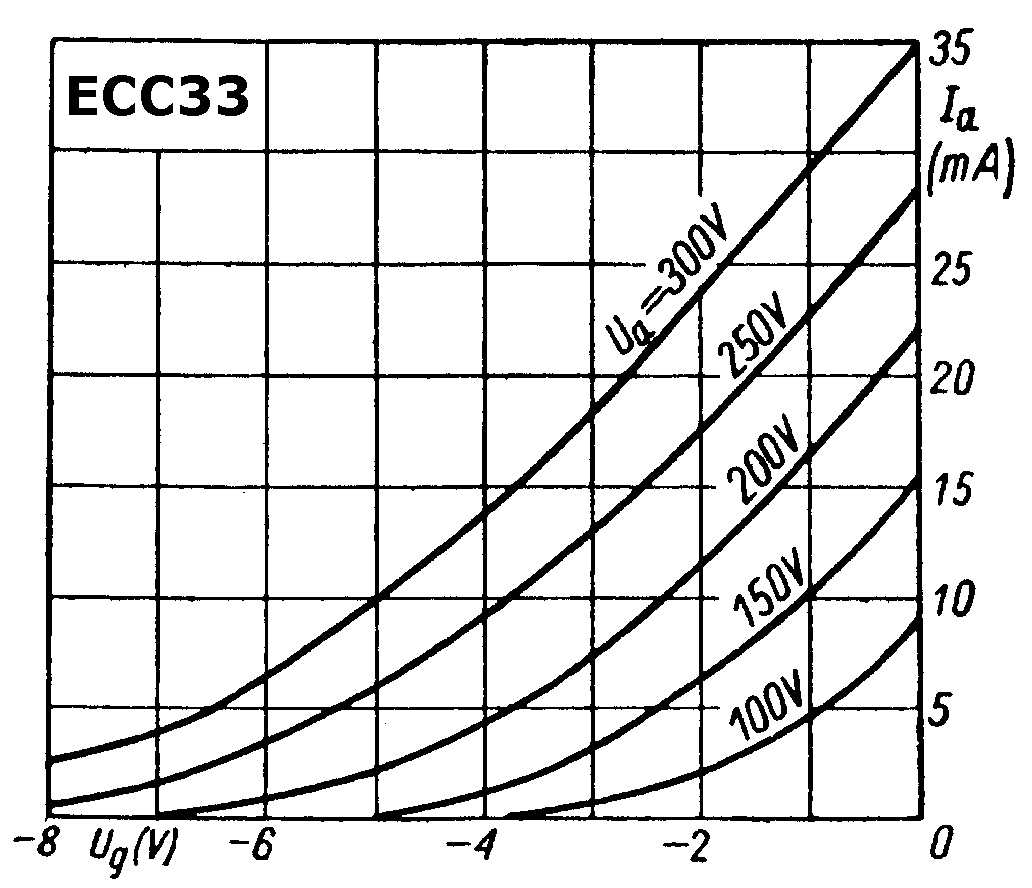

Ia(Ug)-Kennlinienfeld

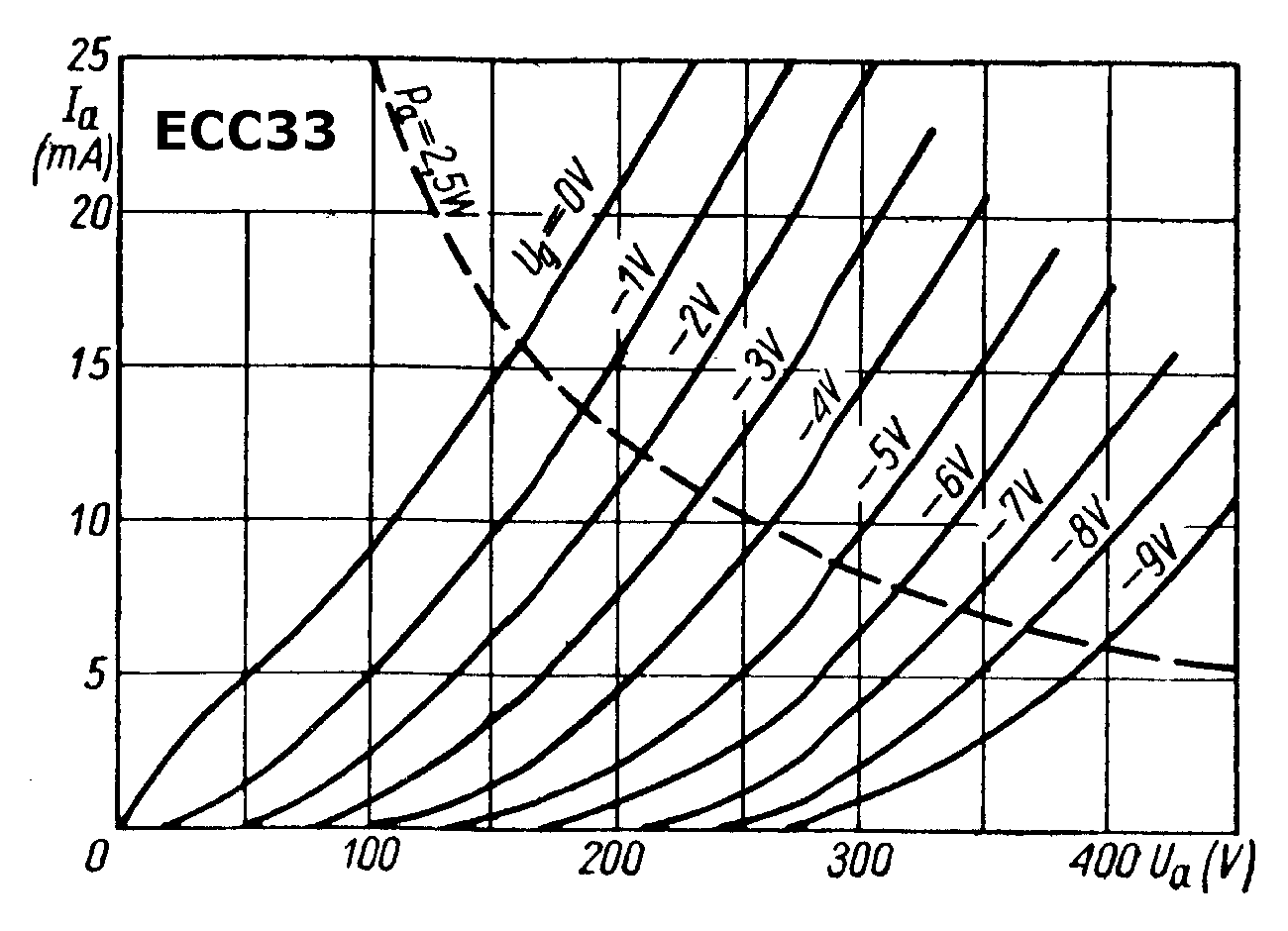

Transfer Characteristics Ia(Ua)-Kennlinienfeld
Plate Characteristics

Niederfrequenz-Spannungsverstärker in RC-Kopplung
Resistance-Coupled, Audio-Frequency Voltage Amplifier

ECC33

Ub:
Ia: 200
2.0 250
2.5 300
3.0 350
3.5 400
4.0 200
1.0 250
1.3 300
1.5 350
1.8 400
2.0 200
0.5 250
0.7 300
0.8 350
1.0 400
1.1 V
mA

V:
Ua~:
k: 24.5
30.5
5.3 25
41
5.6 25
50
5.6 25
62.5
5.9 25.5
74
6.1 26.5
32
5.2 27
43
5.4 27
54.5
5.6 27.5
66.5
5.6 28
78.5
5.7 27
30.5
4.8 27.5
41
4.8 28
51
5.0 28
63
5.0 28
74.5
5.1
V.rms
%

RaL:
Rg:
Rg1':
Rk: 47
1.0
150
1.2 100
1.0
330
2.2 220
1.0
680
3.9 kOhm
MOhm
kOhm
kOhm

Cg:
Ca:
Ck: 10
10
50 10
10
50 10
10
50 nF
nF
µF

Ref *? Ci1 Mik60

Niederfrequenz-Spannungsverstärker in RC-Kopplung
Resistance-Coupled, Audio-Frequency Voltage Amplifier
	ECC33
Ub: Ia:	200 2.0	250 2.5	300 3.0	350 3.5	400 4.0	200 1.0	250 1.3	300 1.5	350 1.8	400 2.0	200 0.5	250 0.7	300 0.8	350 1.0	400 1.1	V mA
V: Ua~: k:	24.5 30.5 5.3	25 41 5.6	25 50 5.6	25 62.5 5.9	25.5 74 6.1	26.5 32 5.2	27 43 5.4	27 54.5 5.6	27.5 66.5 5.6	28 78.5 5.7	27 30.5 4.8	27.5 41 4.8	28 51 5.0	28 63 5.0	28 74.5 5.1	V.rms %
RaL: Rg: Rg1': Rk:	47 1.0 150 1.2	100 1.0 330 2.2	220 1.0 680 3.9	kOhm MOhm kOhm kOhm
Cg: Ca: Ck:	10 10 50	10 10 50	10 10 50	nF nF µF
Ref *?	Ci1 Mik60
