ECC70 Mullard
Doppeltriode - Twin Triode

Anschlüsse
Electrodes

Dual Triode

Subminiatur
8-Lead Subminiature

B8D

Von unten gesehen
Bottom View

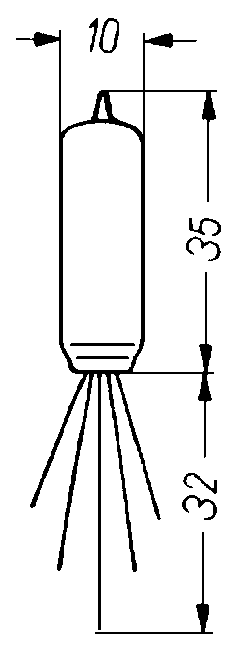

Zylindrischer Kolben
Tubular Bulb

6021

Alle Massangaben in Millimeter
All dimensions are in millimeters

Sm-
Rath.
RETMA 8CC1
Sm29
8DG

1:
2:
3:
4:
5:
6:
7:
8: aII
gII
f
kII
kI
f
gI
aI

Übersicht - Overview

Equiv. Uf If µ Base Type Applications Ref *?

ECC70 (6021) 6.3 0.3 35 8DG Twin Triode RF Amplifier - Oscillator Mik60

V A

**Übersicht - Overview**
	Equiv.	Uf	If	µ	Base	Type	Applications	Ref *?
ECC70	(6021)	6.3	0.3	35	8DG	Twin Triode	RF Amplifier - Oscillator	Mik60
	V	A

Statische und Verstärker-Kenndaten
Class-A Amplifier Characteristics

ECC70

Ua:
Ug: 100
- V
V

Ia:
S:
µ:
ra:
Rk: 6.5
5.4
35
6.5
150 mA
mA/V

kOhm
Ohm

Ref *? Mik60 Rtt74

Grenzwerte
Maximum Ratings

ECC70

Pa:
Ua:
Ufk:
Ik: 1.0
150
200
22 W
V
V
mA

Cin:
Cout:
Cag:
Caa: 2.4
0.28
1.5
- 2.4
0.32
1.5
- pF
pF
pF
pF

Ref *? I Mik60 II Mik60
