| 1.7 | Dioden, Gleichrichter und Thyratrons Diodes, Rectifiers, and Thyratrons |
| 1.7.4 | Thyratron-Trioden Thyratron Triodes |
| 3C45 ... EN31 | |||||||||
|---|---|---|---|---|---|---|---|---|---|

|
Equiv. | Uf | If | Ua (PK) |
Base | w | Gas | Art - Type = Anwendungen - Applications | Ref *? |
| Heater | V | A | V | Outline | g | ||||
| 3C45 | PL345 | 6.3 | 2.3 | 3000 | 4BL | 70 | H2 | Hydrogen Thyratron   = Microwave Radar Pulse Modulator |
Phi58 Rat64 |
| 4C35 | CV1787 PL435 | 6.3 | 6.1 | 8000 | Ju-4N2 | 200 | H2 | Hydrogen Thyratron = Pulse Driver - High-Speed Switch |
Amp63 Rat64 |
| 5C22 | PL522 | 6.3 | 10.6 | 16000 | Ju-4N2 | 280 | H2 | Hydrogen Thyratron = Pulse Driver - High-Speed Switch |
Amp63 Rat64 |
| 4686 | - | 4.0 | 1.2 | 300 | Au-8N2 | Ar | Gas Triode = Oscillator | Rat64 | |
| 4690 | - | 4.0 | 1.3 | 500 | Au-8N1 | He | Gas Triode | Phi48 | |
| 5557 | PL17 PL5557 | 2.5 | 5.0 | 2500 | 4BL ST19 | 85 | Hg | Mercury-Vapor Triode = Rectifier - Motor Control | Rca46 |
| 5559 | PL57 PL5559 | 5.0 | 4.5 | 1000 | 4BL ST23 | 125 | Hg | Mercury-Vapor Triode = Rectifier - Motor Control | Rca51 |
| 5563 | - | 5.0 | 10 | 15000 | Ju-4N4 T24 | Hg | Mercury-Vapor Triode = Grid-Controlled Rectifier | 5 Rca47 | |
| 5685 | C6J-A | 2.5 | 21 | 1000 | Ju-4N1 T16 | Xe | Xenon Thyratron = Grid-Controlled Rectifier | 5 113 Rca56 | |
| 6268 | (4C35) | 6.3 | 6.0 | 8000 | Ju-4N2 | H2 | Hydrogen Thyratron = Pulse Driver - High-Speed Switch |
108 Amp63 Rat64 | |
| 6279 | (5C22) | 6.3 | 11 | 16000 | Ju-4N2 | H2 | Hydrogen Thyratron = Pulse Driver - High-Speed Switch |
108 Amp63 Rat64 | |
| AC50 | - | 4.0 | 0.6 | 300 | Au-8N2 | Ar | Gas Triode = Oscillator | 70 Val | |
| EC50 | - | 6.3 | 1.3 | 1000 | Au-8N1 | He | Gas Triode | Val62 | |
| EC860 iII | (EC50) | 6.3 | 1.4 | 1000 | No-9N1 | 17.5 | He | Gastriode = Erzeugung von Kippschwingungen bis 150 kHz, Schalt- und Steuerröhre | Rft67 |
| EN31 | - | 6.3 | 1.3 | 1000 | Oc-6N1 | - | Gas Triode = Time-Base Oscillator | Mul59 | |
| Equiv. | Uf | If | Ua (PK) |
Base | w | Gas | Art - Type = Anwendungen - Applications | 18153 | |
| Heater | V | A | kV | Outline | g | ||||
| 1.7.5 | Thyratron-Tetroden und Pentoden Thyratron Tetrodes und Pentodes |
| 2D21 ... ZT1020 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|
Equiv. | Uf | If | Ua (PK) |
Base | w | Gas | Art - Type = Anwendungen - Applications | Ref *? |
| Heater | V | A | V | Outline | g | ||||
| 2D21 | EN91 | 6.3 | 0.6 | 650 | 7BN M38 |
10 | Inert | Thyratron Tetrode = Rectifier - Relay | Tfk67 |
| 5643 | EN70 | 6.3 | 0.15 | 500 | 8DD | Inert | Thyratron Tetrode = Counter - AC Control Circuit | 4 Syl57 | |
| 5663 | - | 6.3 | 0.15 | 500 | 6CE M22 |
- | Thyratron Tetrode = Controlled Rectifier | Get73 | |
| 5696 | EN92 | 6.3 | 0.15 | 500 | 7BN M28 |
8.0 | Xe | Thyratron Tetrode = Counter - Relay | Tfk67 |
| ST21 | 2D21 PL21 | 6.3 | 0.6 | 650 | 7BN | Inert | Thyratron Tetrode = Relay - AC Control Circuits | Sie64 | |
| ST105 | 105 PL105 | 5.0 | 10 | 2500 | 4CD | Hg | Mercury-Vapor Thyratron Tetrode = Relay - Phase Control | Sie64 | |
| ZT1020 | 5696 Va | 6.3 | 0.15 | 650 | 7BN M28 |
8.0 | Inert | Thyratron Tetrode = Pulse Modulator - Counter - Relay | Tfk67 |
| Equiv. | Uf | If | Ua (PK) |
Base | w | Gas | Art - Type = Anwendungen - Applications | 20289 | |
| Heater | V | A | kV | Outline | g | ||||
|
 |
|
|
|
 |
 |
|---|---|

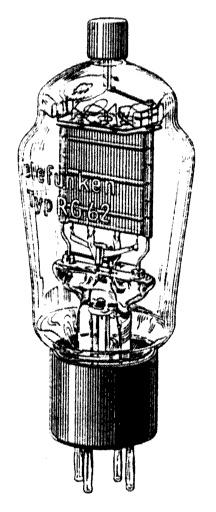

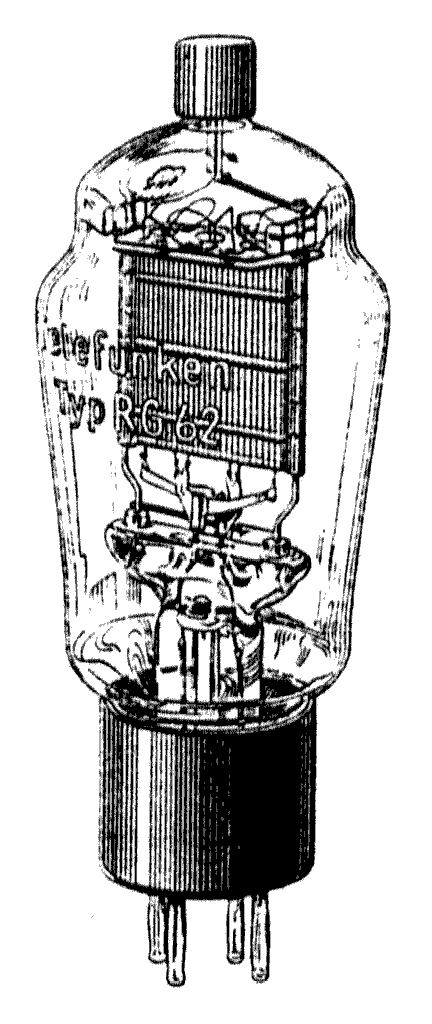

| Telefunken RG62 | Telefunken RSQ7,5/0,6 |
