A.4.8 Sockelbilder
Base Diagrams

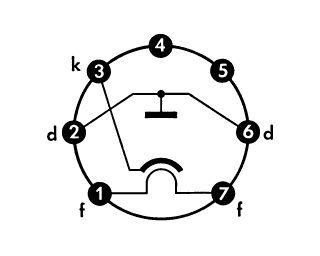

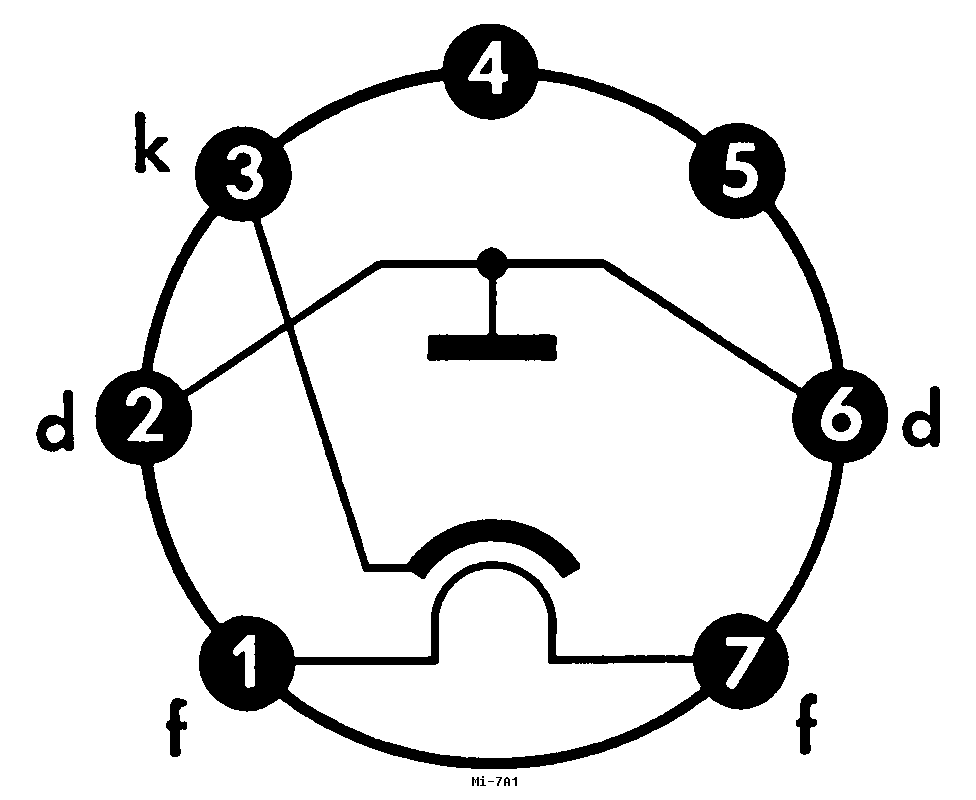

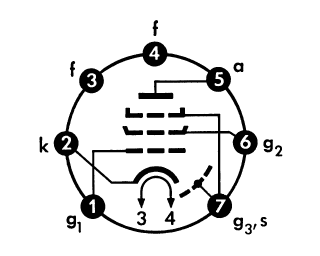

Mi-7A1
1A3
Mi-7A1

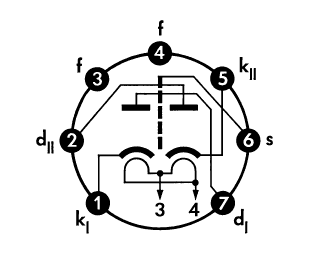

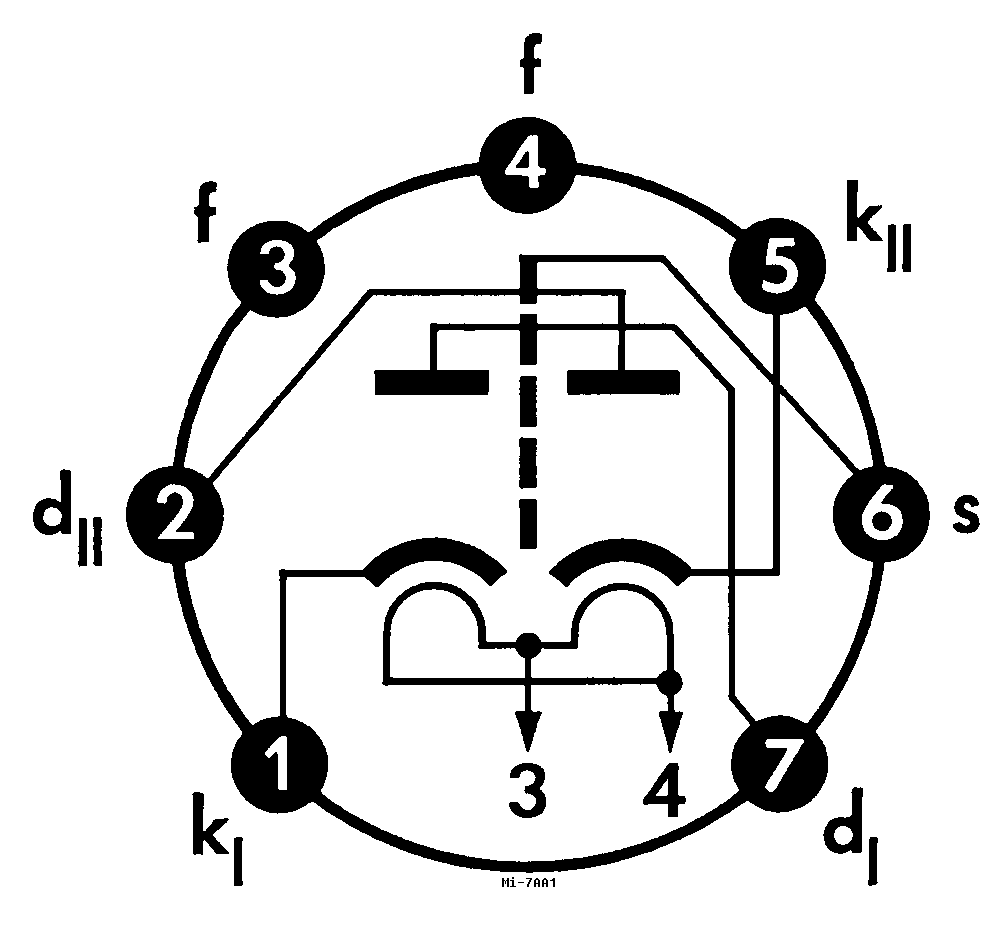

Mi-7AA1
5726 EAA91 EAA901S
Mi-7AA1

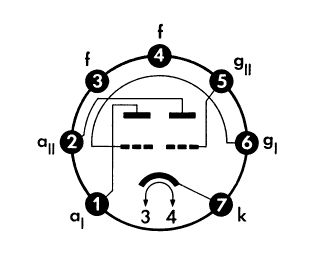

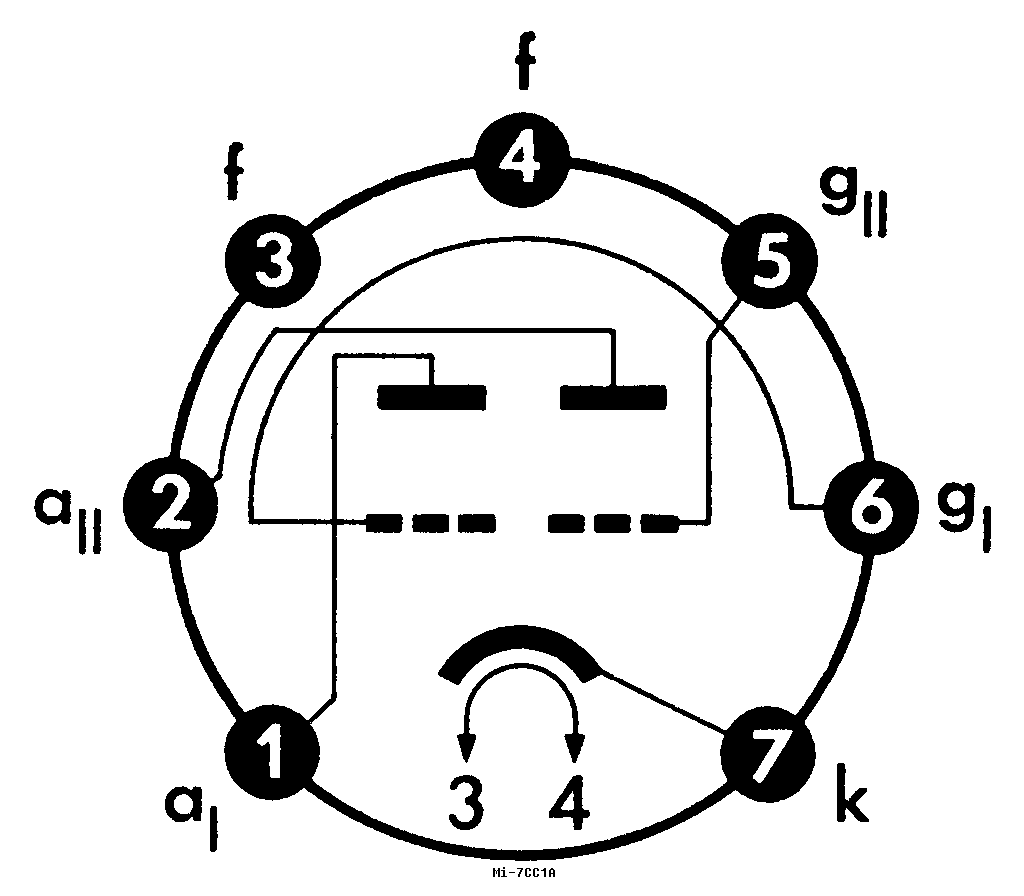

Mi-7CC1A
E90CC E92CC
Mi-7CC1A

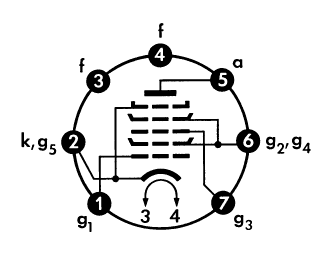

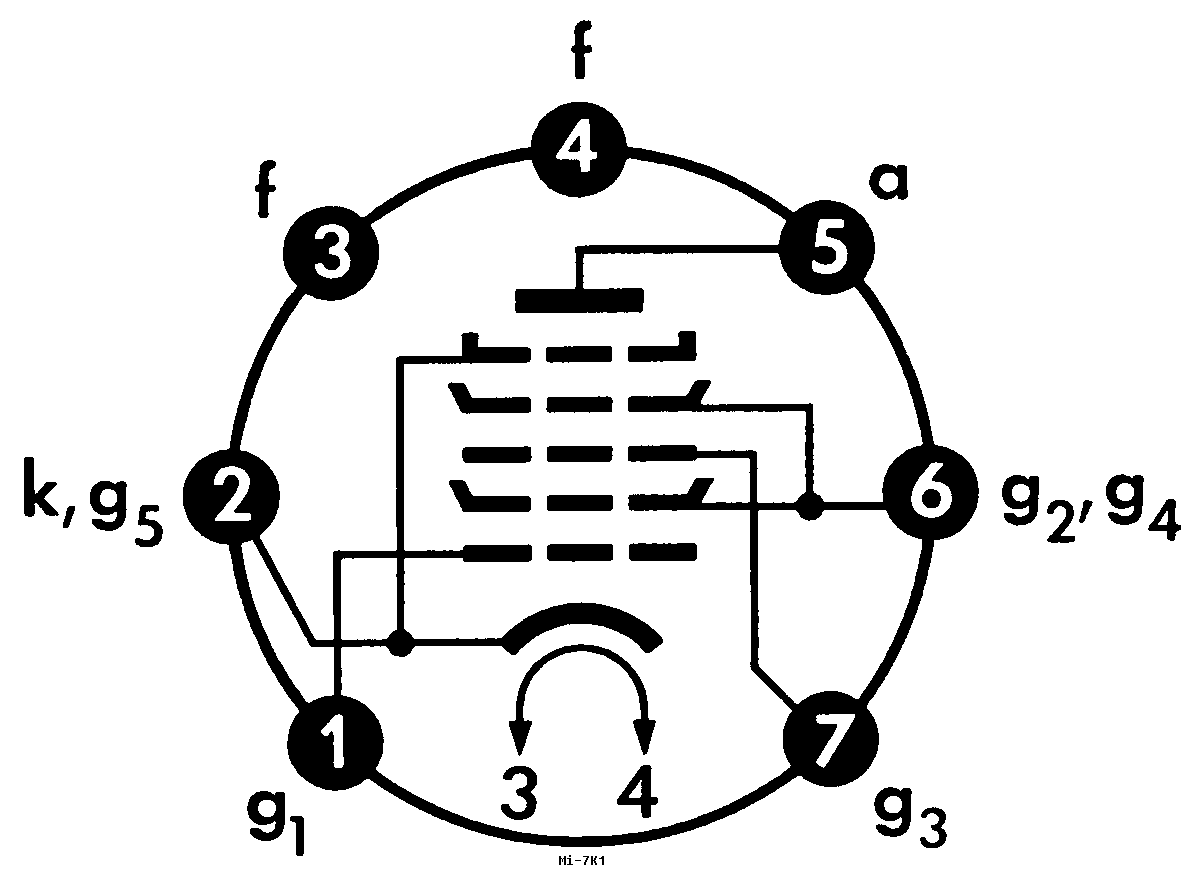

Mi-7K1
E91H EH90 EH900S EK90
Mi-7K1

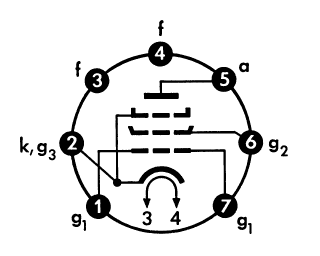

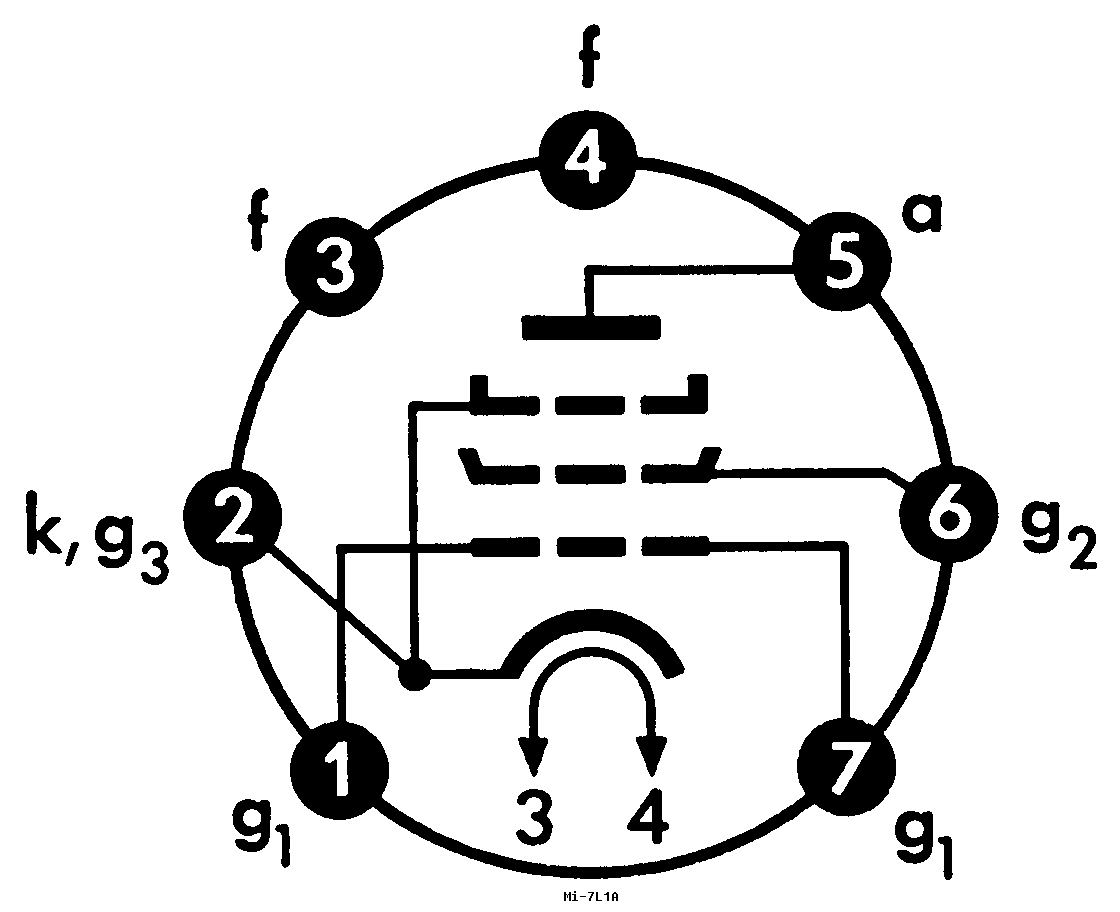

Mi-7L1A
6005 EL90 EL95
Mi-7L1A

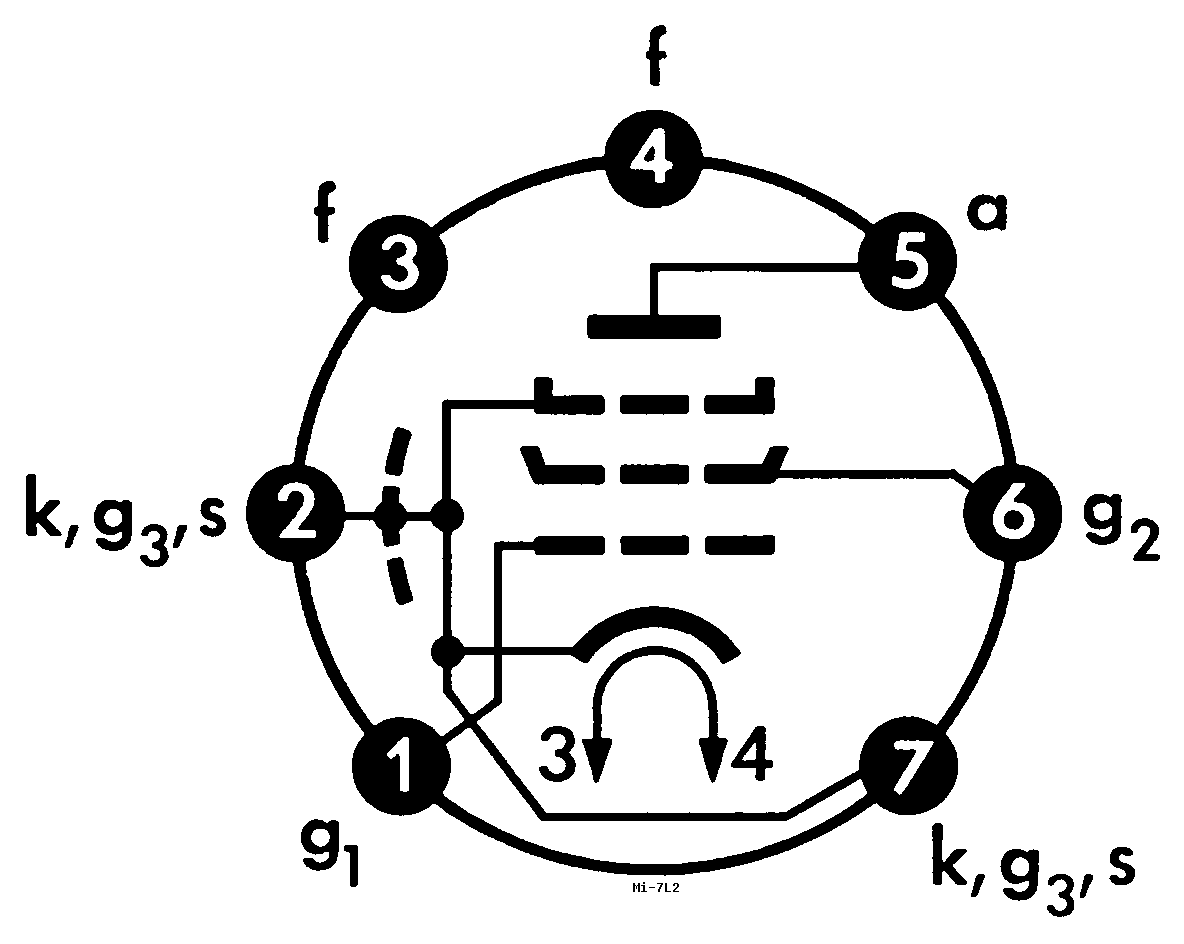

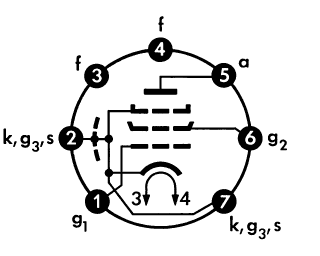

Mi-7L2
5654 EF95 EF96
Mi-7L2

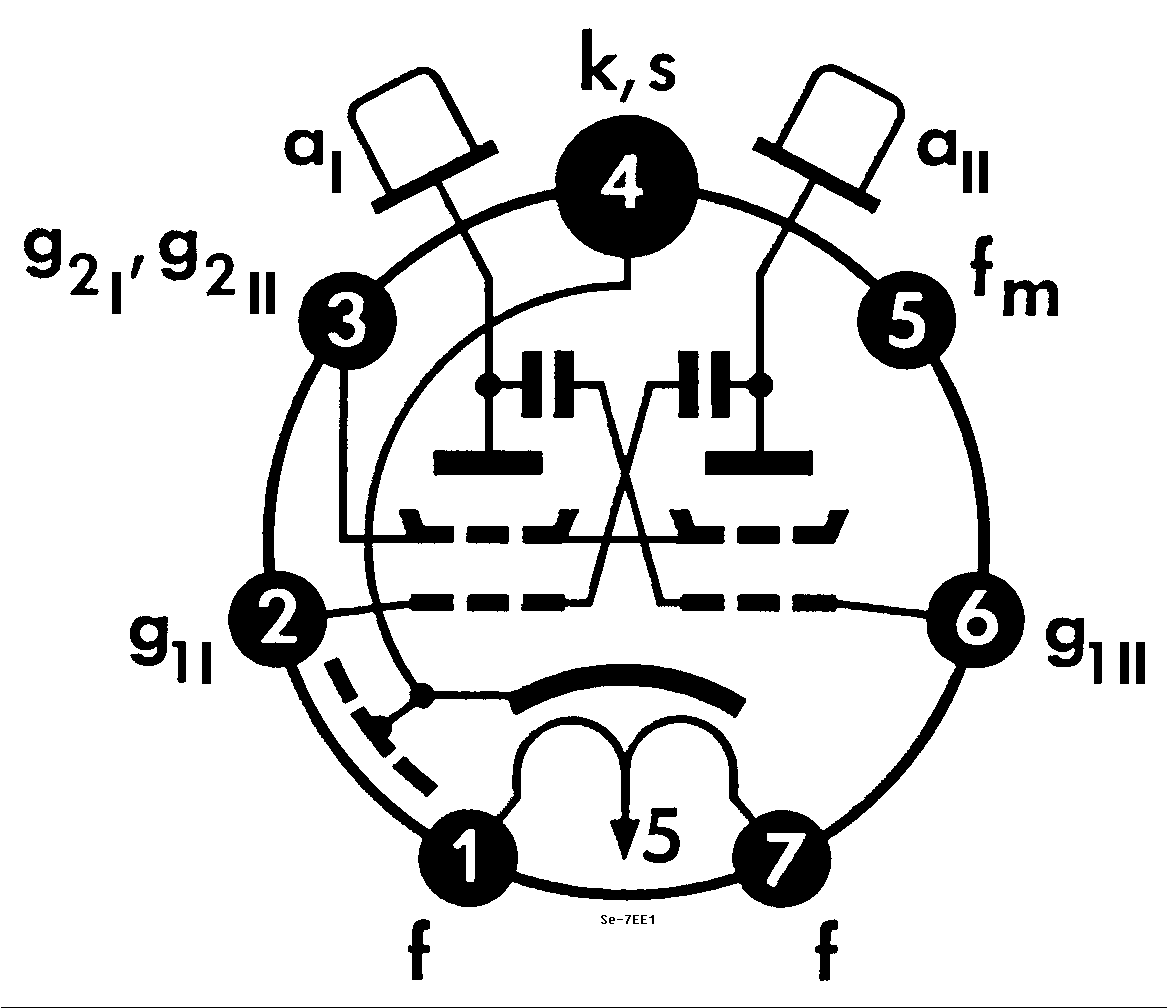

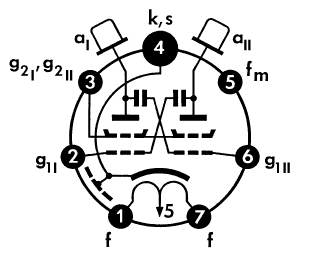

Se-7EE1
5894 6252 QQE03/20 QQE03/32 QQE04/20 QQE06/40 YL1060 YL1070 YL1071
Se-7EE1

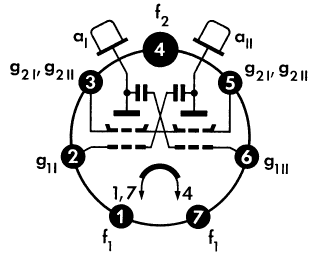

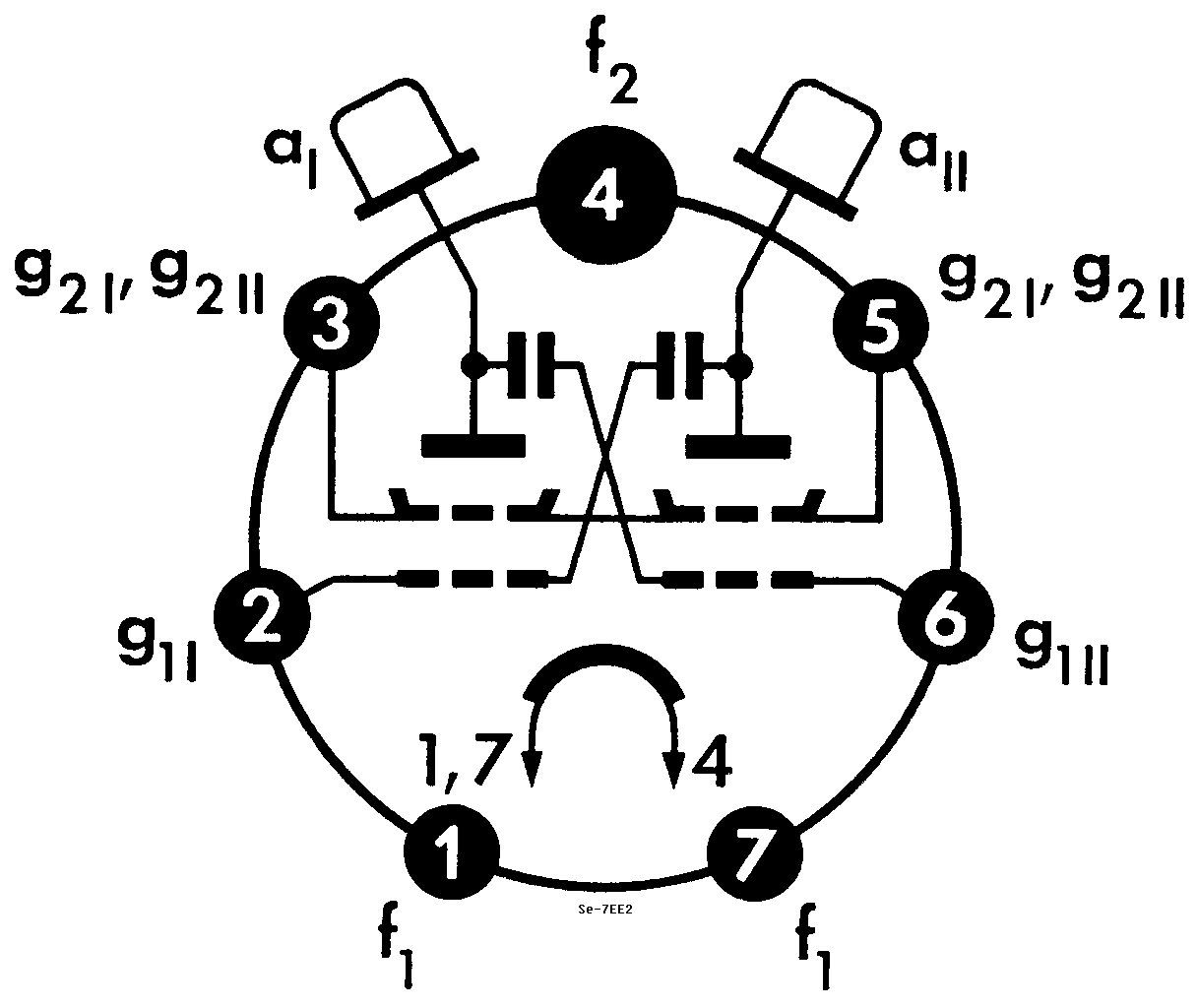

Se-7EE2
YL1020 YL1030
Se-7EE2

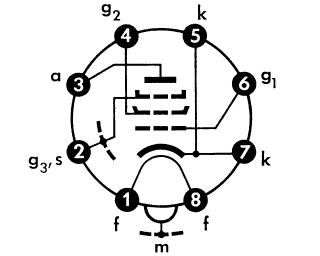

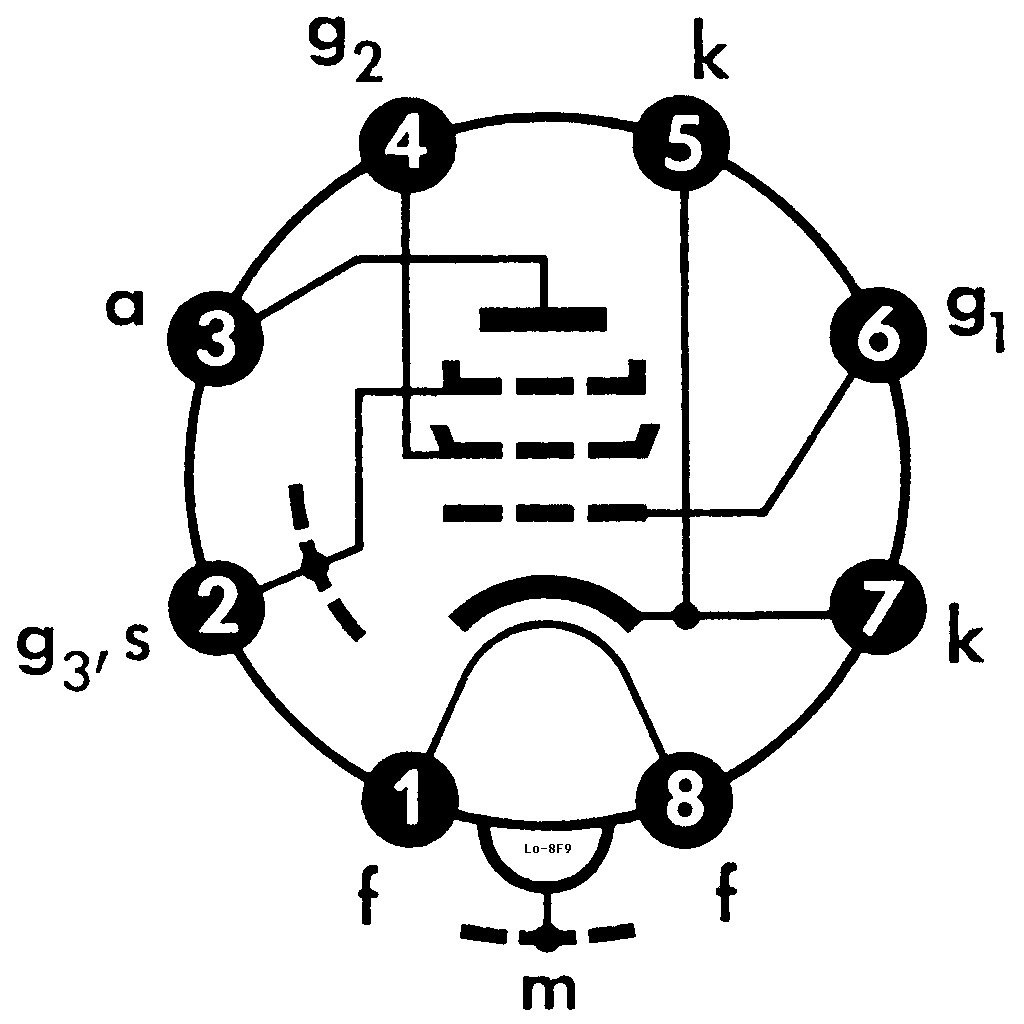

Lo-8F9
C3g C3m
Lo-8F9

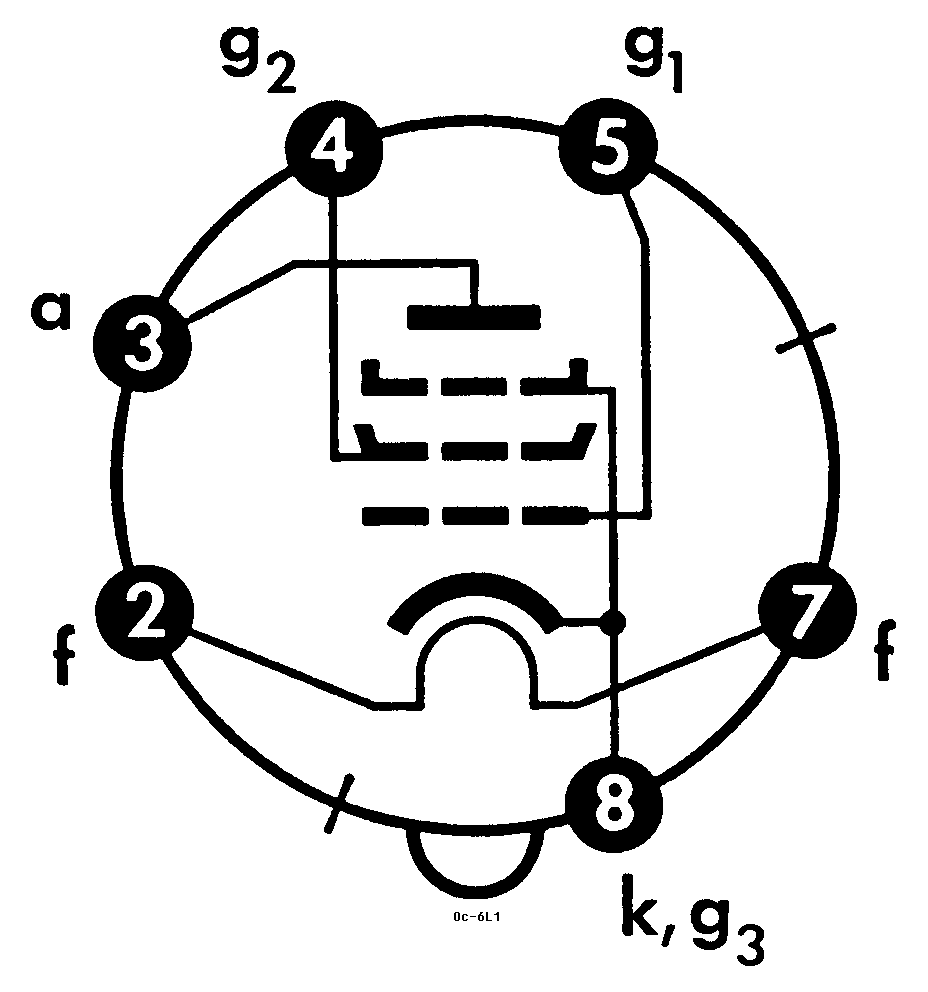

Oc-6L1
7561
Oc-6L1

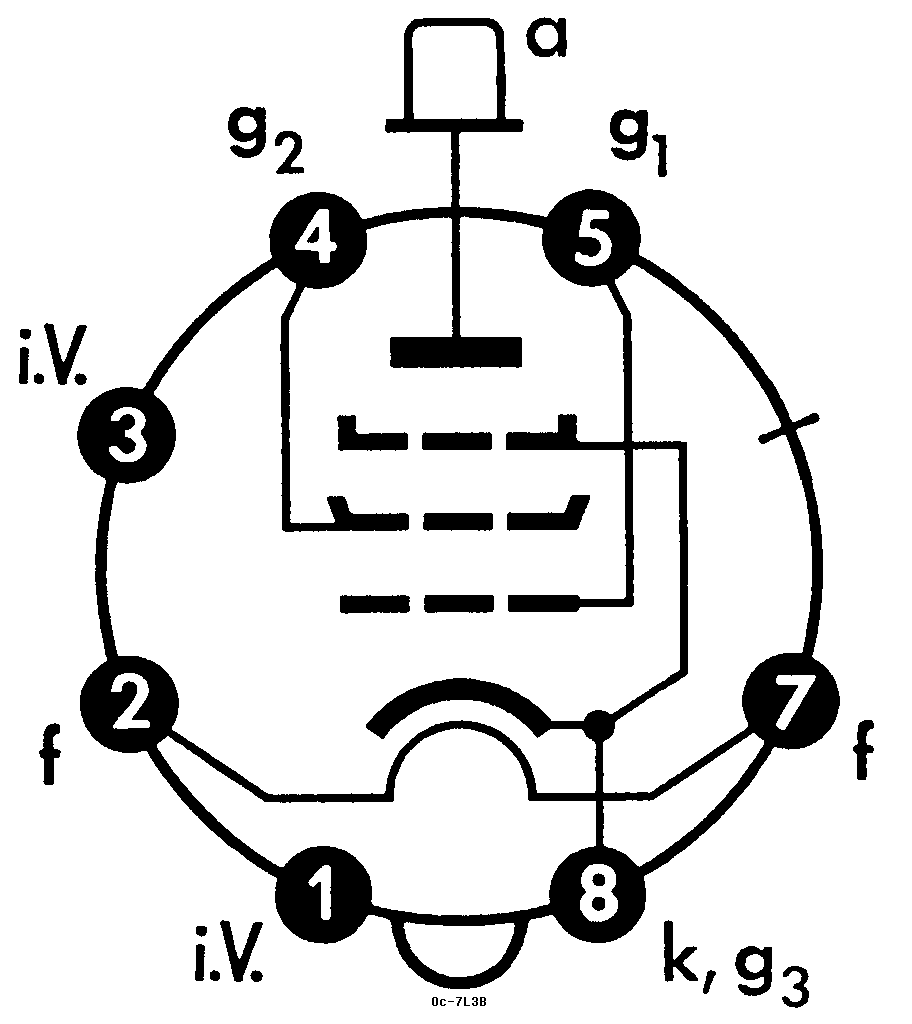

Oc-7L3B
EL360
Oc-8L8

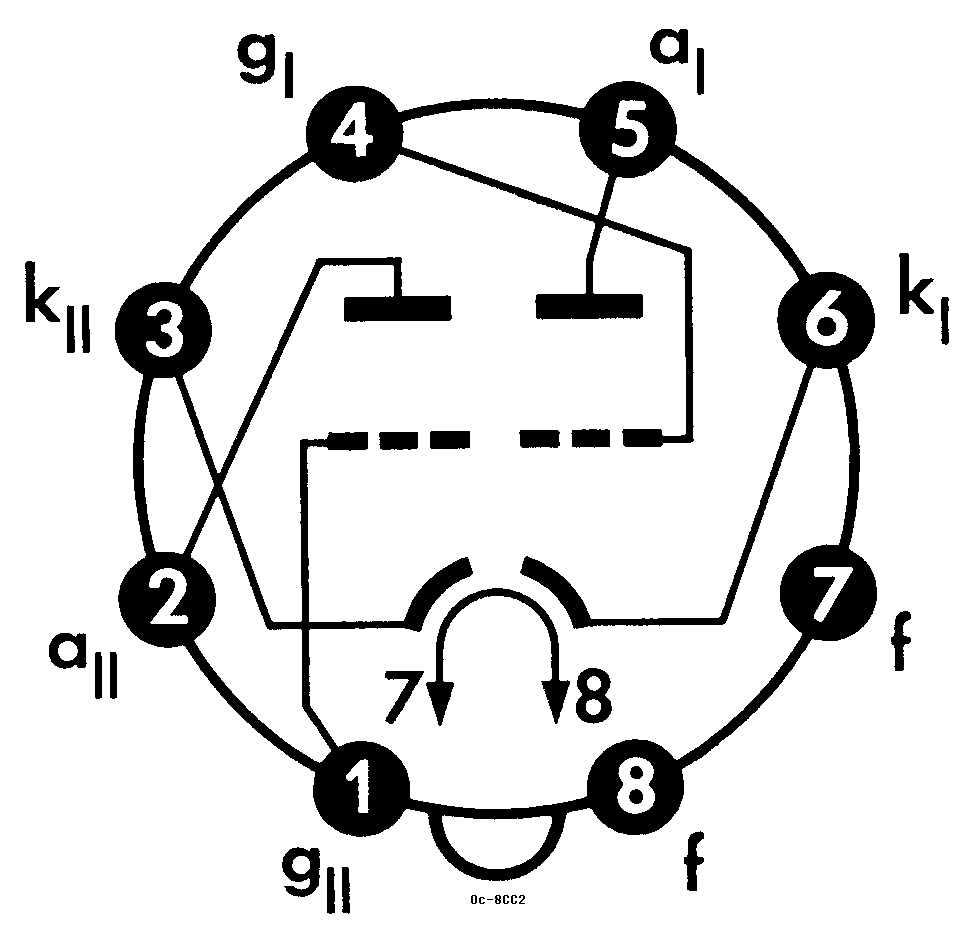

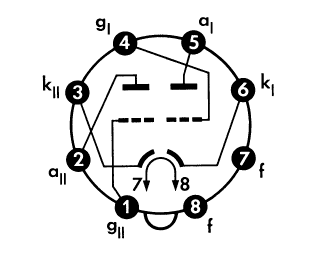

Oc-8CC2
6080
Oc-8CC2

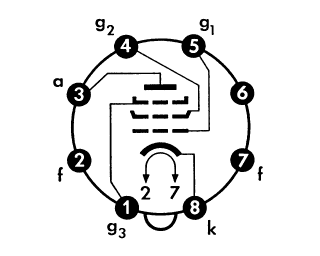

Oc-8F2
EL34
Oc-8F2

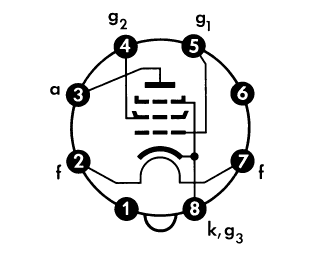

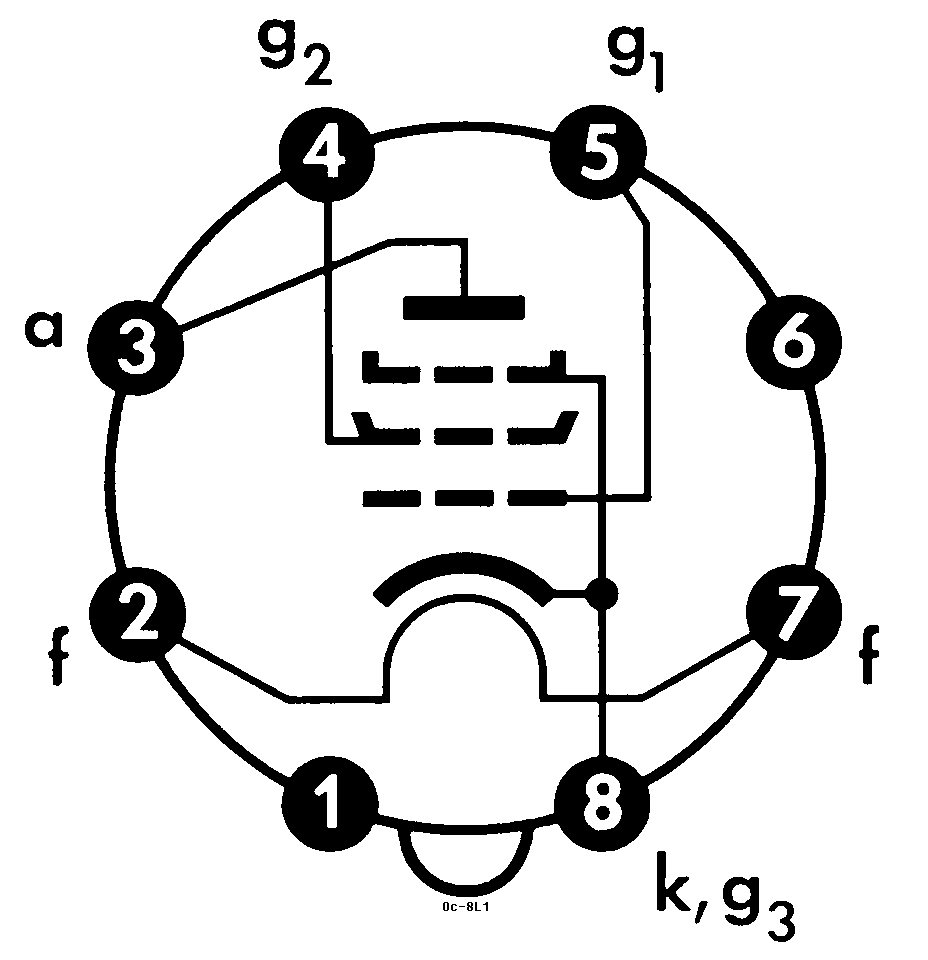

Oc-8L1
E235L
Oc-8L1

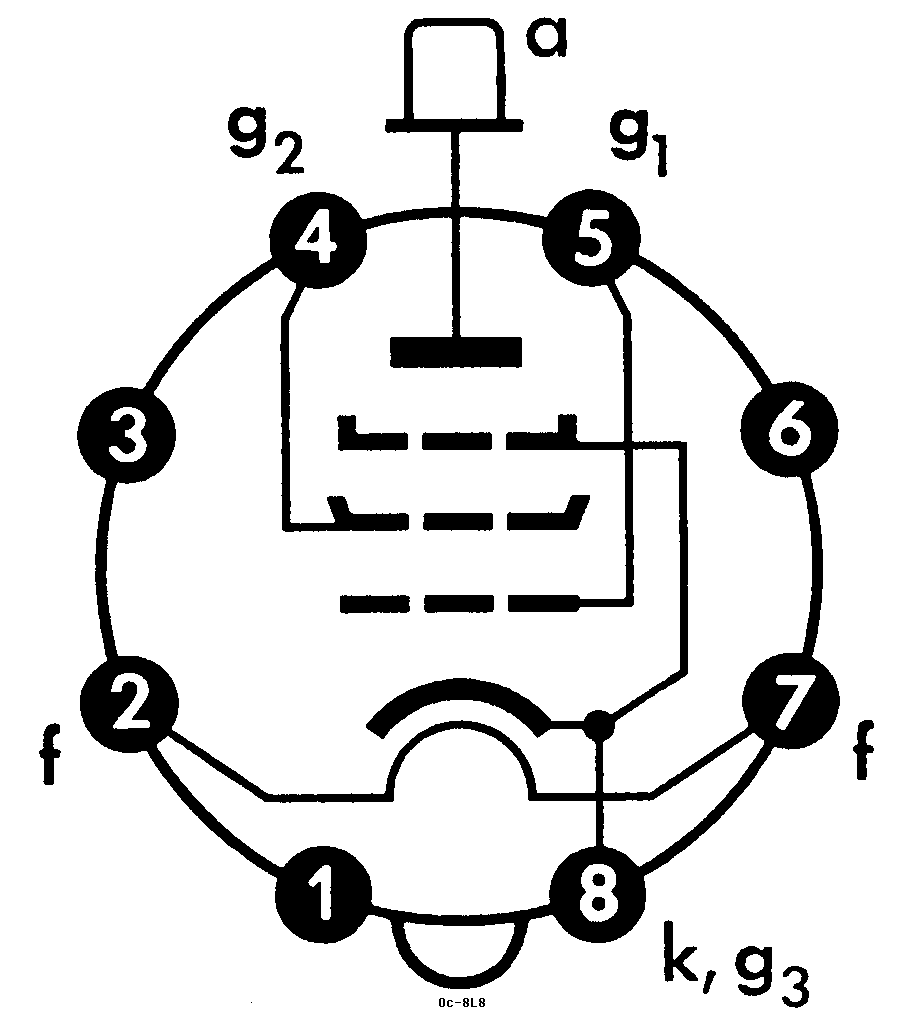

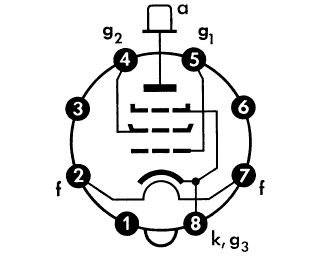

Oc-8L8
E130L E236L EL36
Oc-8L8

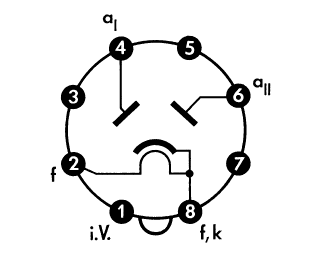

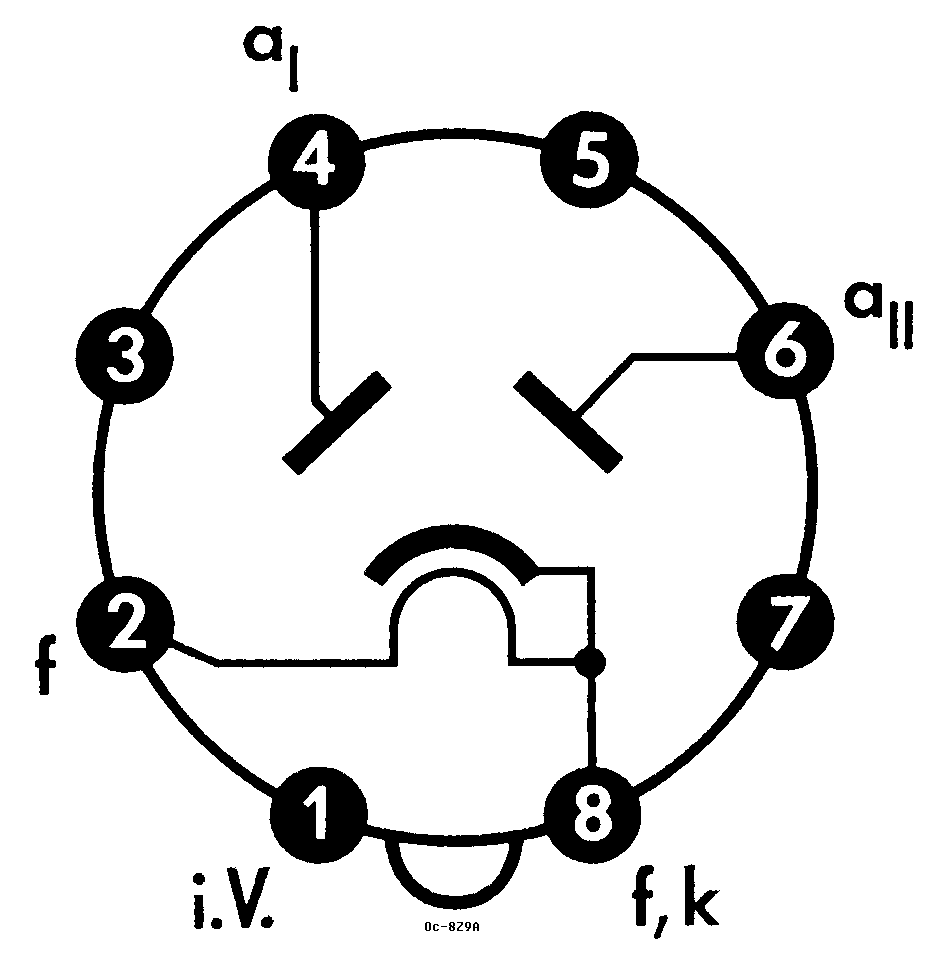

Oc-8Z9A
GZ34
Oc-8Z9A

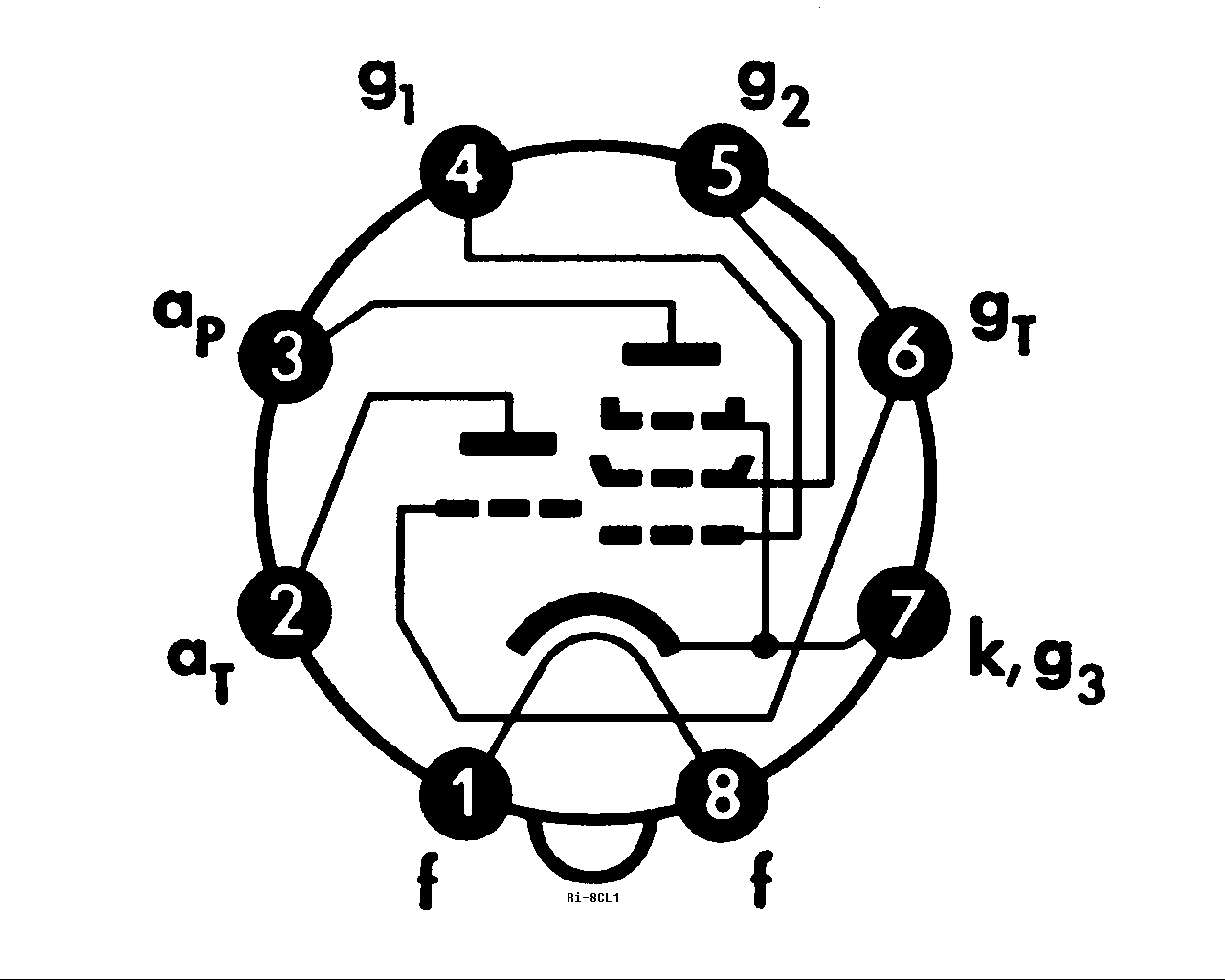

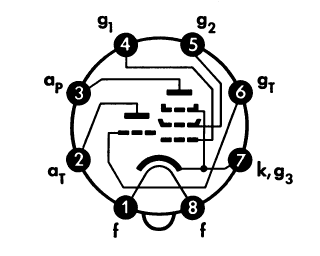

Ri-8CL1
ECL113
Ri-8CL1

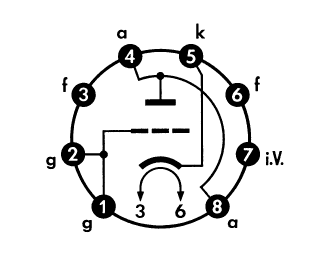

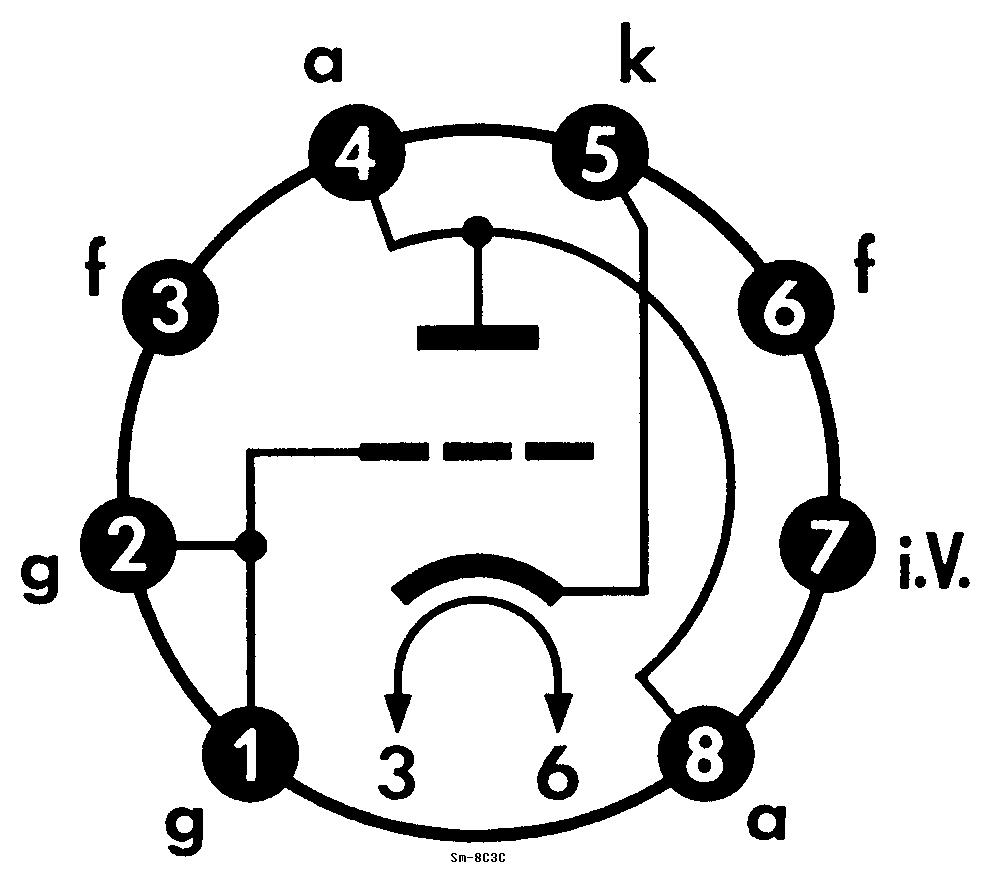

Sm-8C3C
6247
Sm-8C3C

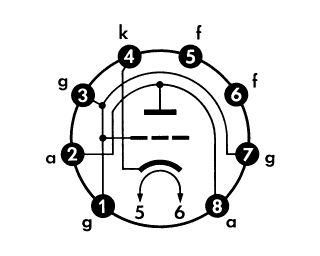

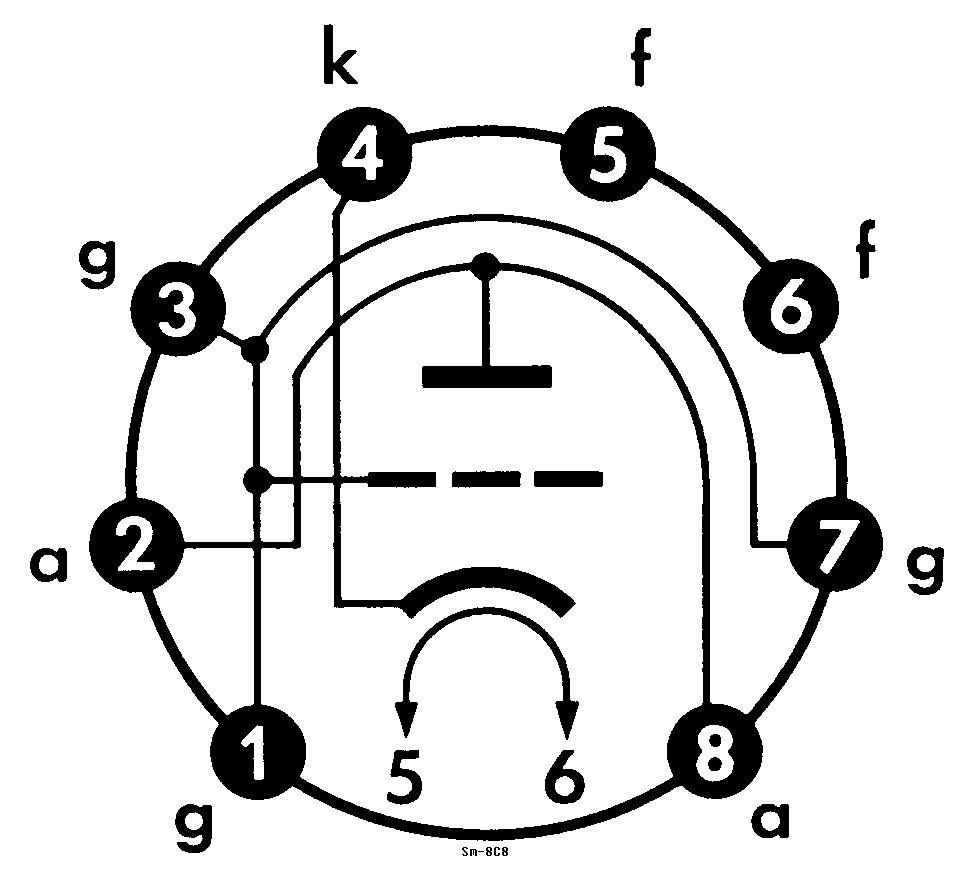

Sm-8C8
EC1030 EC1031
Sm-8C8

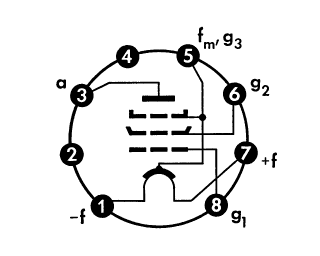

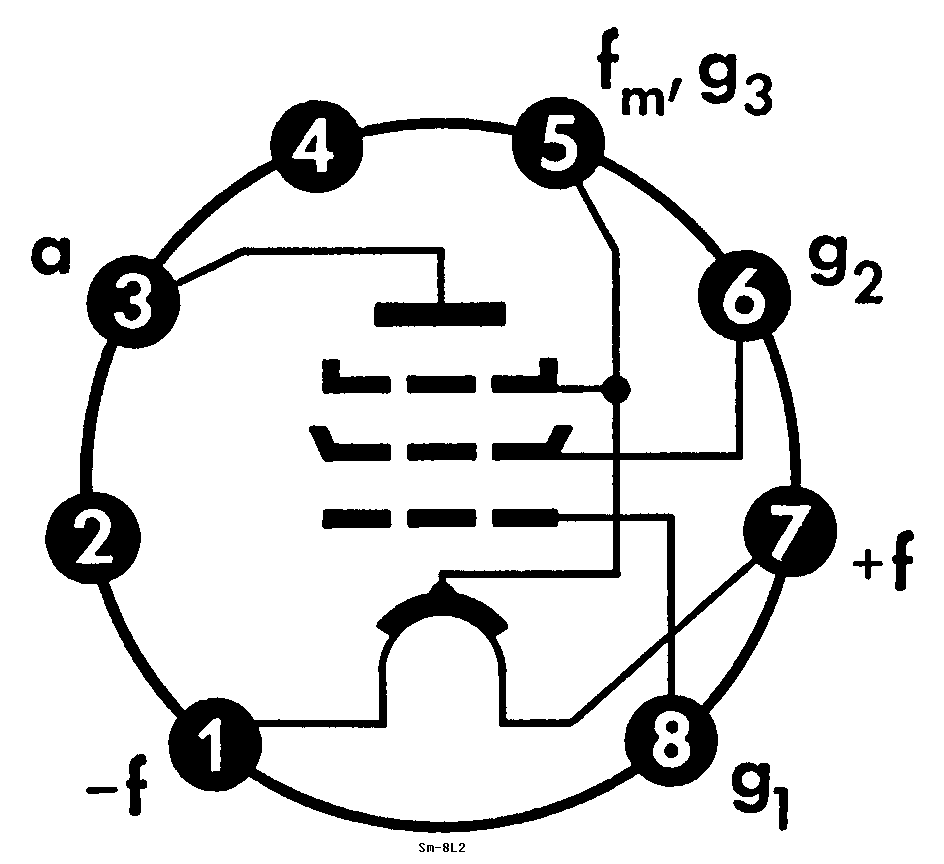

Sm-8L2
6397 6397 spez.
Sm-8L2

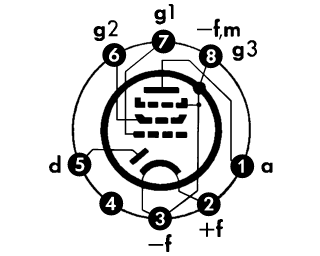

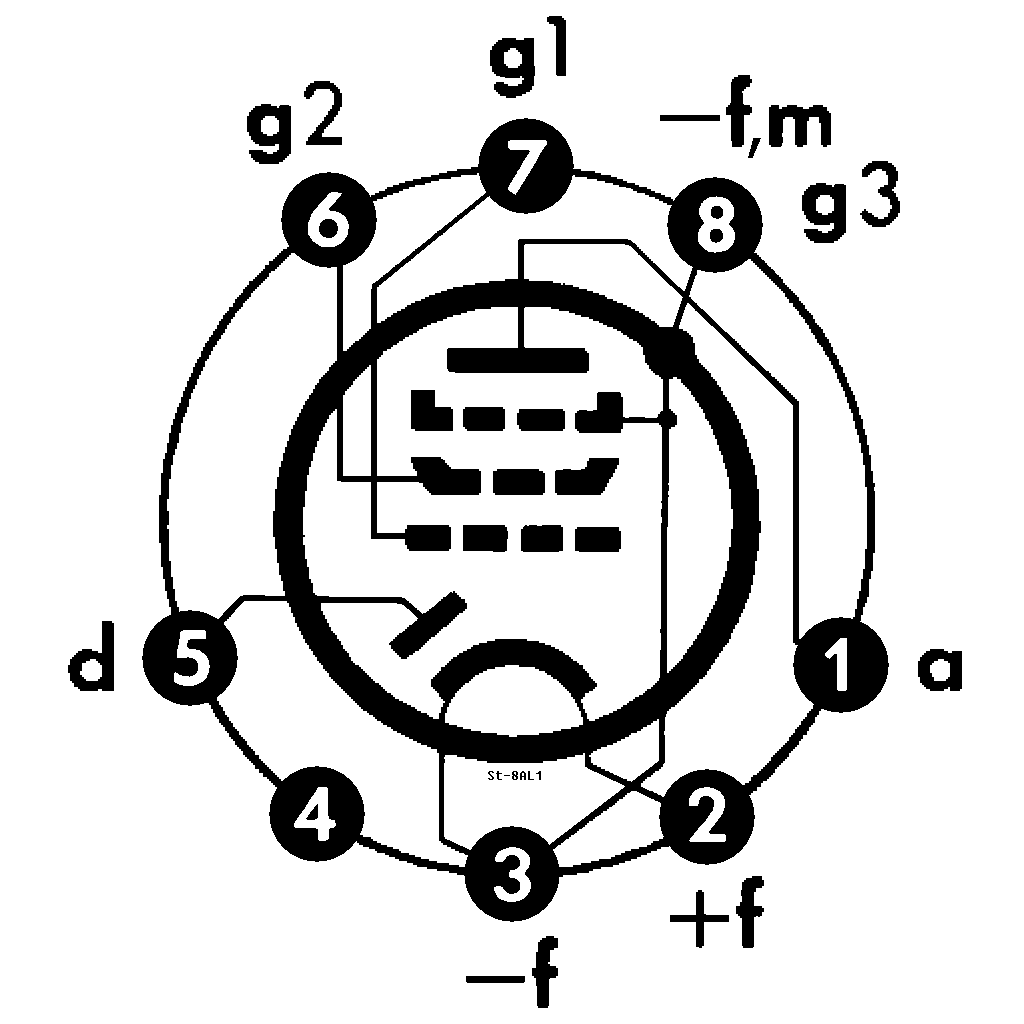

St-8AL1
DAF11
St-8AL1

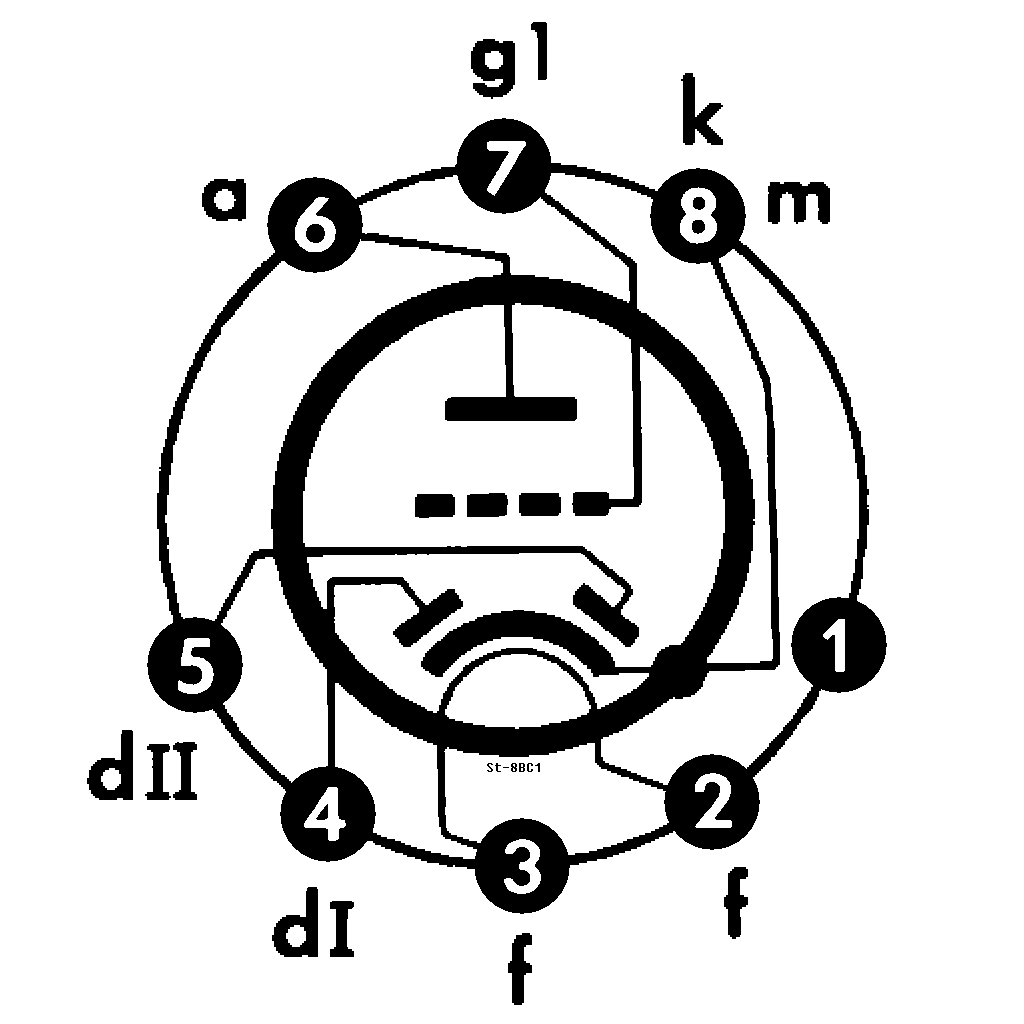

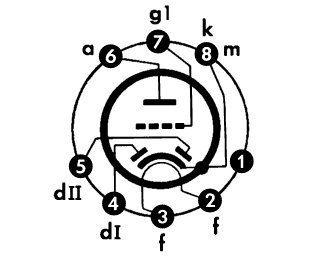

St-8BC1
EBC11
St-8BC1

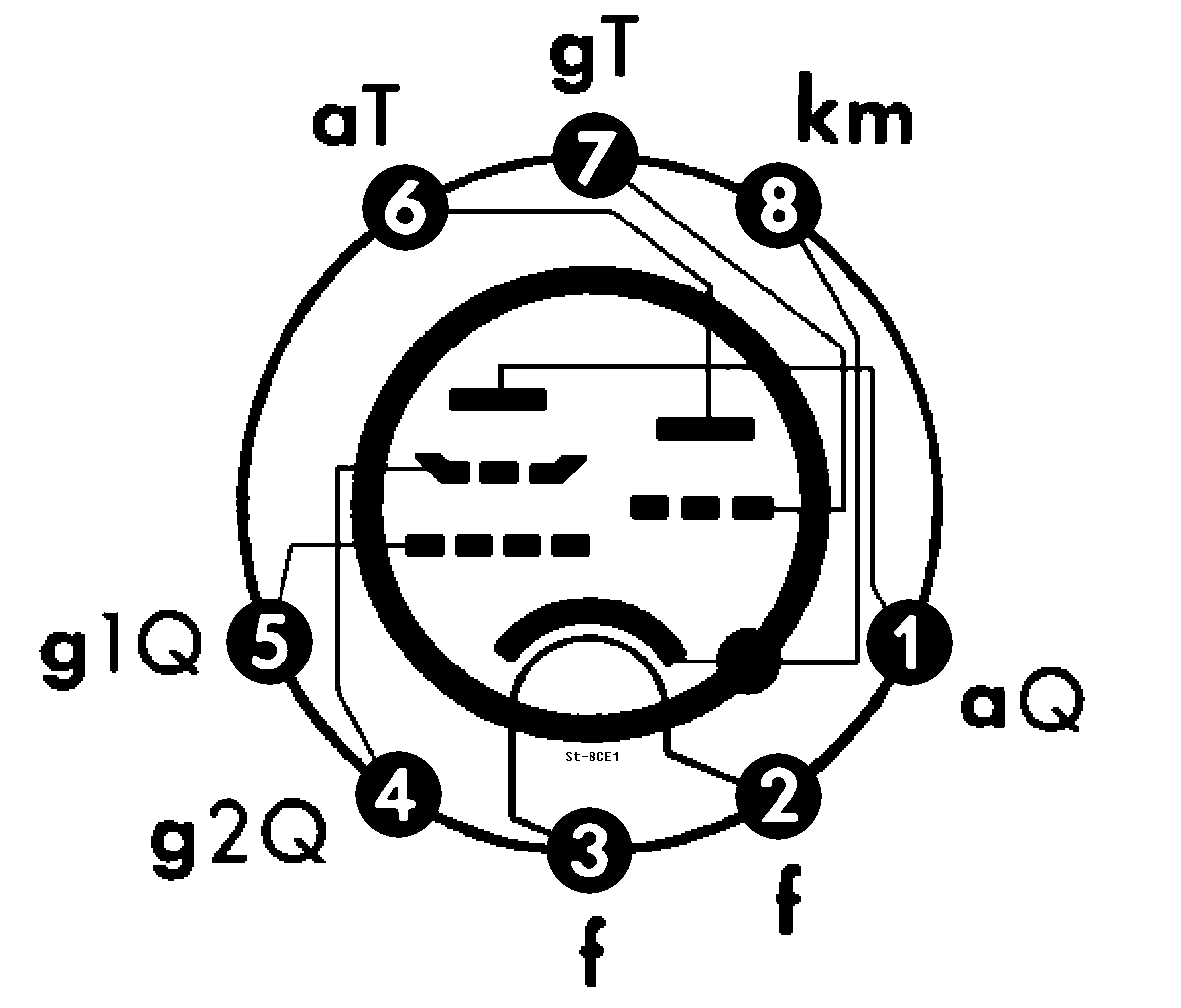

St-8CE1
ECL11 UCL11 VCL11

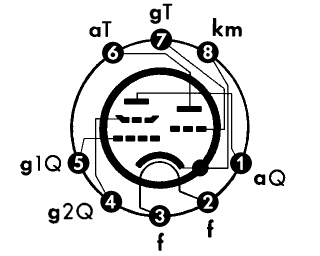

St-8CE1

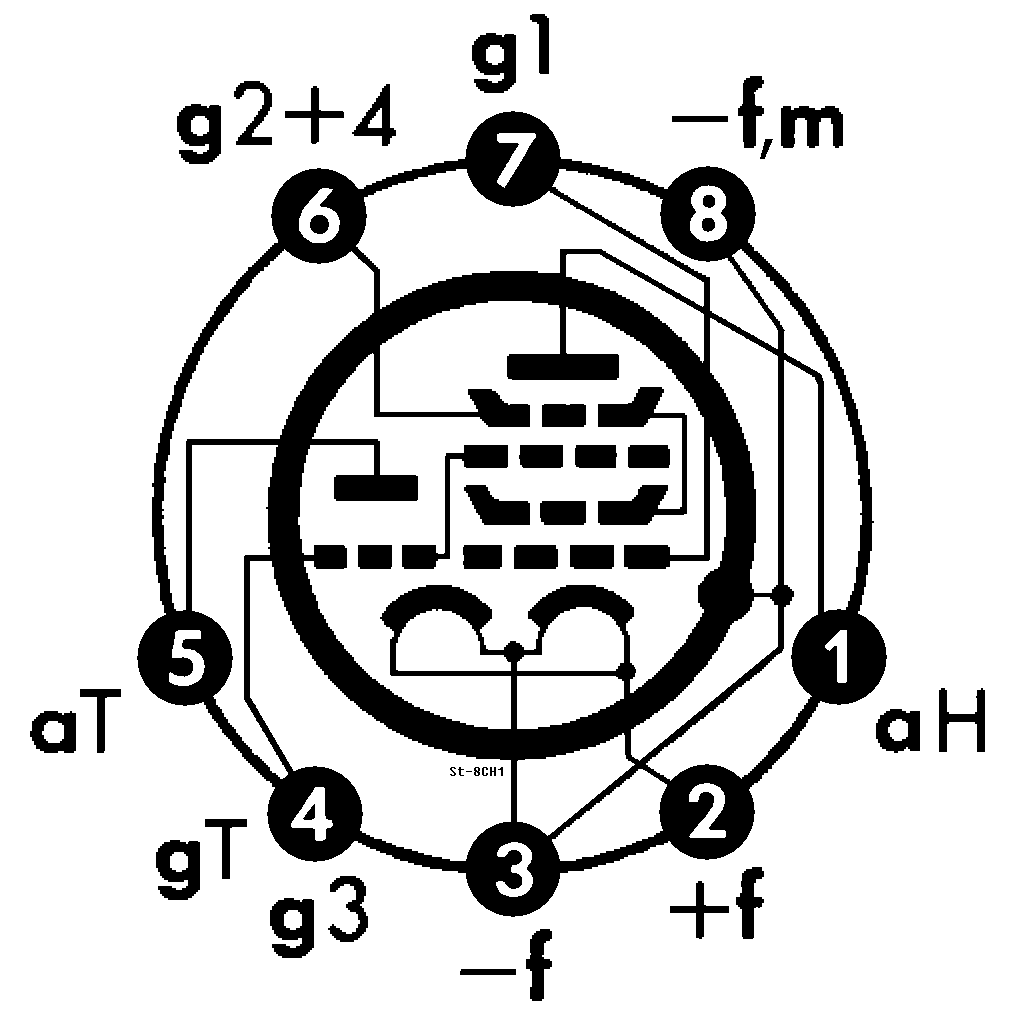

St-8CH1
DCH11
St-8CH1

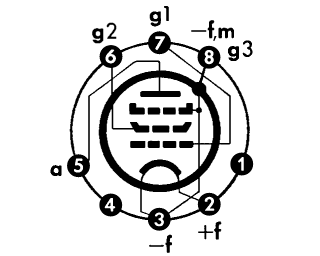

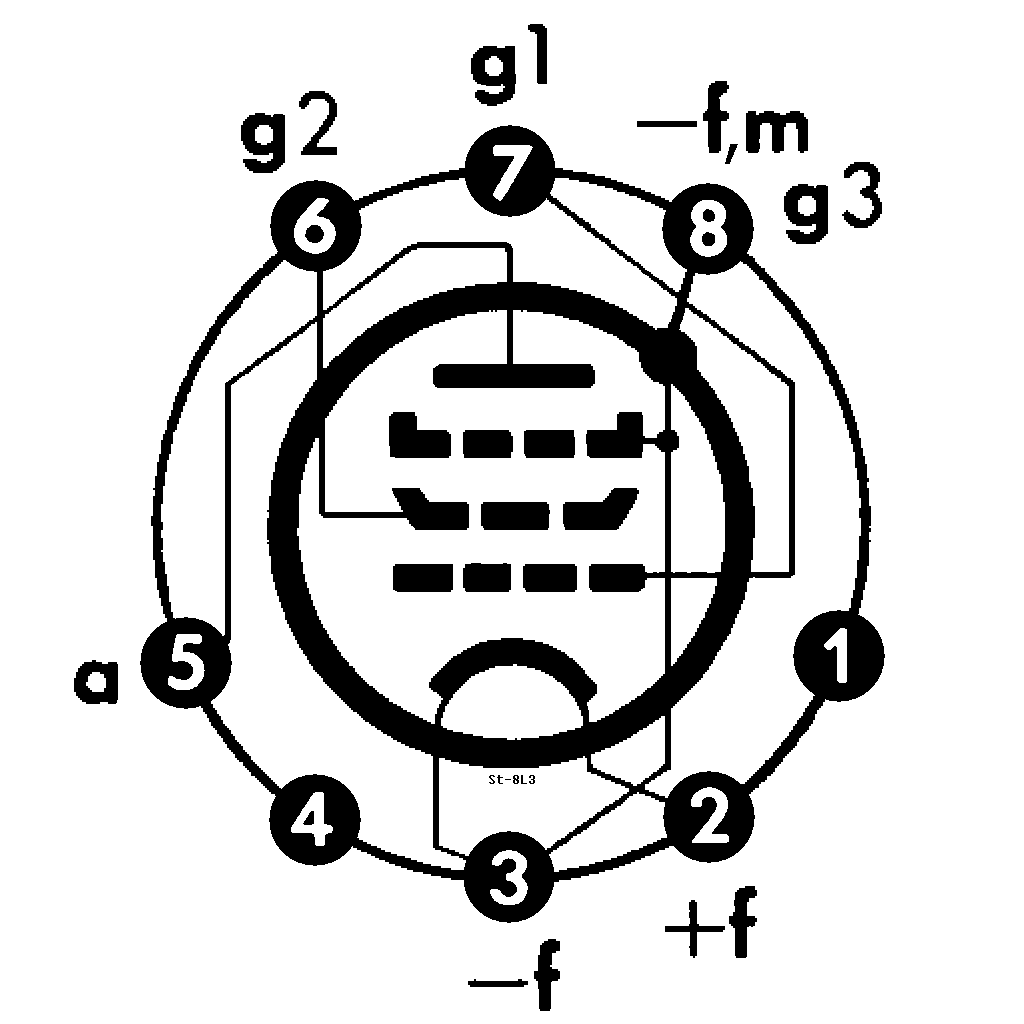

St-8L3
DF11 DL11
St-8L3

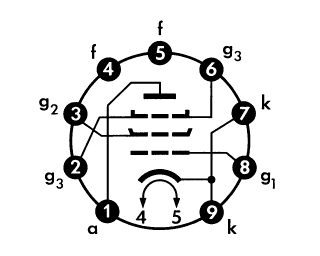

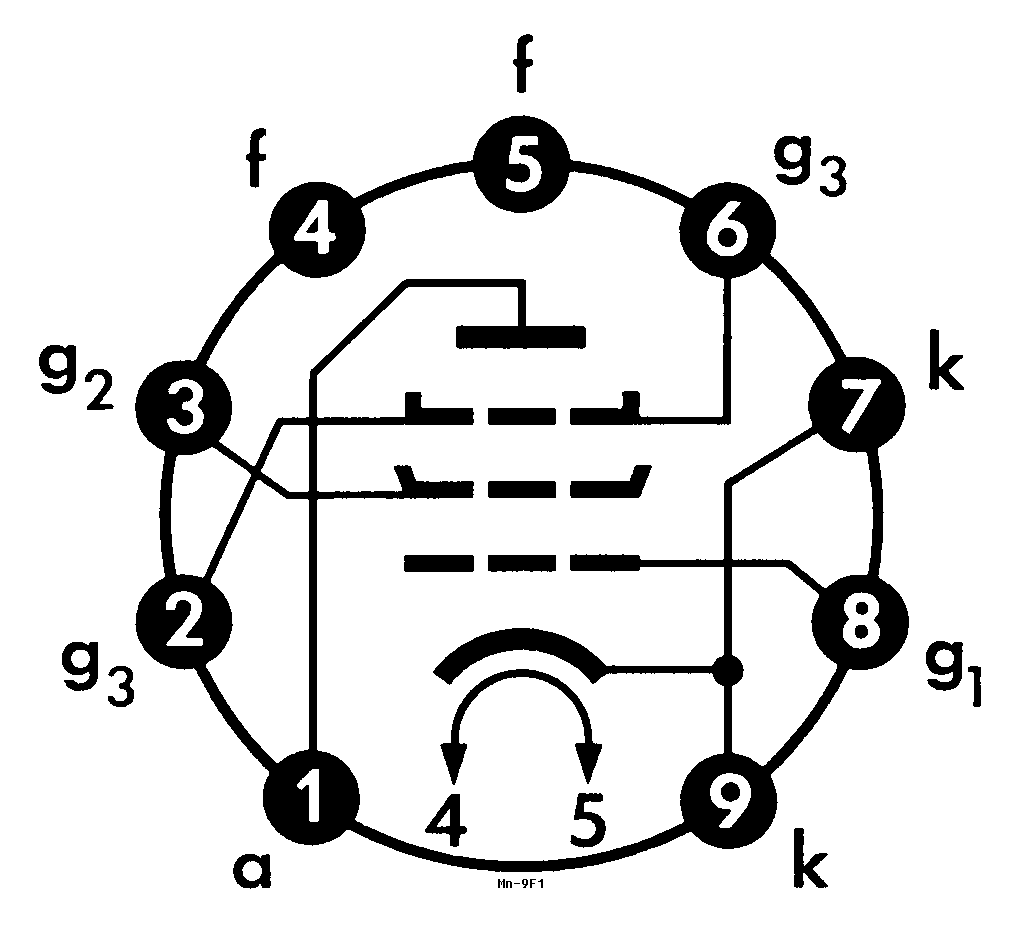

Mn-9F1
E55L
Mn-9F1

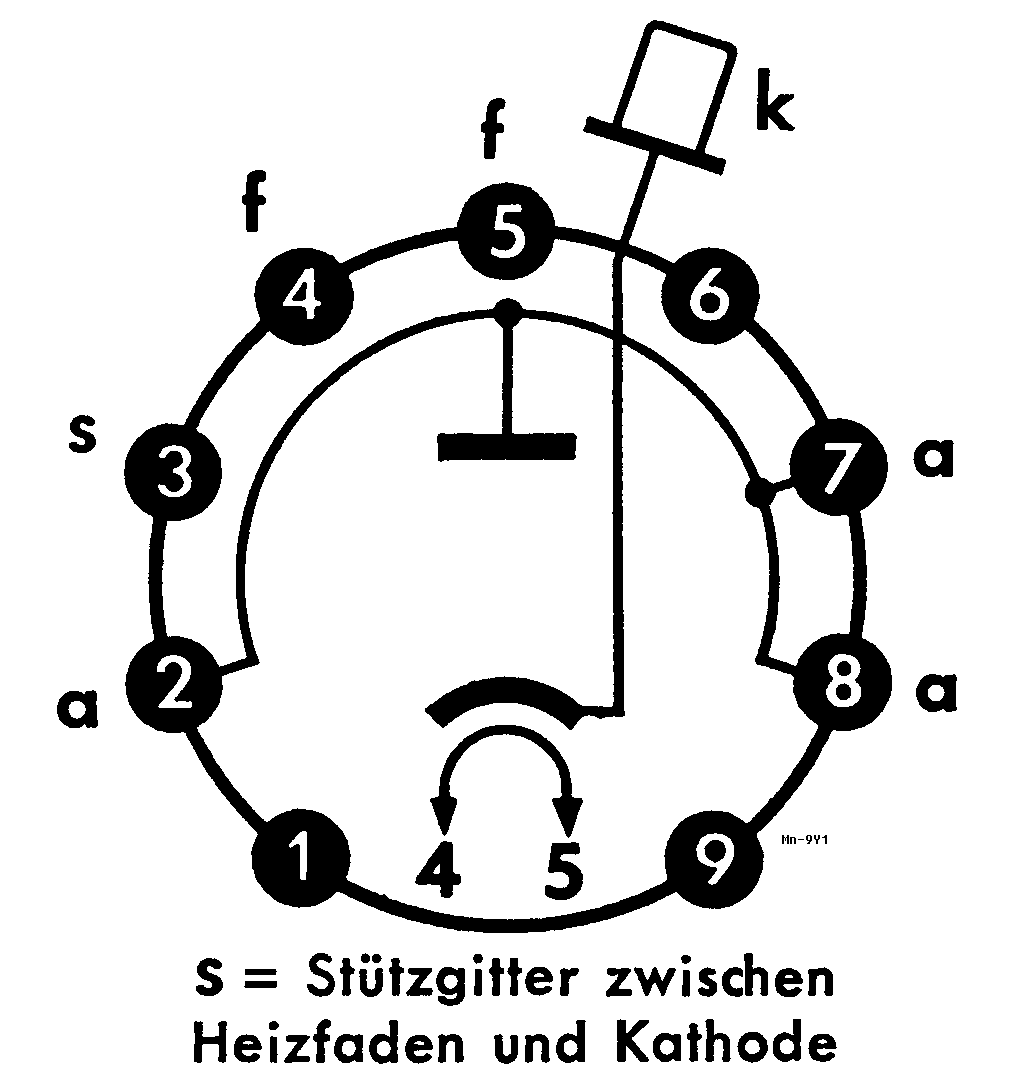

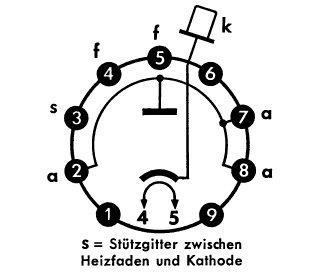

Mn-9Y1
EY500 PY500
Mn-9Y1

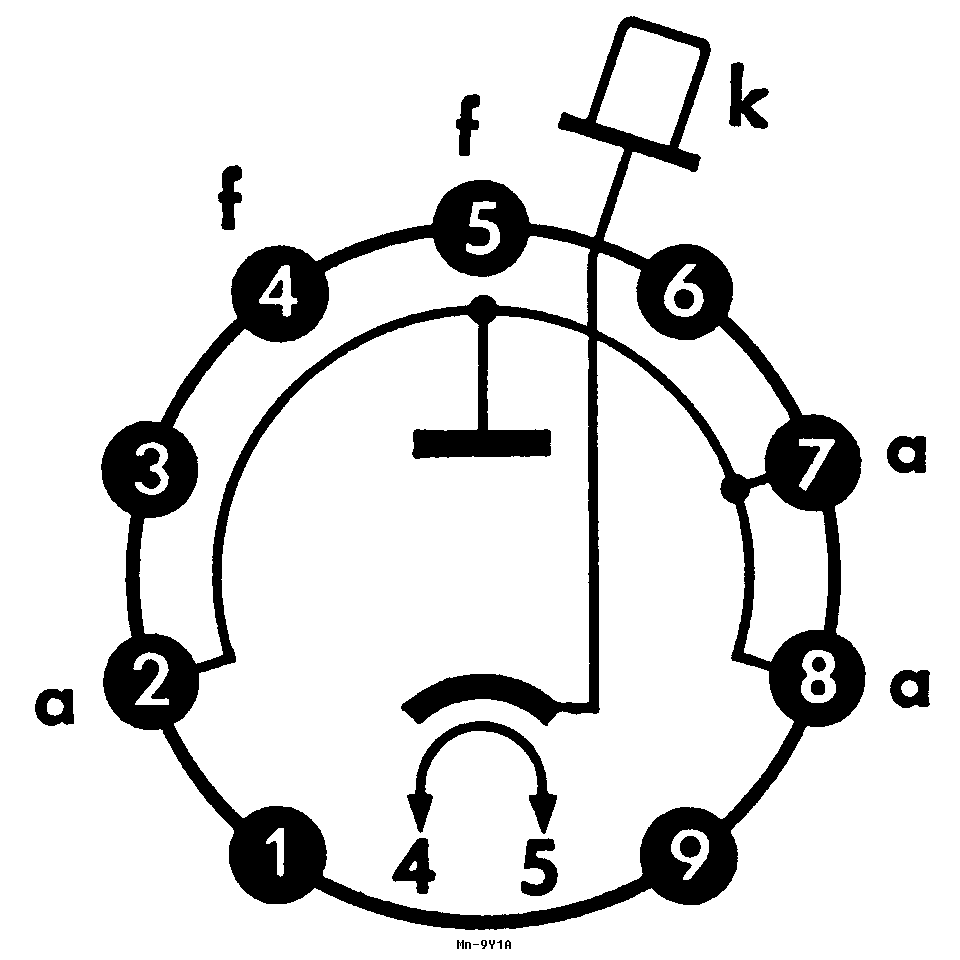

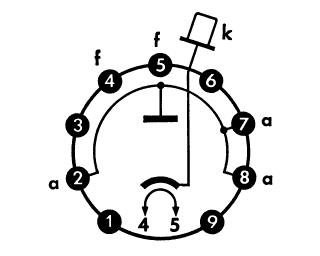

Mn-9Y1A
EY500A PY500A
Mn-9Y1A

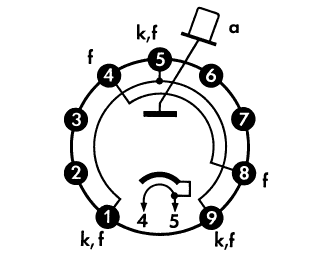

Mn-9Y2
GY501
Mn-9Y2

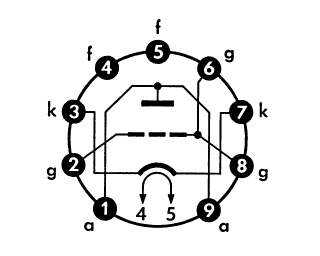

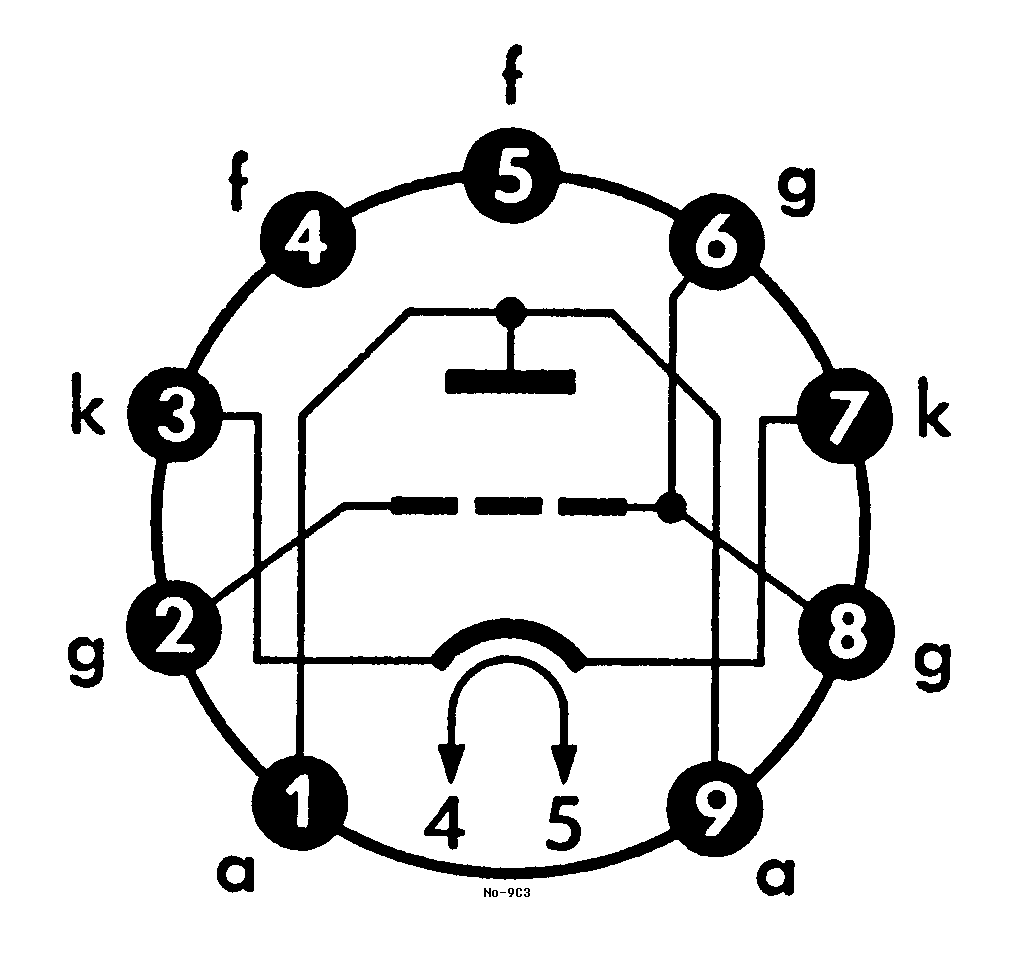

No-9C3
E86C EC86 EC806S EC866 PC86
No-9C3

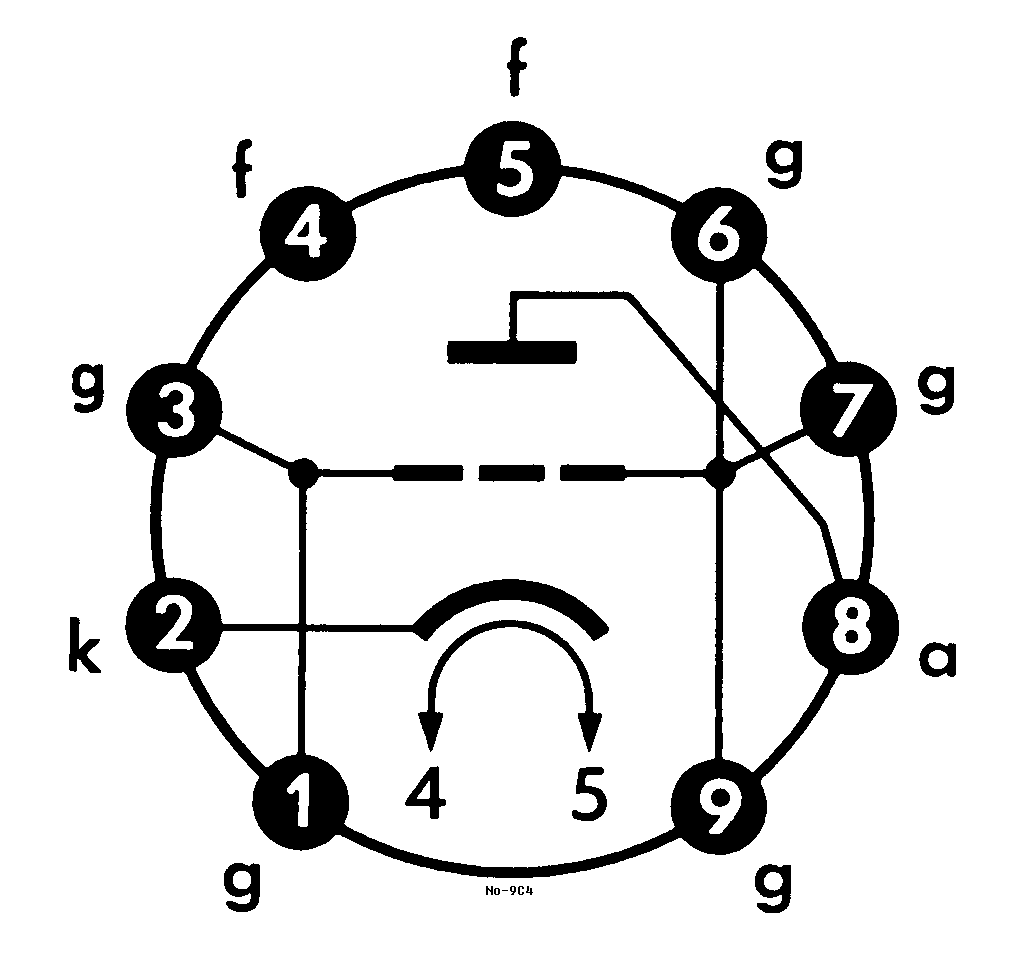

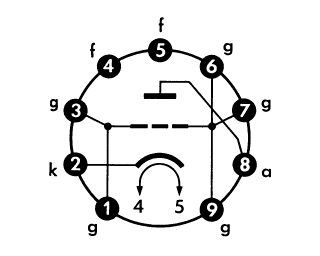

No-9C4
E88C EC88 EC8010 EC8020 PC88
No-9C4

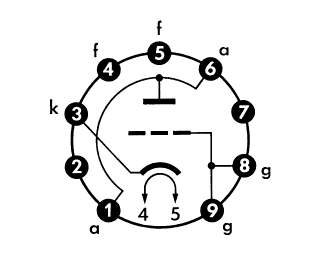

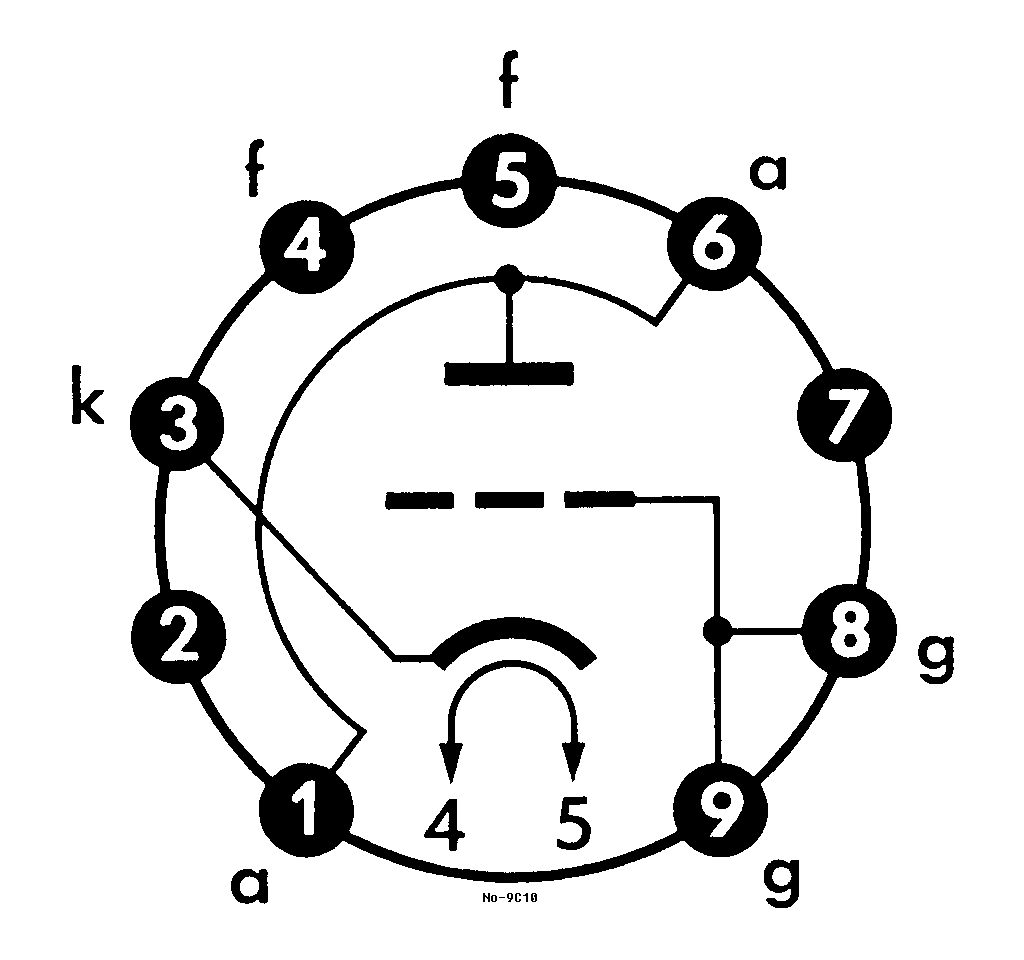

No-9C10
ED8000
No-9C10

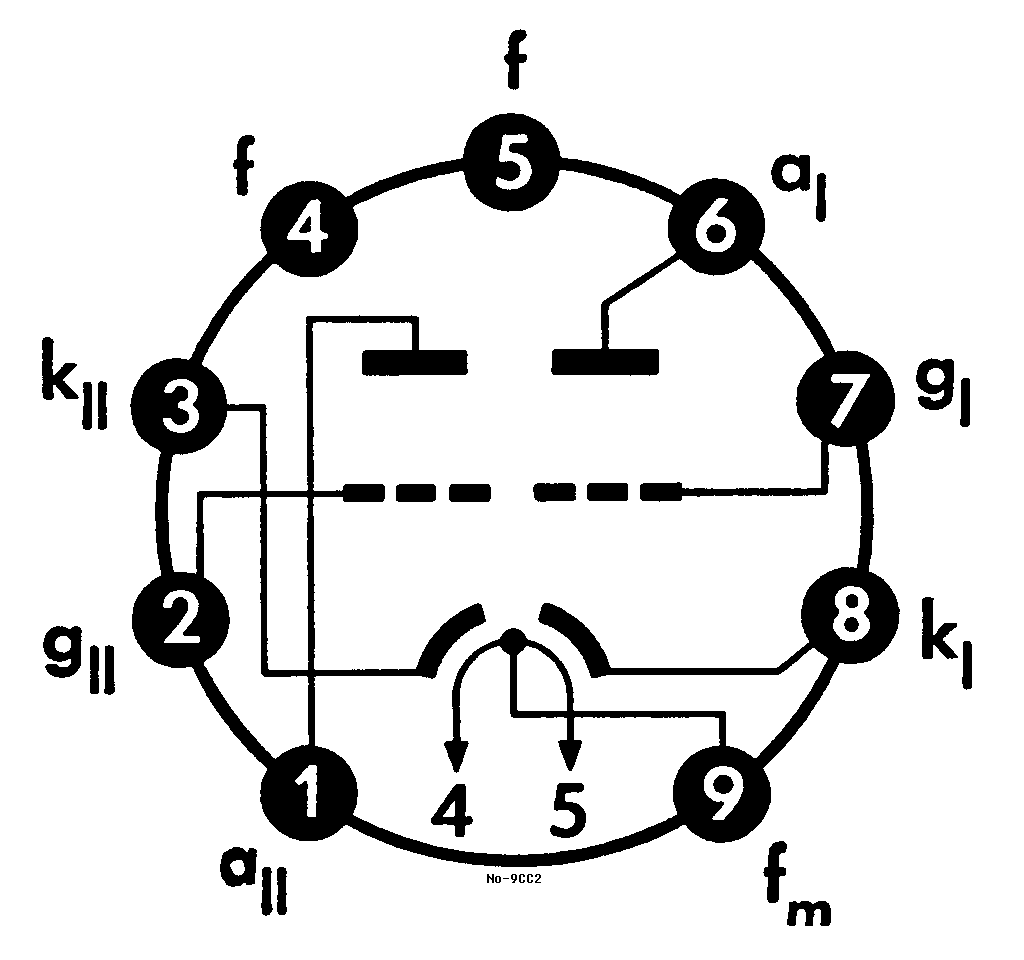

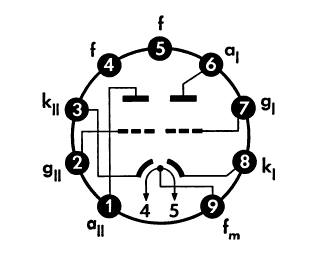

No-9CC2
5751 5814A 5963 5965 6158 6201 6211 7025 7247 E81CC E82CC E83CC E180CC E181CC ECC81 ECC82 ECC83 ECC186 ECC801S ECC802S ECC803S
No-9CC2

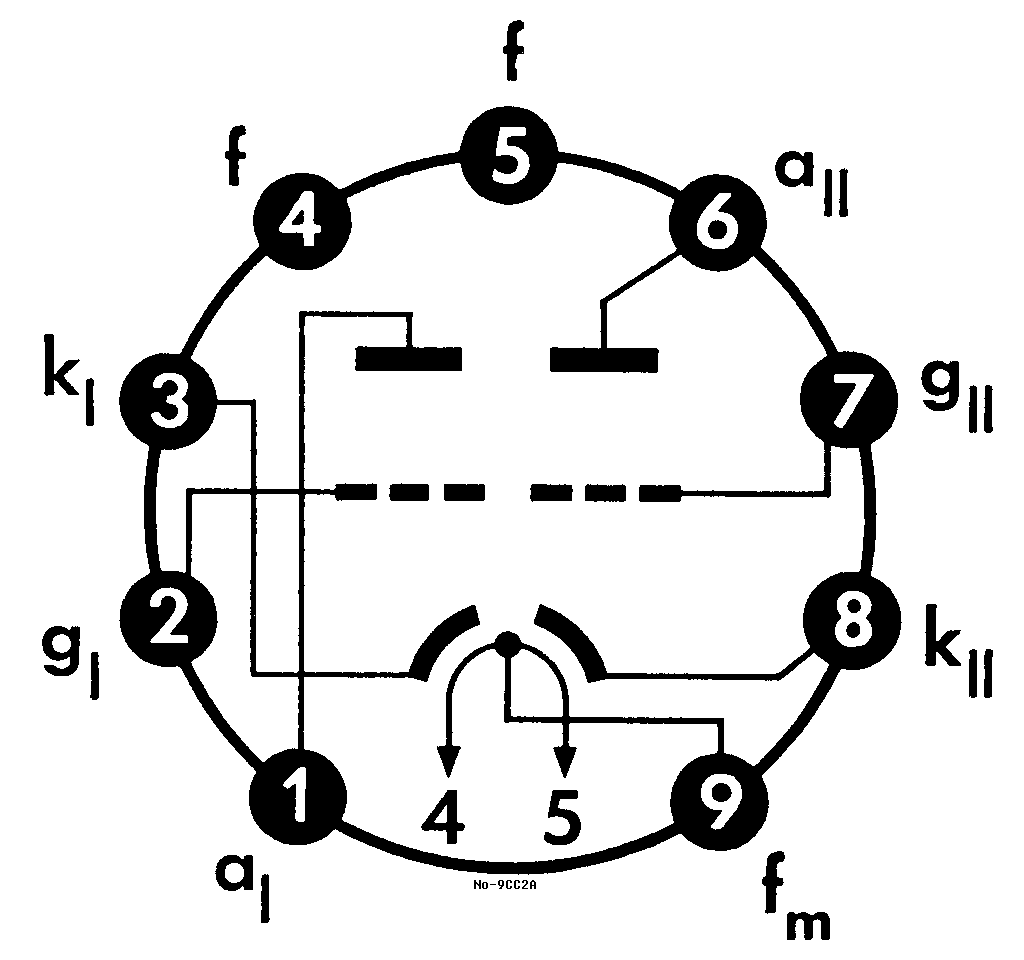

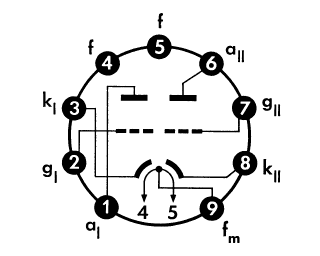

No-9CC2A
E80CC
No-9CC2A

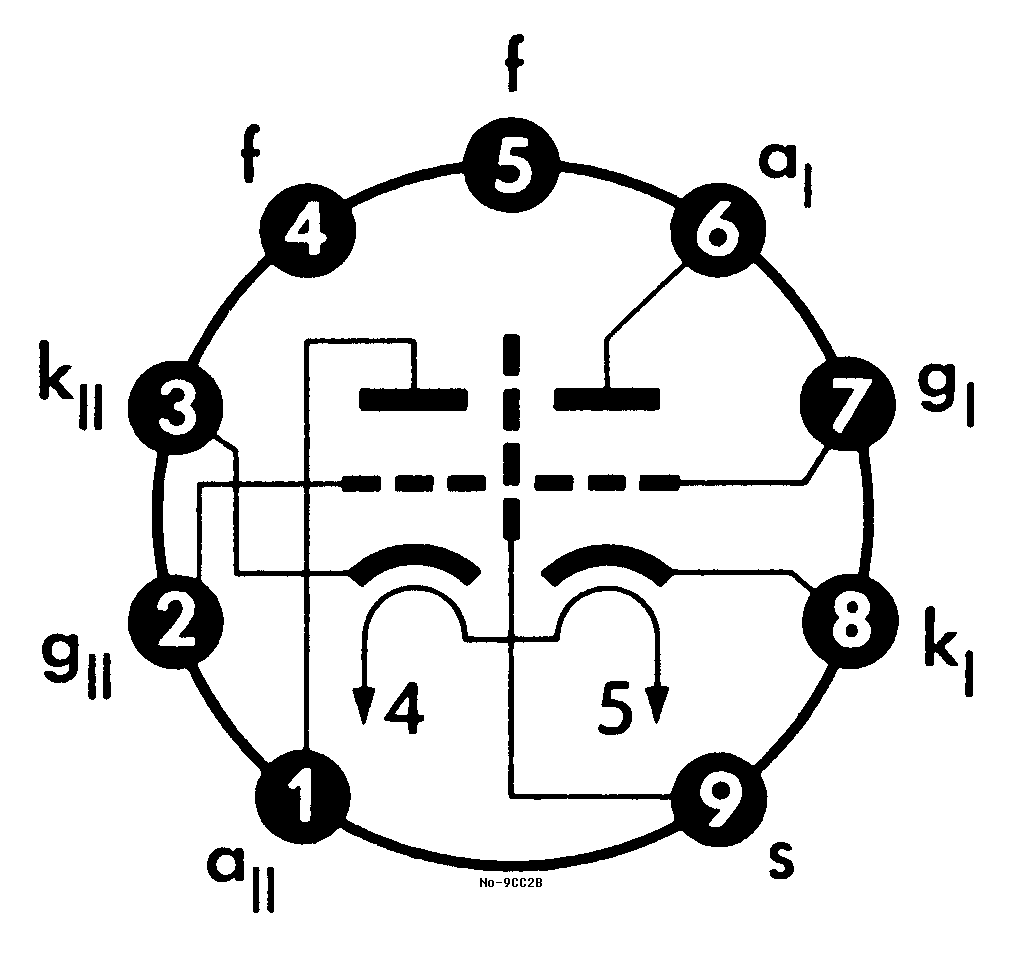

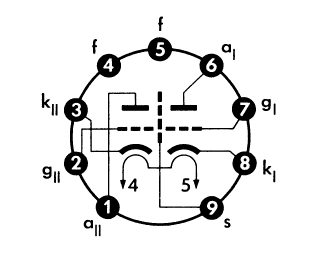

No-9CC2B
CCa E88CC E188CC E288CC ECC85 ECC86 ECC88 ECC189 ECC804 ECC812 ECC865 PCC85 PCC88 PCC189
No-9CC2B

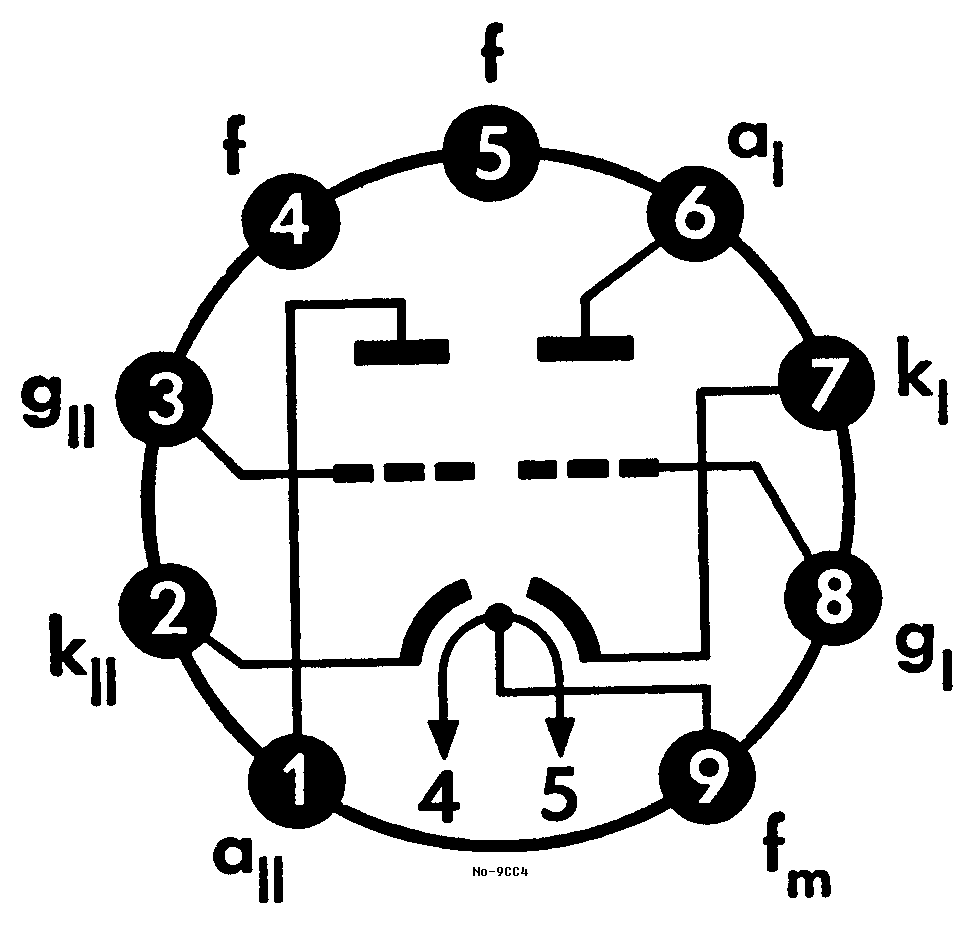

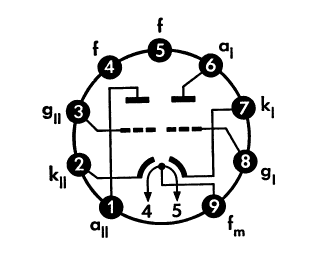

No-9CC4
6463 ECC813
No-9CC4

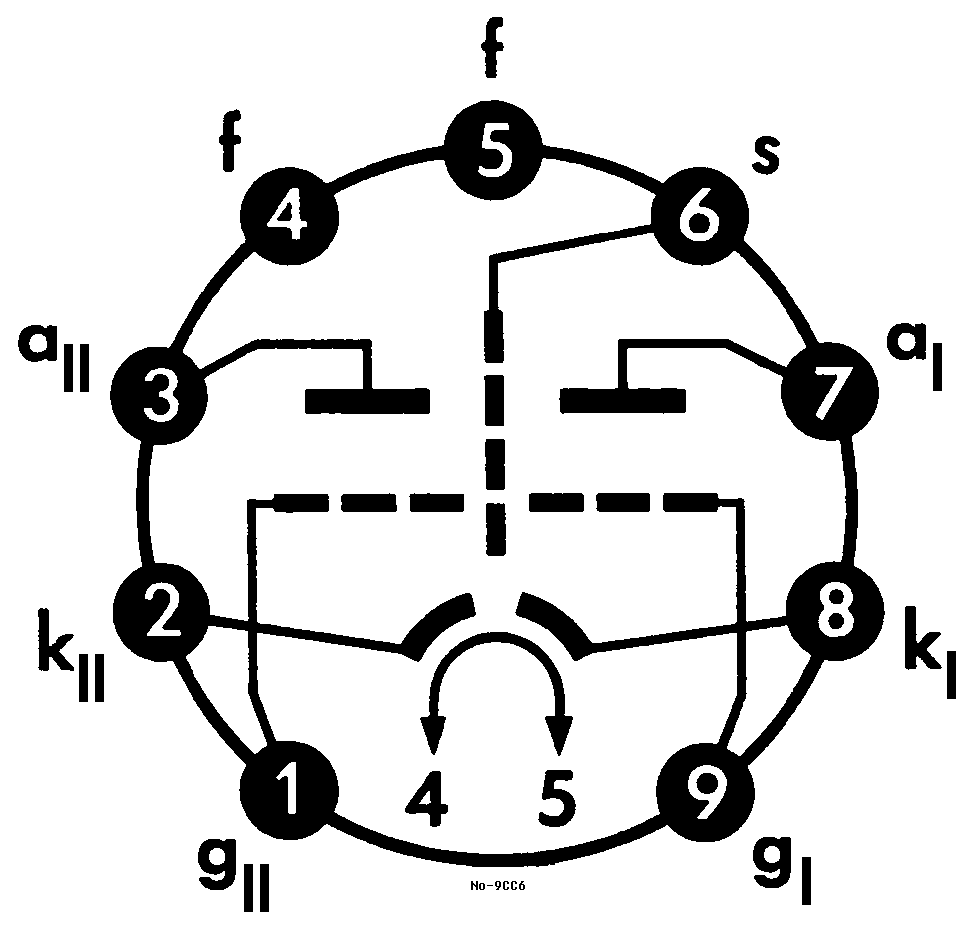

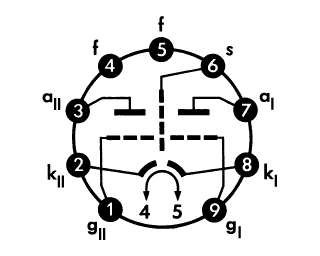

No-9CC6
ECC808
No-9CC6

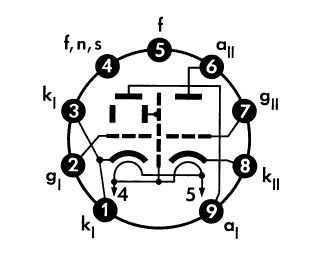

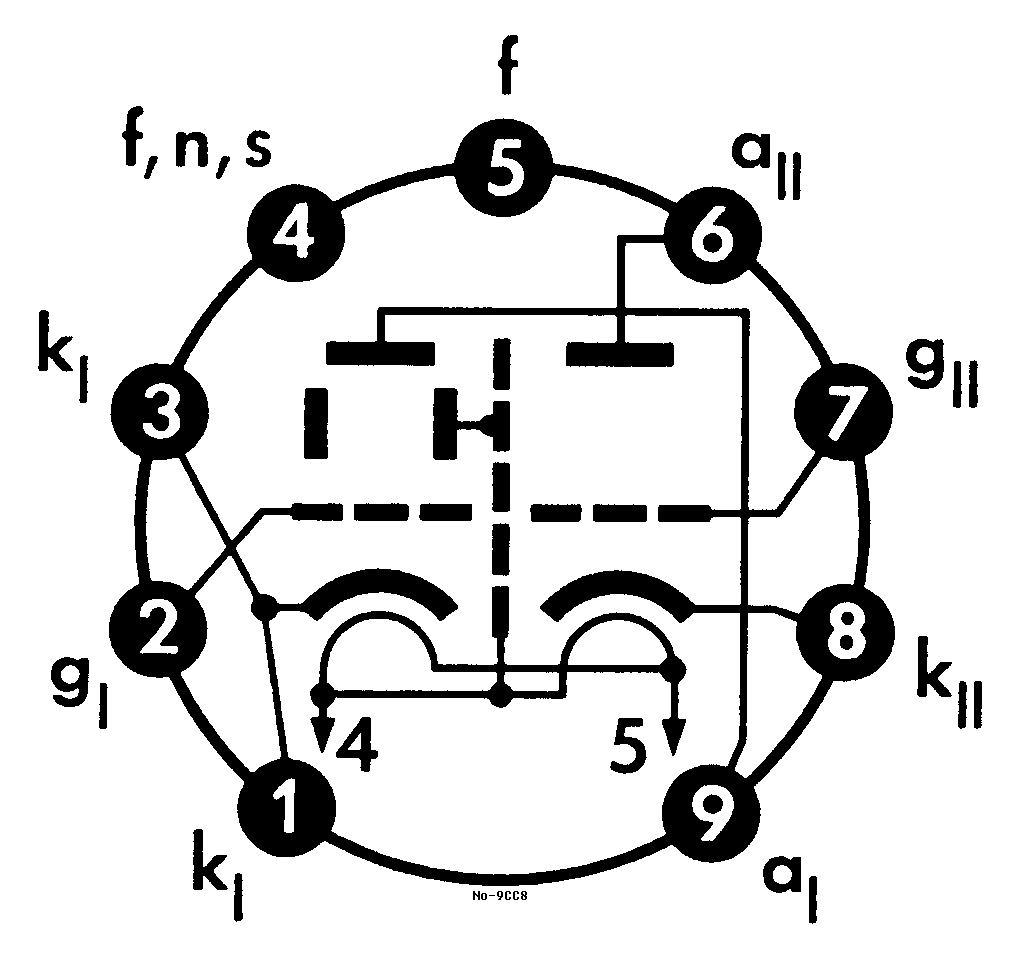

No-9CC8
ECC8100
No-9CC8

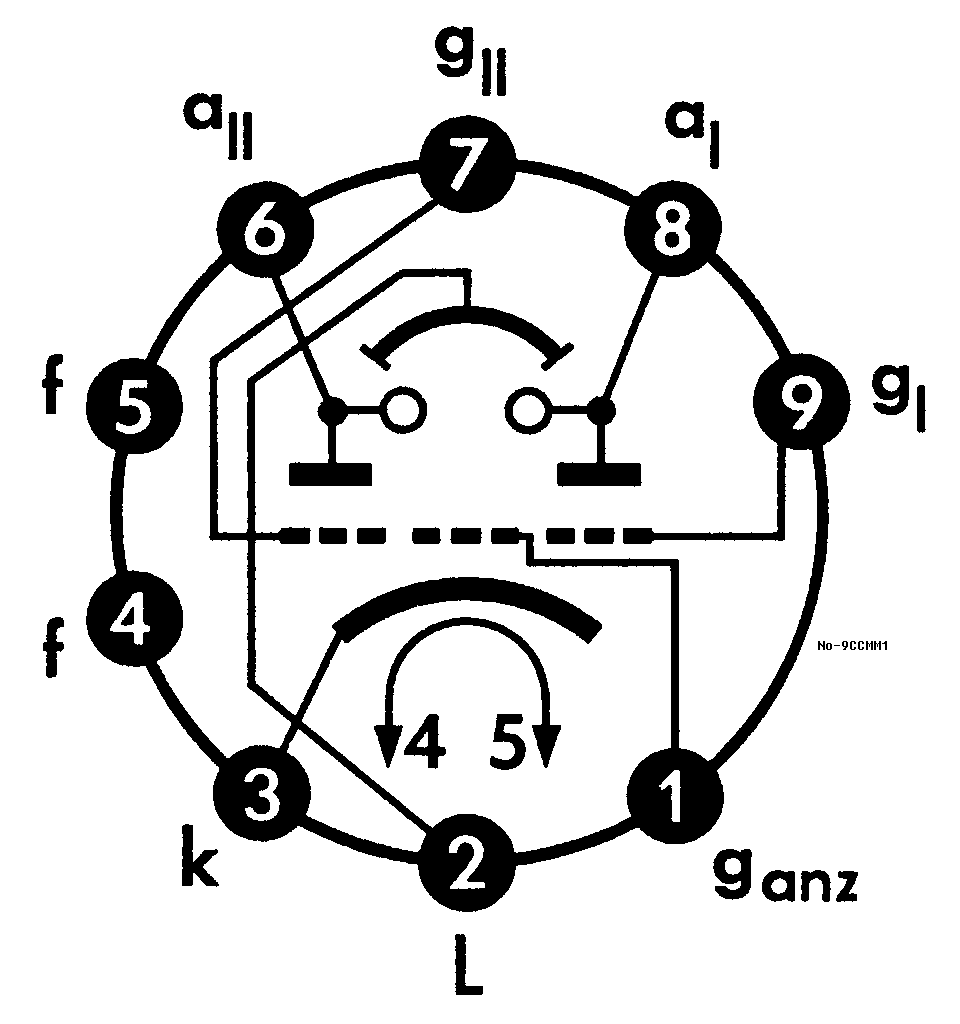

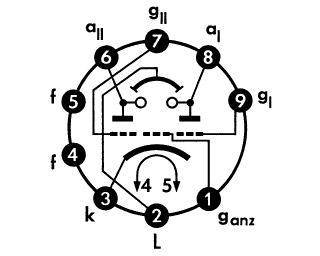

No-9CCMM1
EMM801
No-9CCMM1

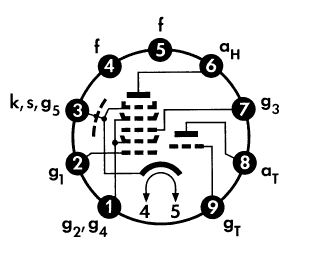

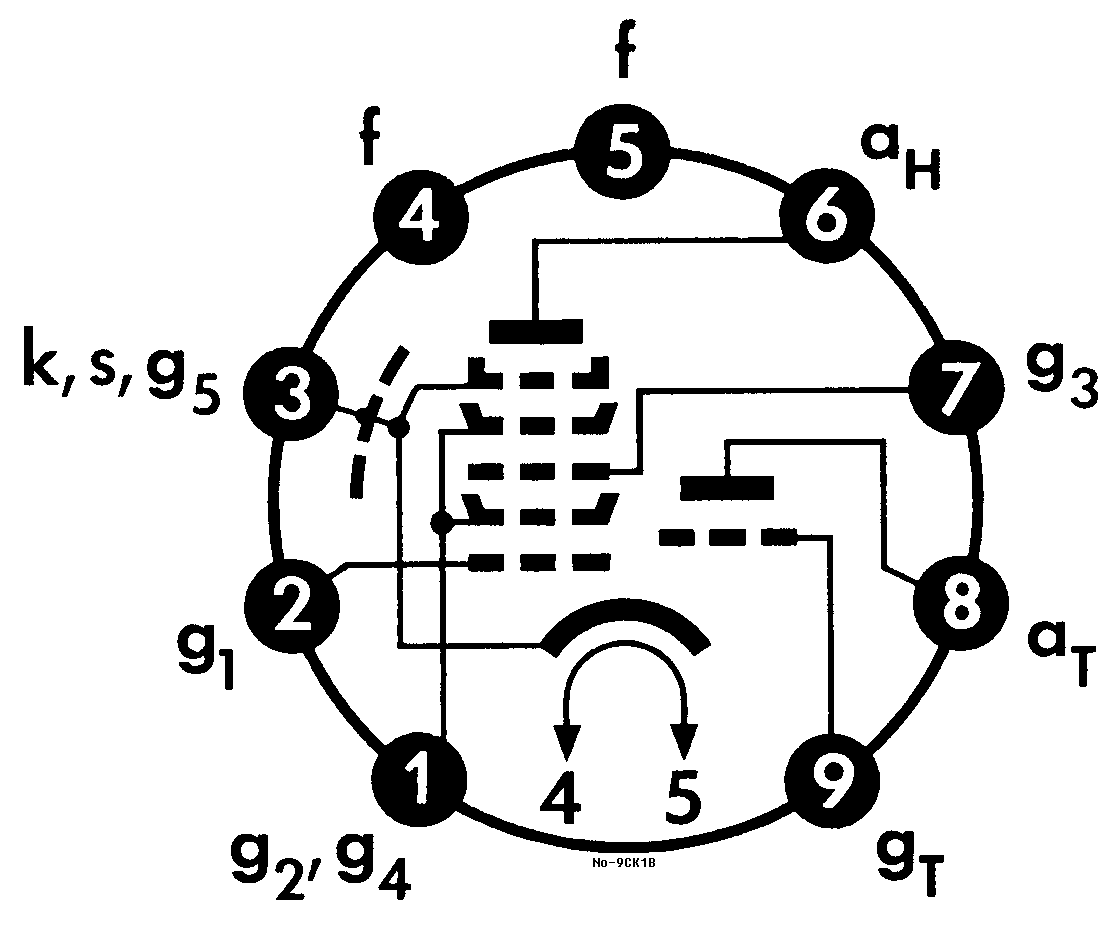

No-9CK1B
ECH81 ECH83 ECH8000 UCH81
No-9CK1B

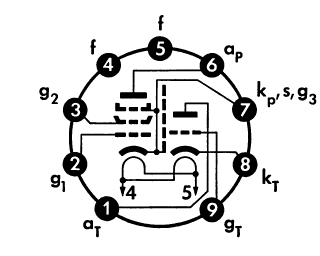

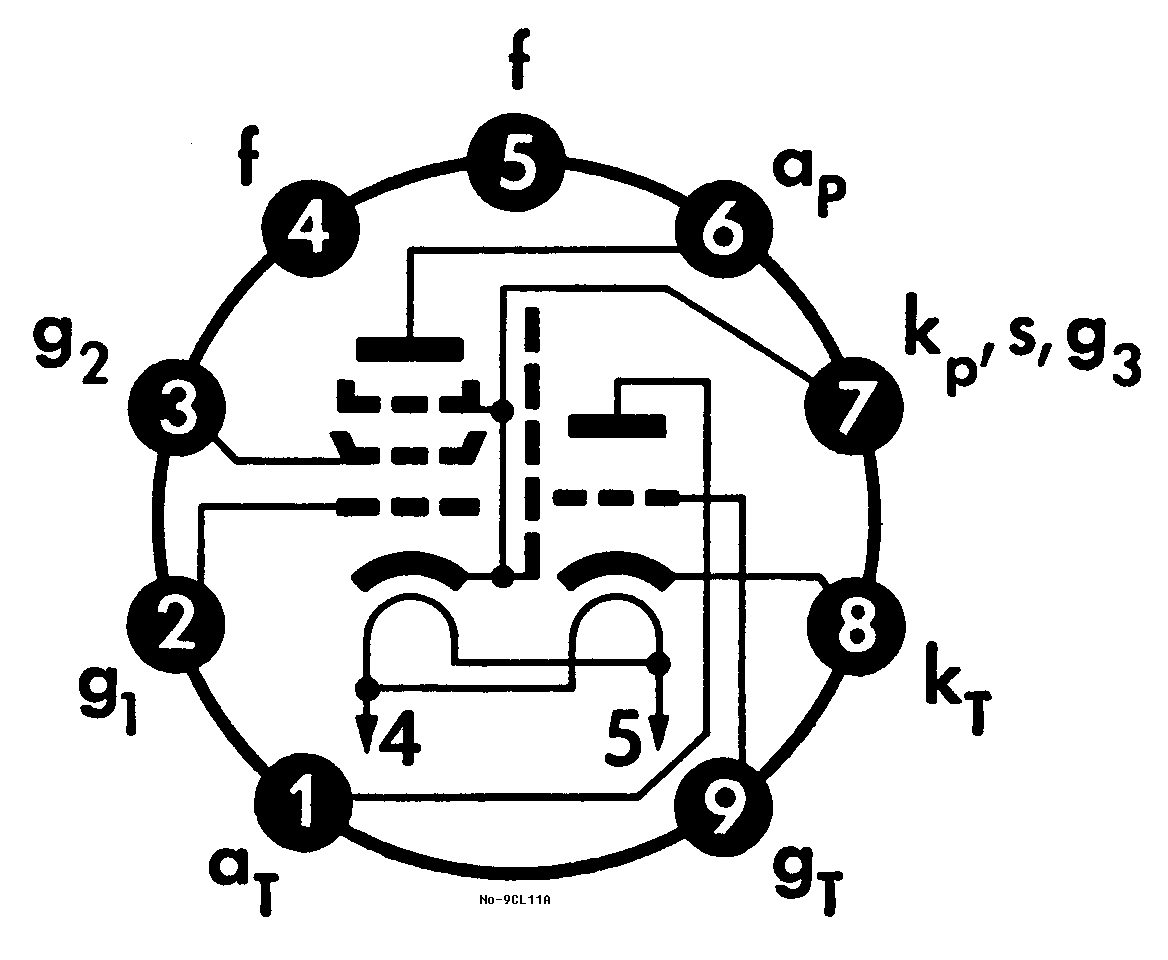

No-9CL11A
E80CF ECF80 ECF82 ECF802 ECF804 PCF80 PCF82
No-9CL11A

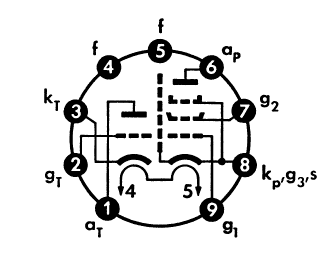

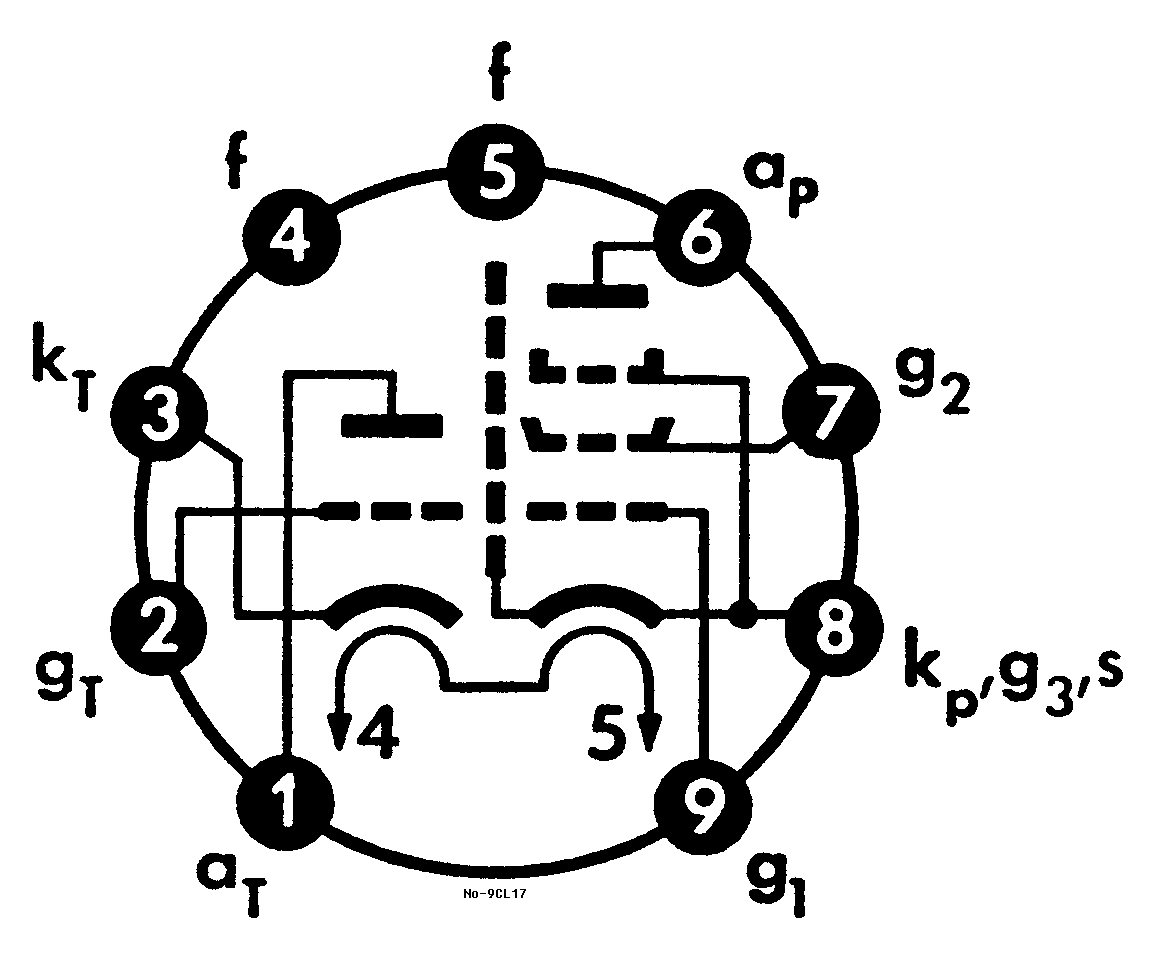

No-9CL17
ECL85 ECL802 ECL805 PCL85 PCL802 PCL805
No-9CL17

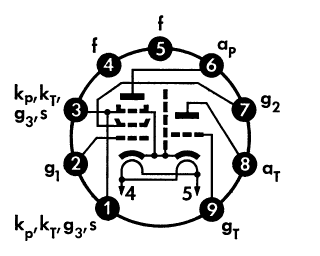

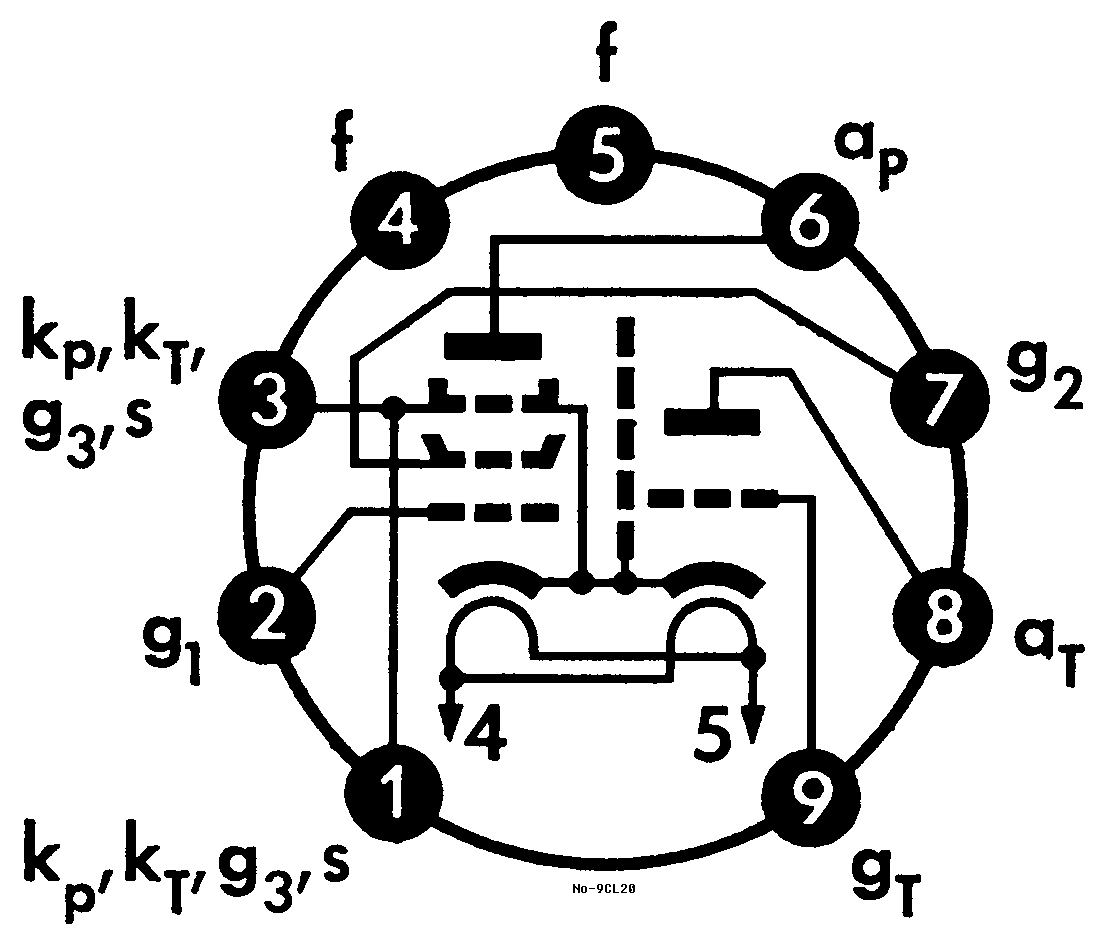

No-9CL20
ECF801 PCF801
No-9CL20

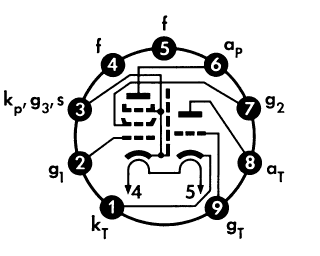

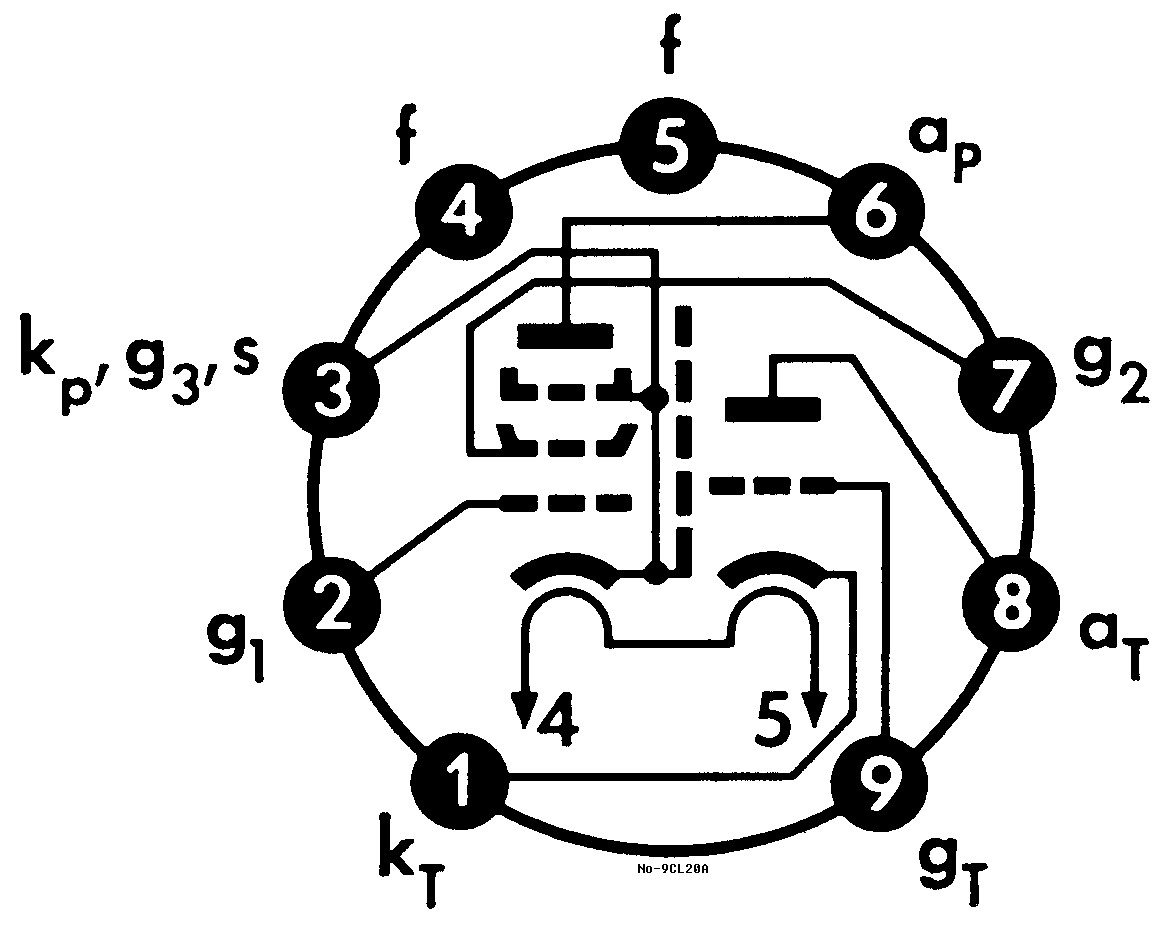

No-9CL20A
ECF8070 ECF803 PCF803
No-9CL20A

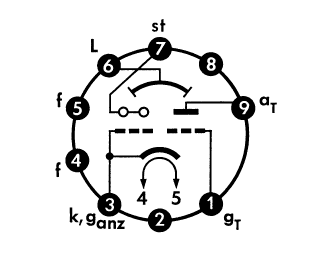

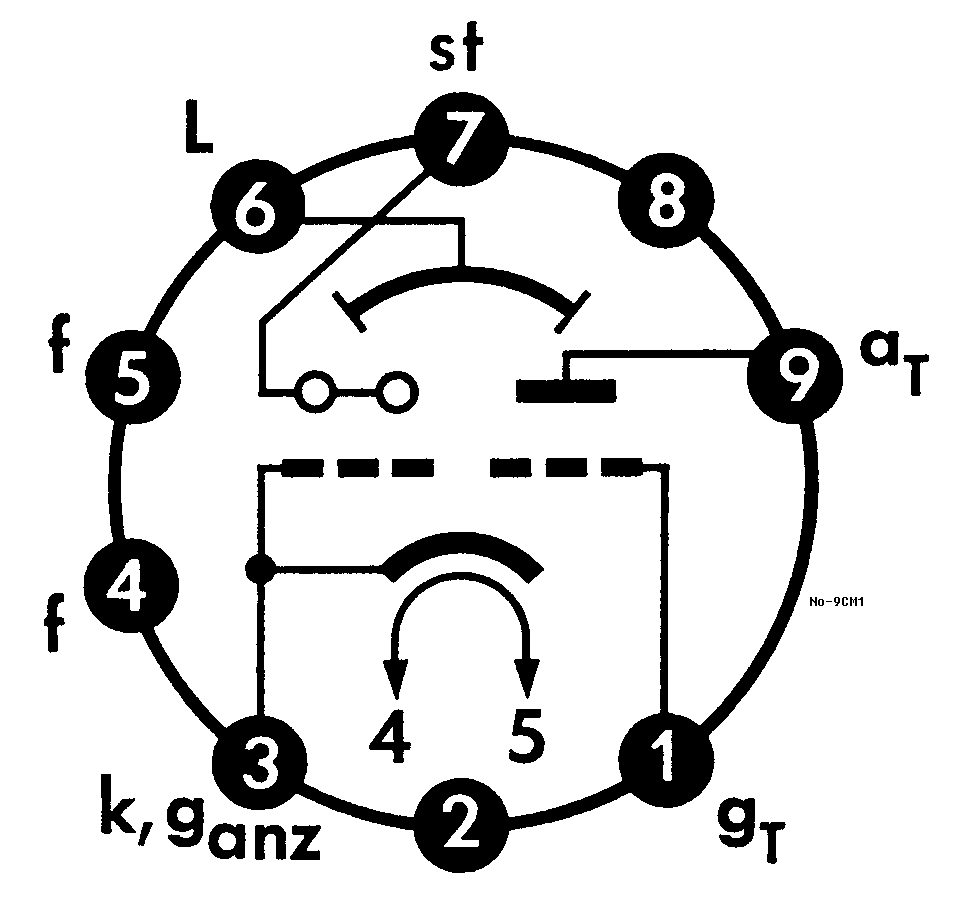

No-9CM1
EM800
No-9CM1

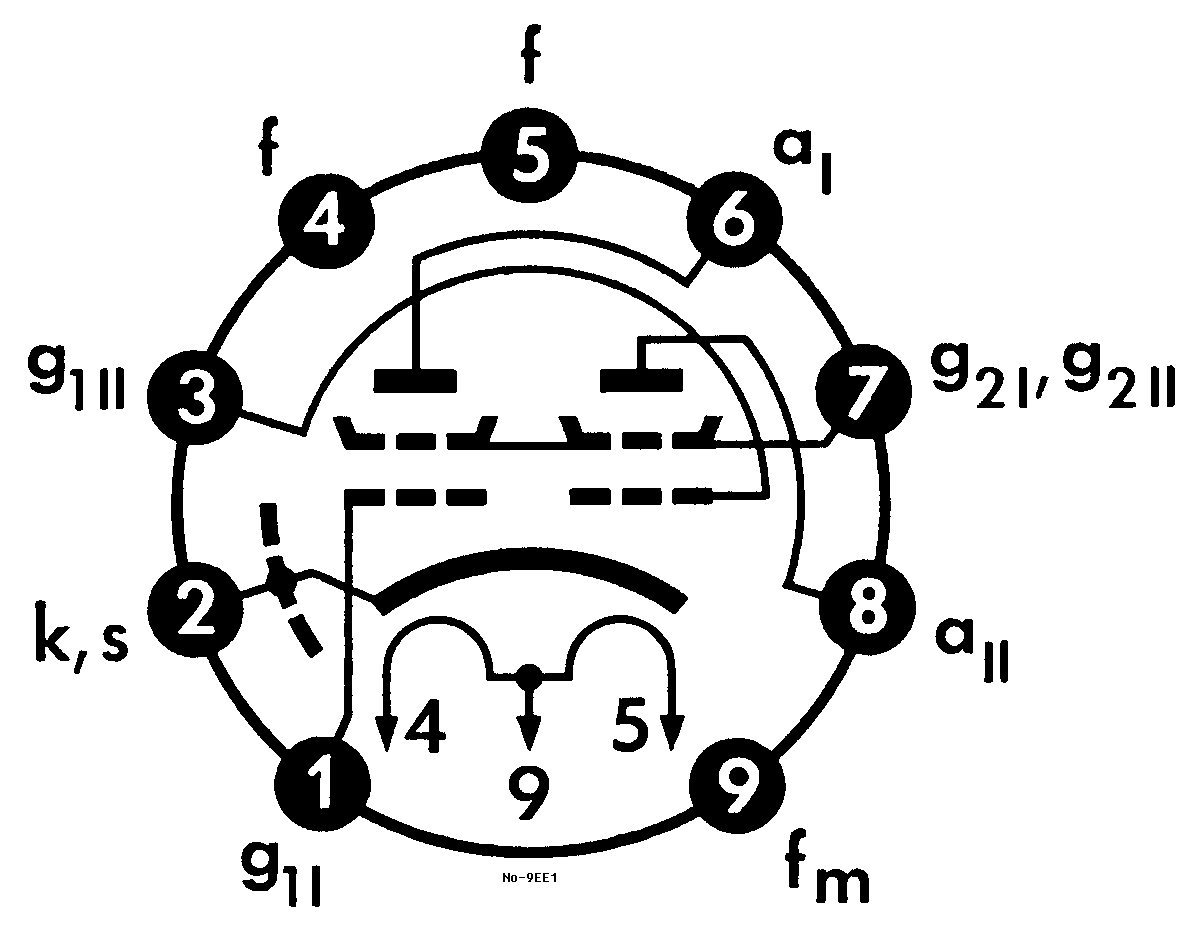

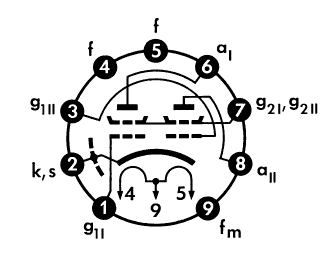

No-9EE1
6360 6939 QQE02/5 QQE03/12 YL1210 YL1220
No-9EE1

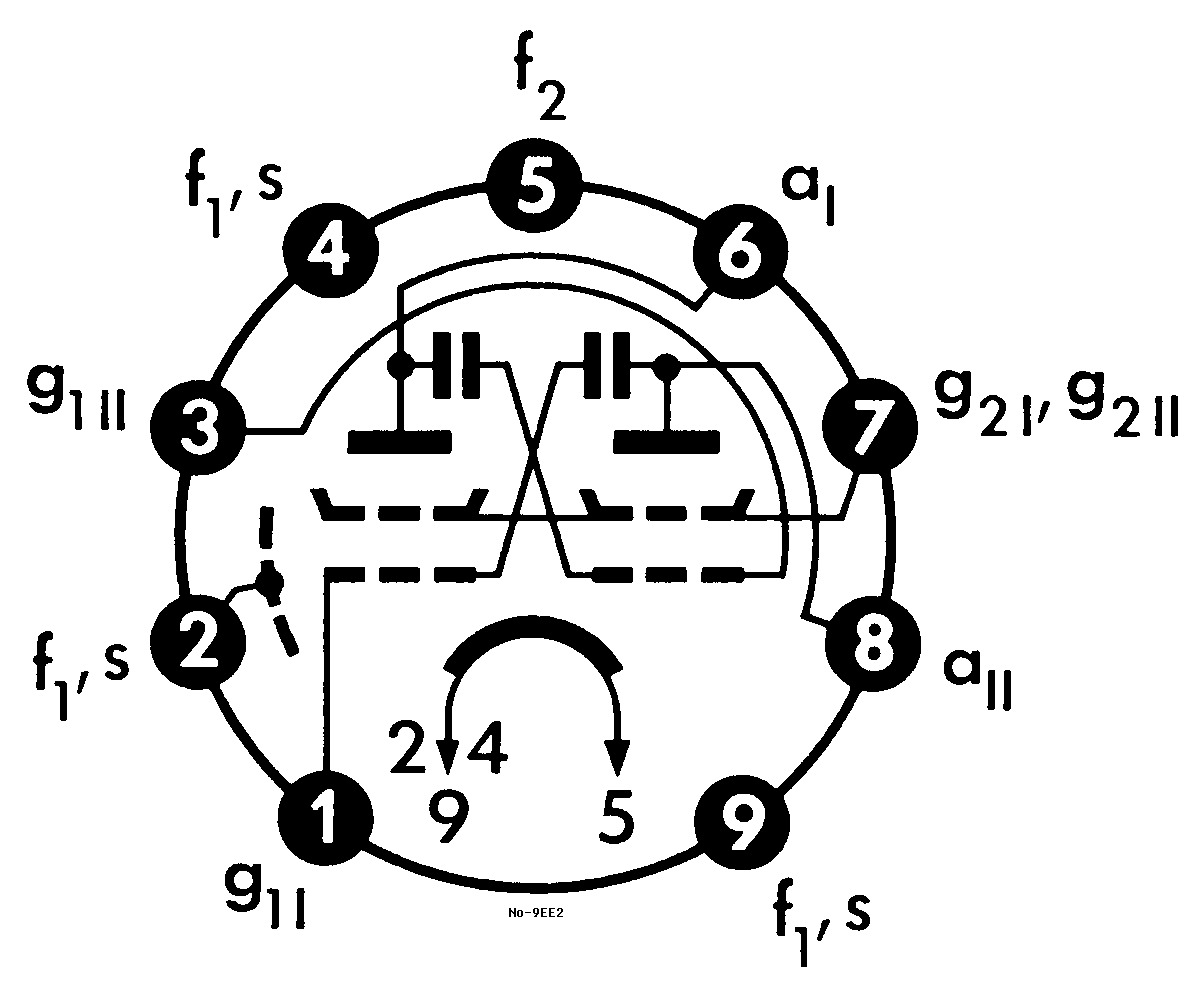

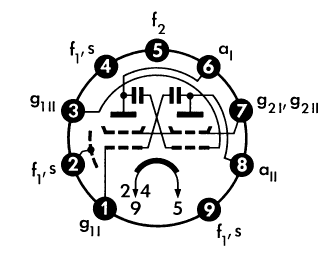

No-9EE2
YL1080
No-9EE2

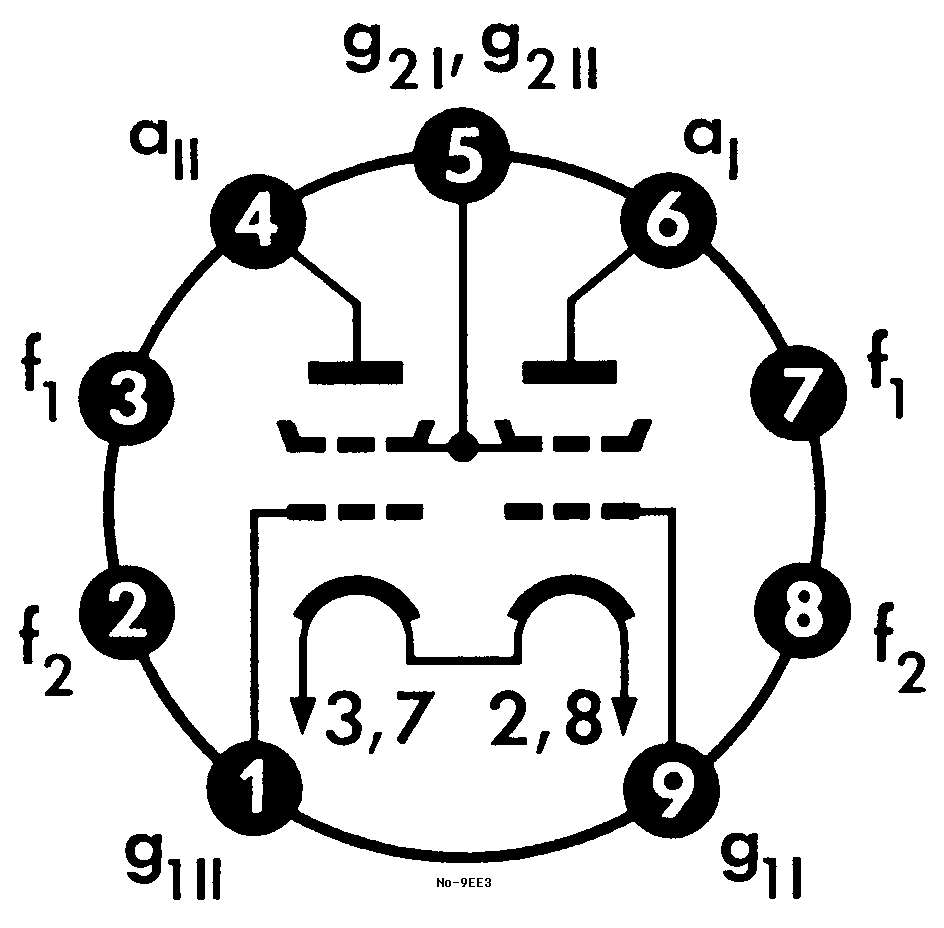

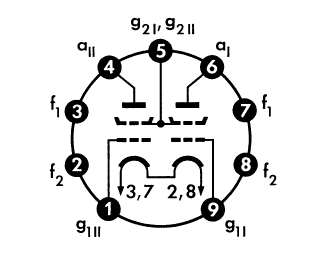

No-9EE3
YL1130
No-9EE3

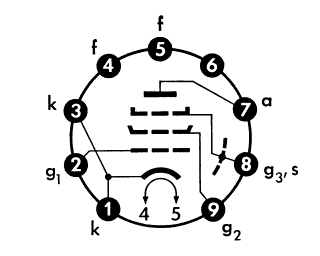

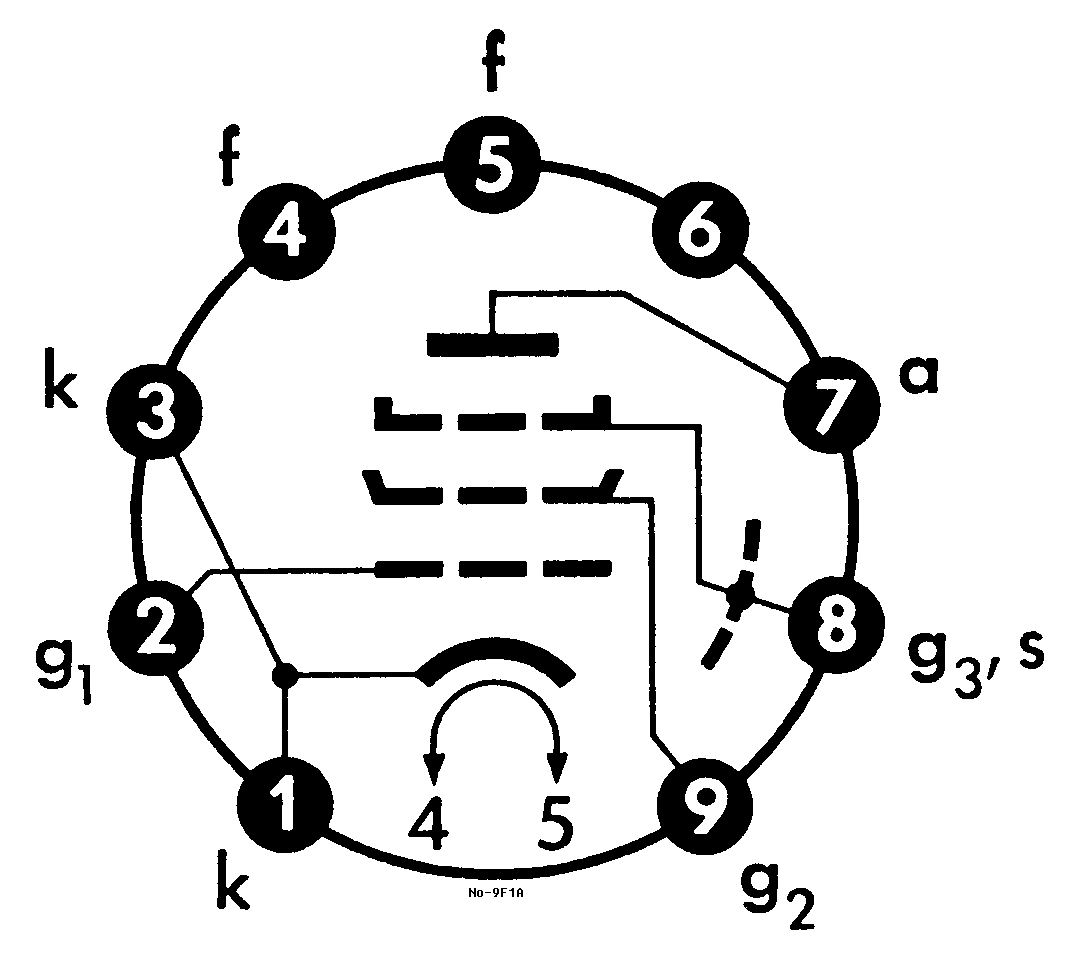

No-9F1A
D3a E180F E186F E280F E282F
No-9F1A

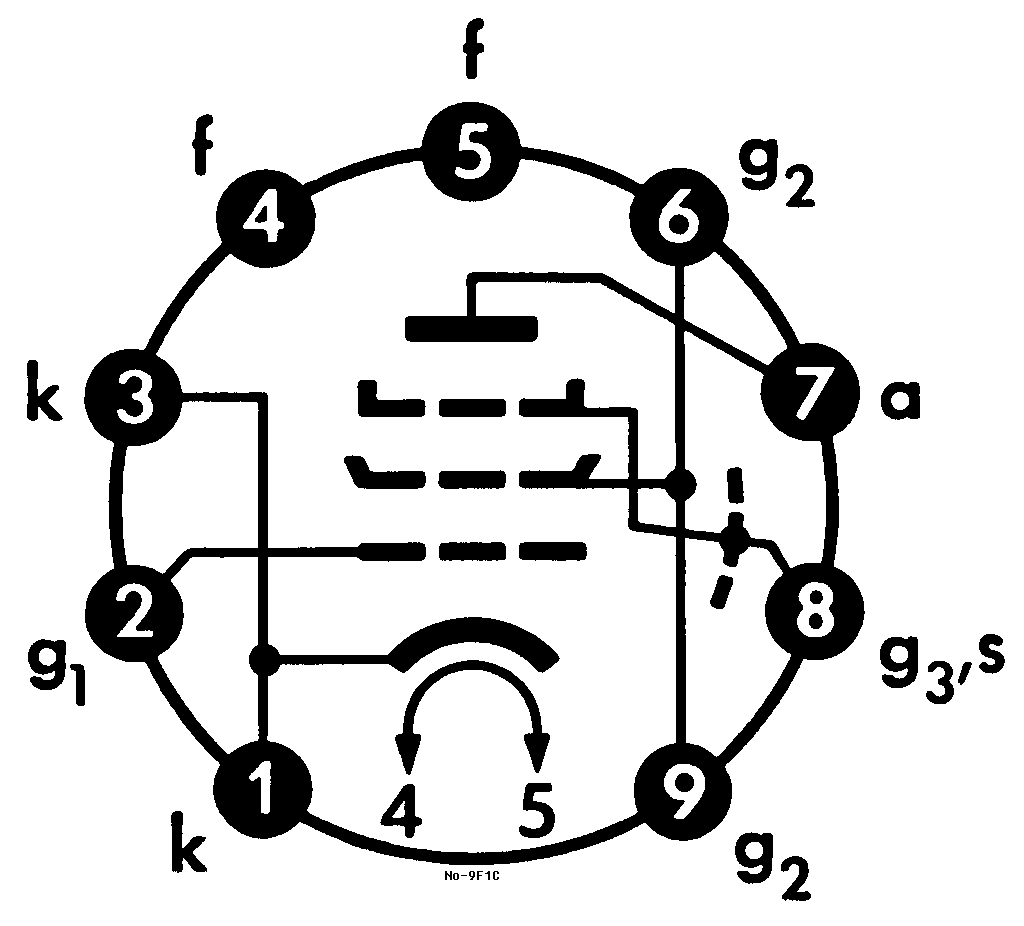

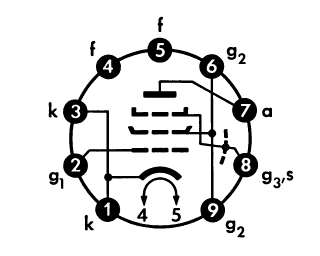

No-9F1C
E810F
No-9F1C

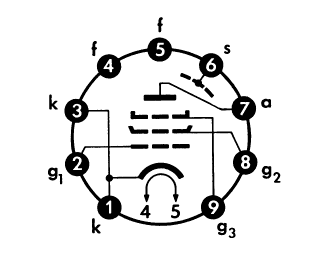

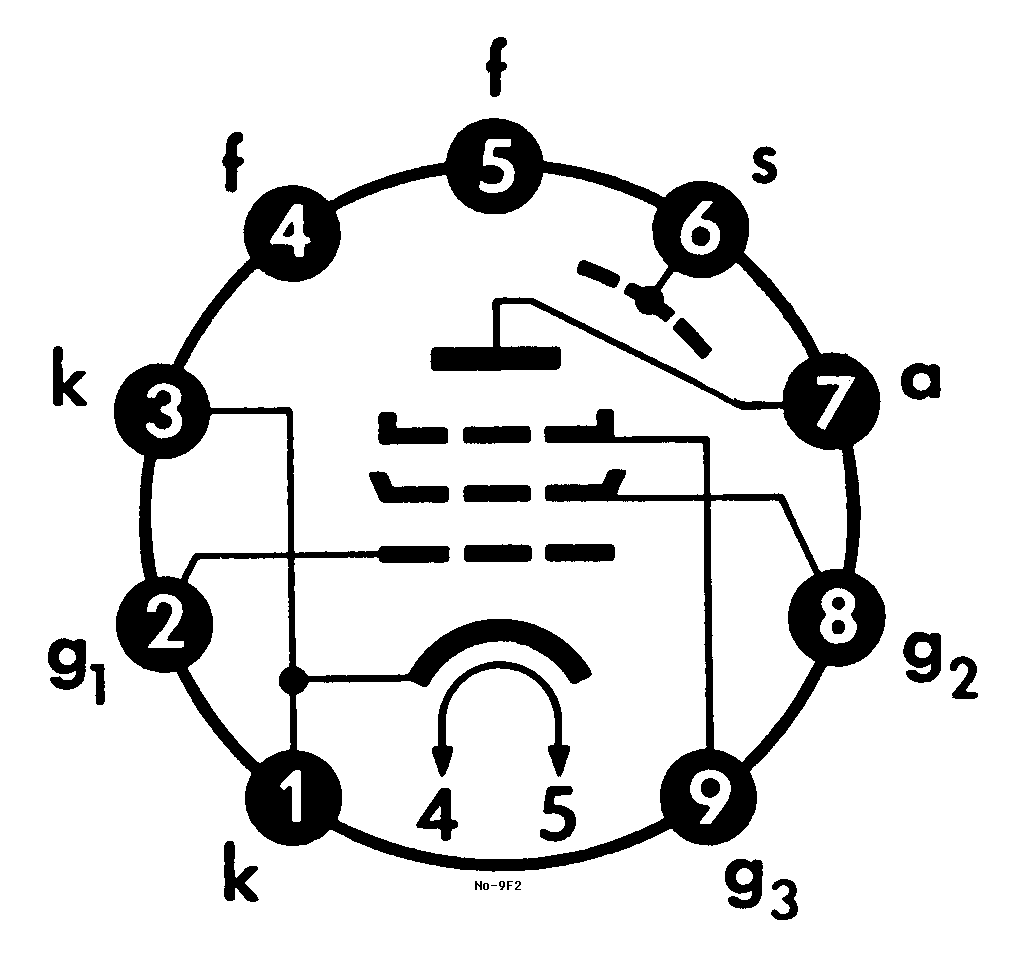

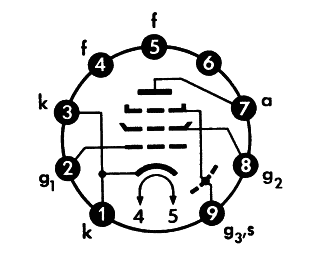

No-9F2
EF80 EF85 EF183 EF184 EF800 EF805S EF8010 UF80 UF85
No-9F2

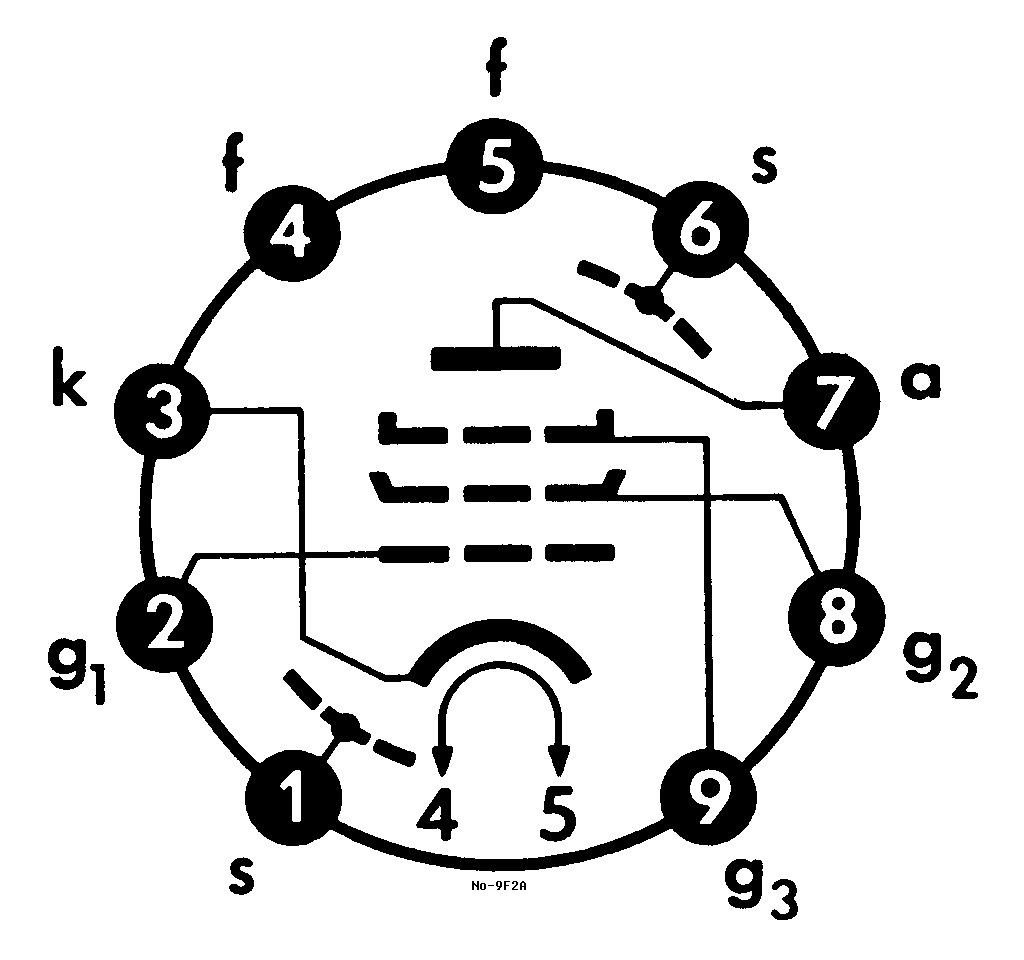

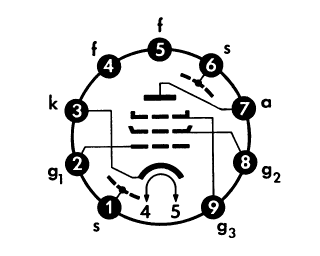

No-9F2A
EF89 UF89
No-9F2A

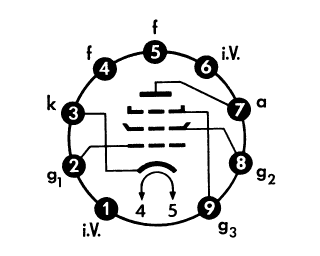

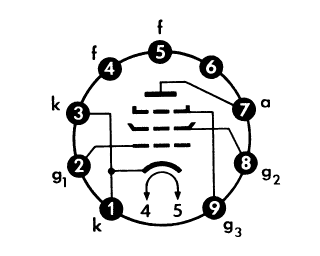

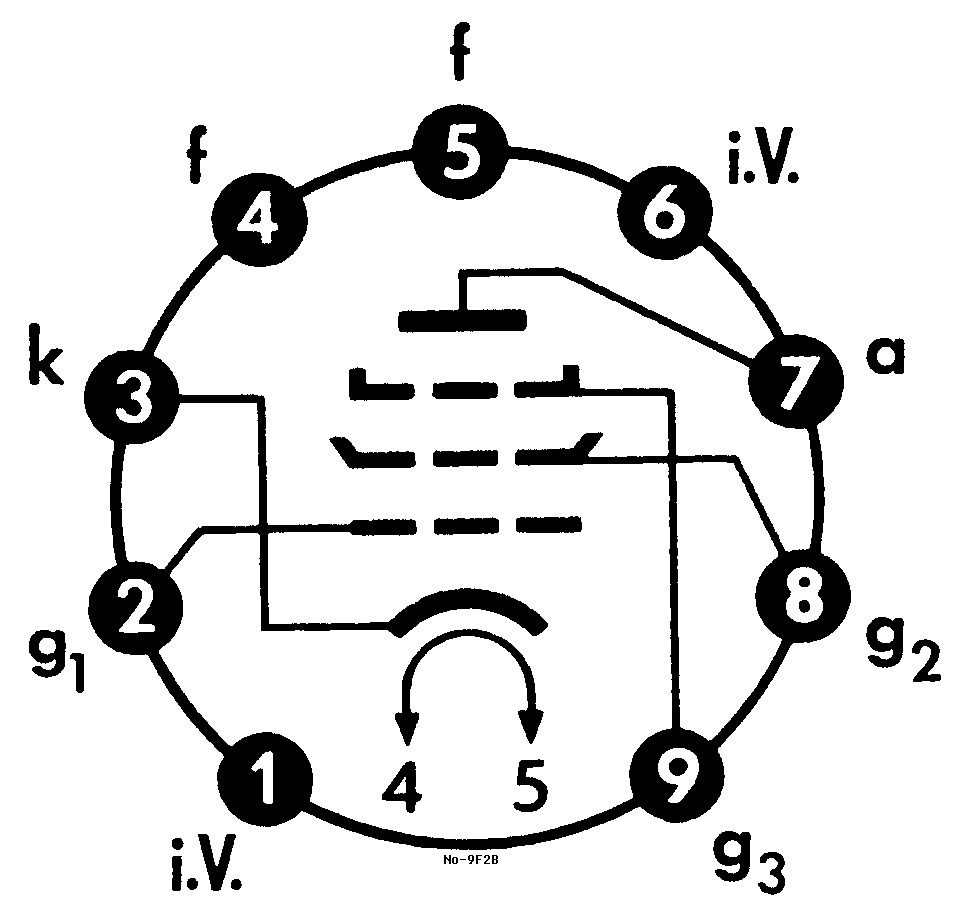

No-9F2B
EL821 EL822
No-9F2B

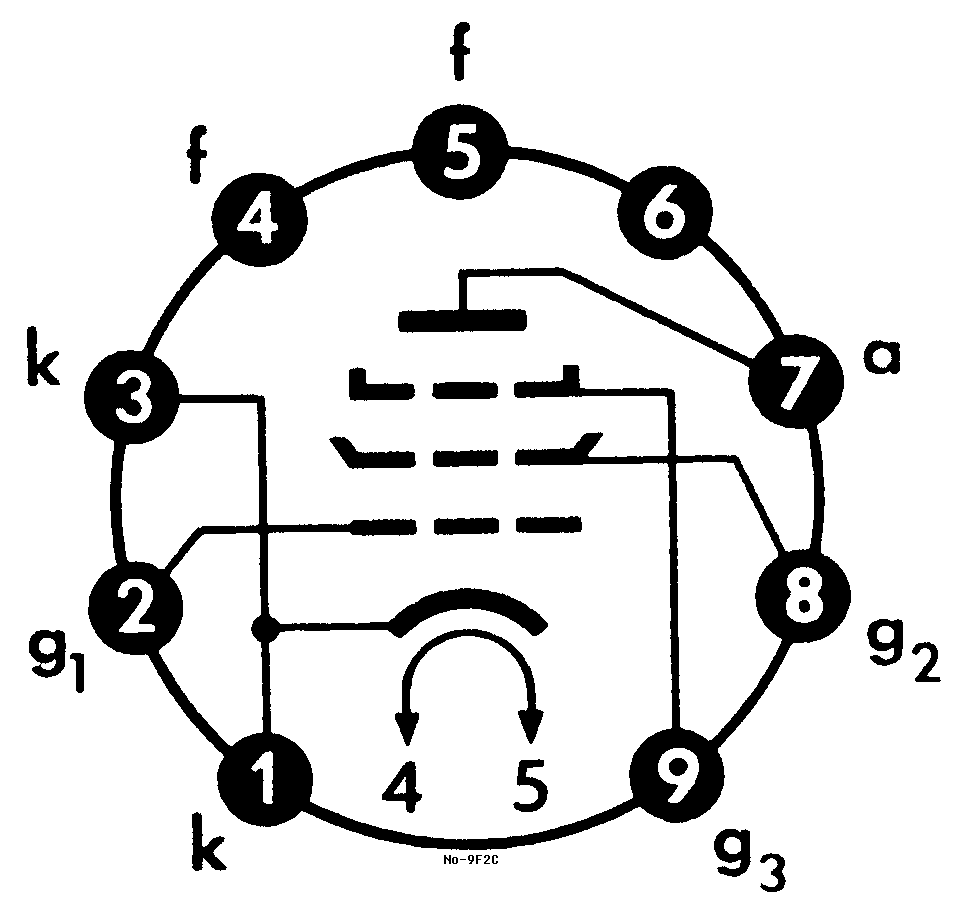

No-9F2C
EF802
No-9F2C

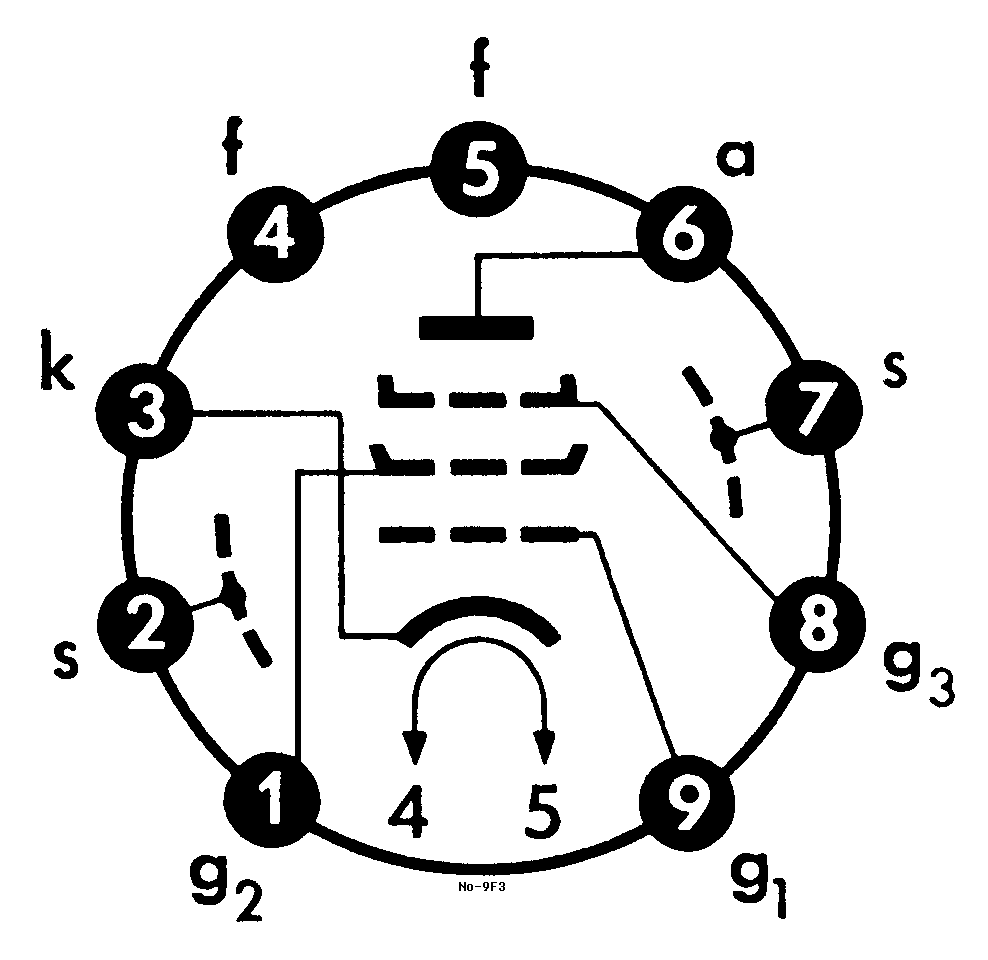

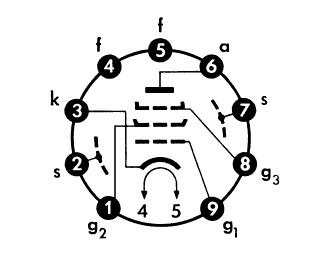

No-9F3
E80F EF83 EF86 EF806S UF86
No-9F3

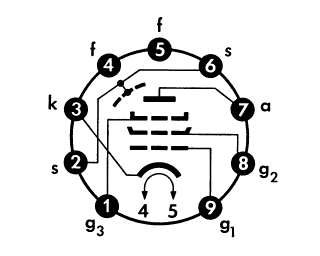

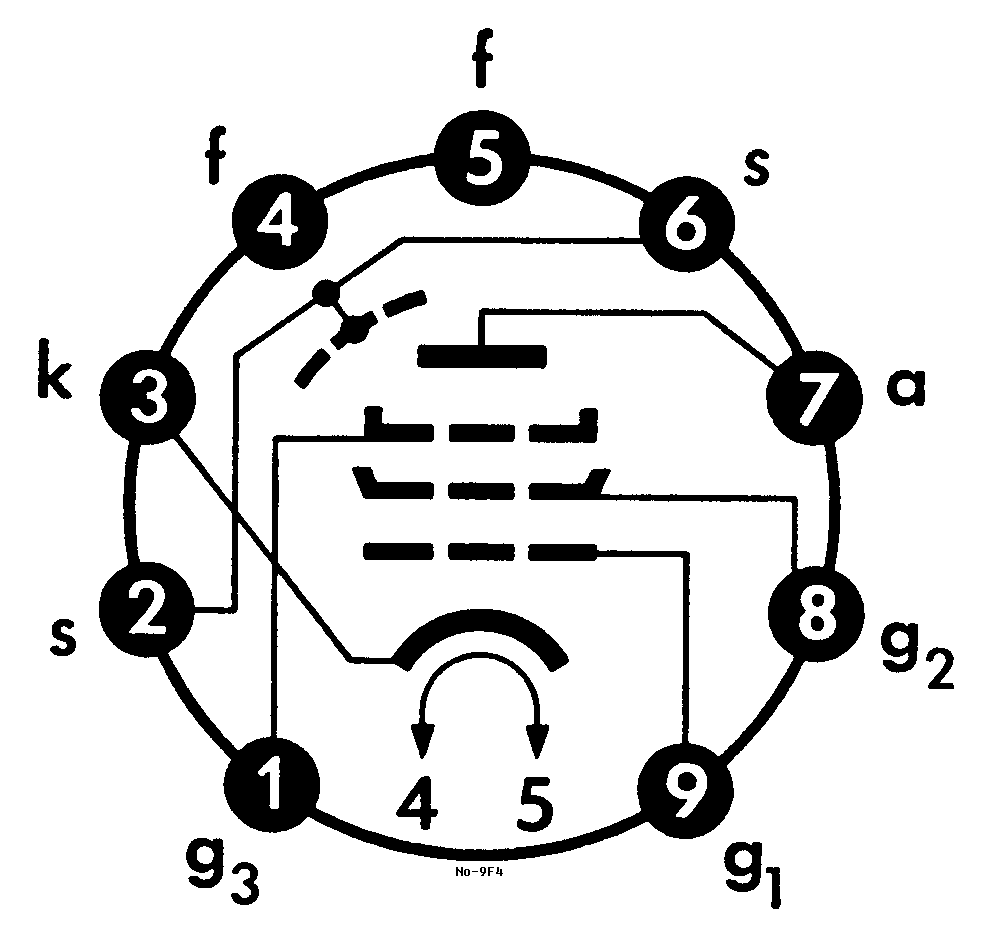

No-9F4
EF804 EF804S
No-9F4

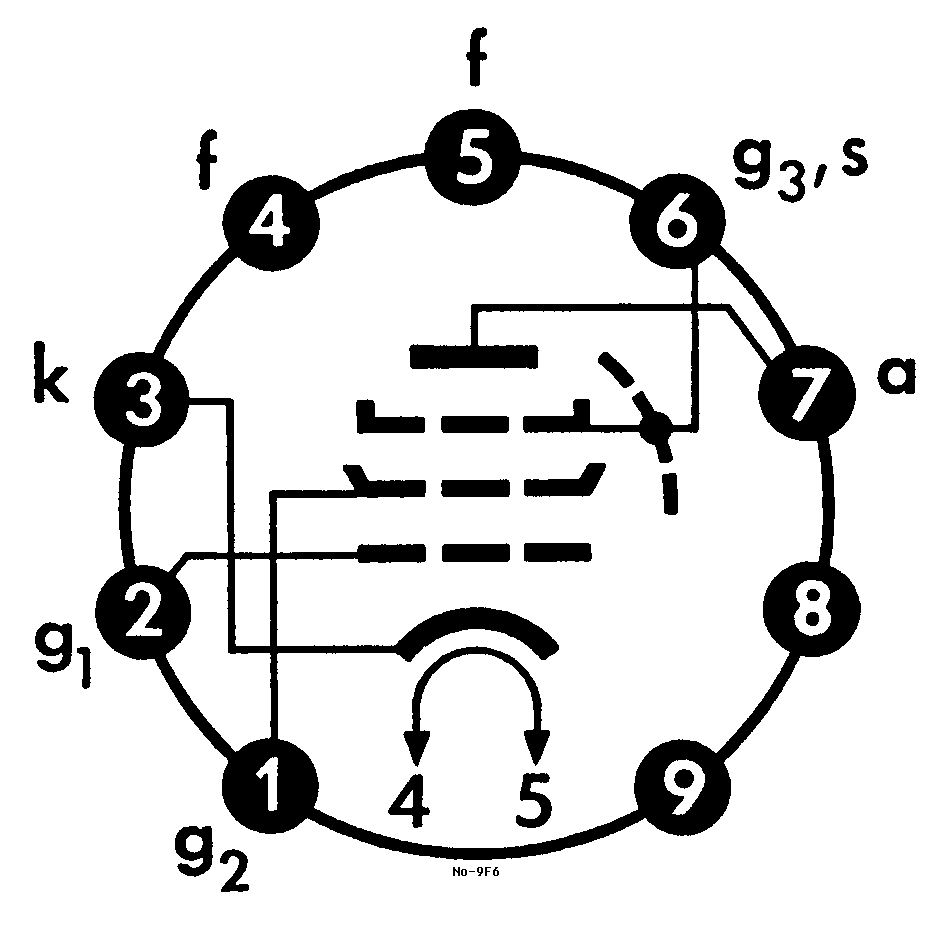

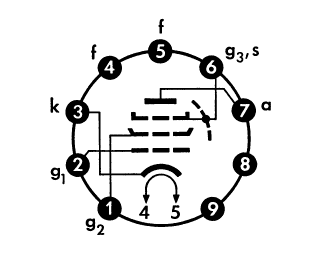

No-9F6
EL803 EL803S
No-9F6

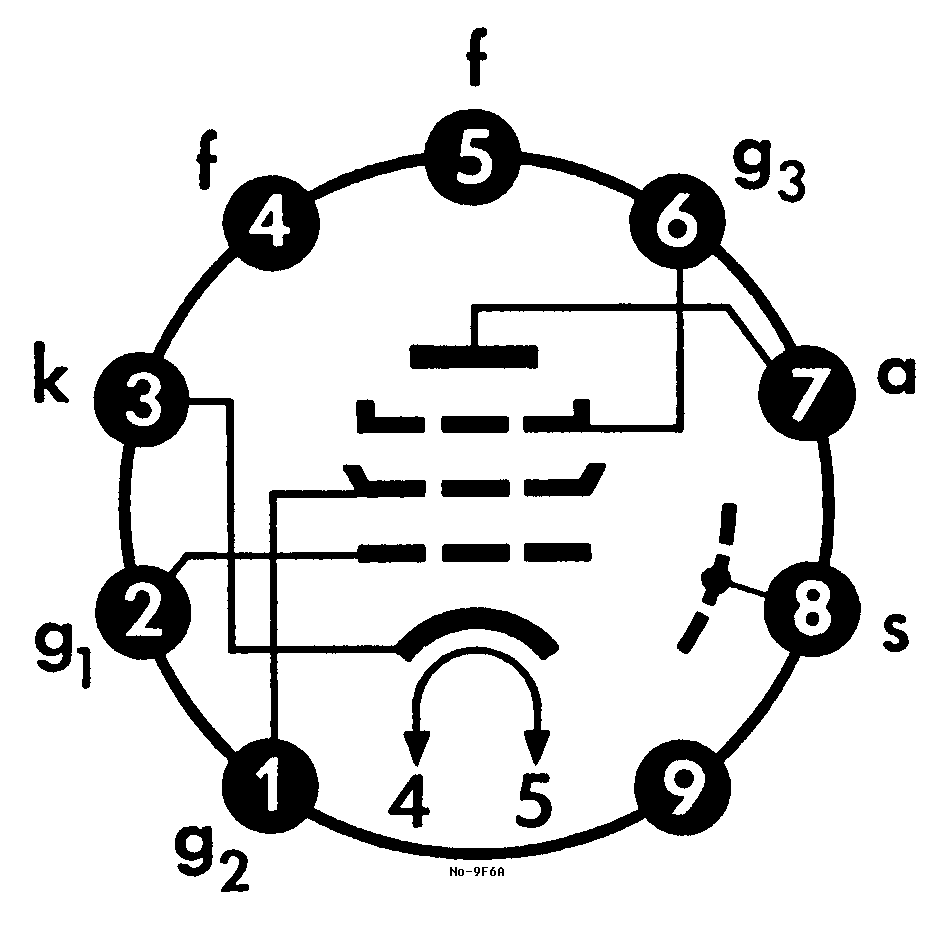

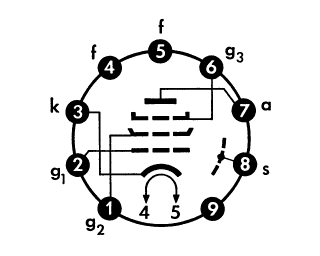

No-9F6A
EL83 PL83
No-9F6A

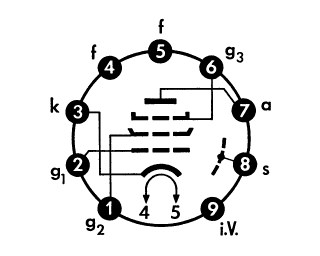

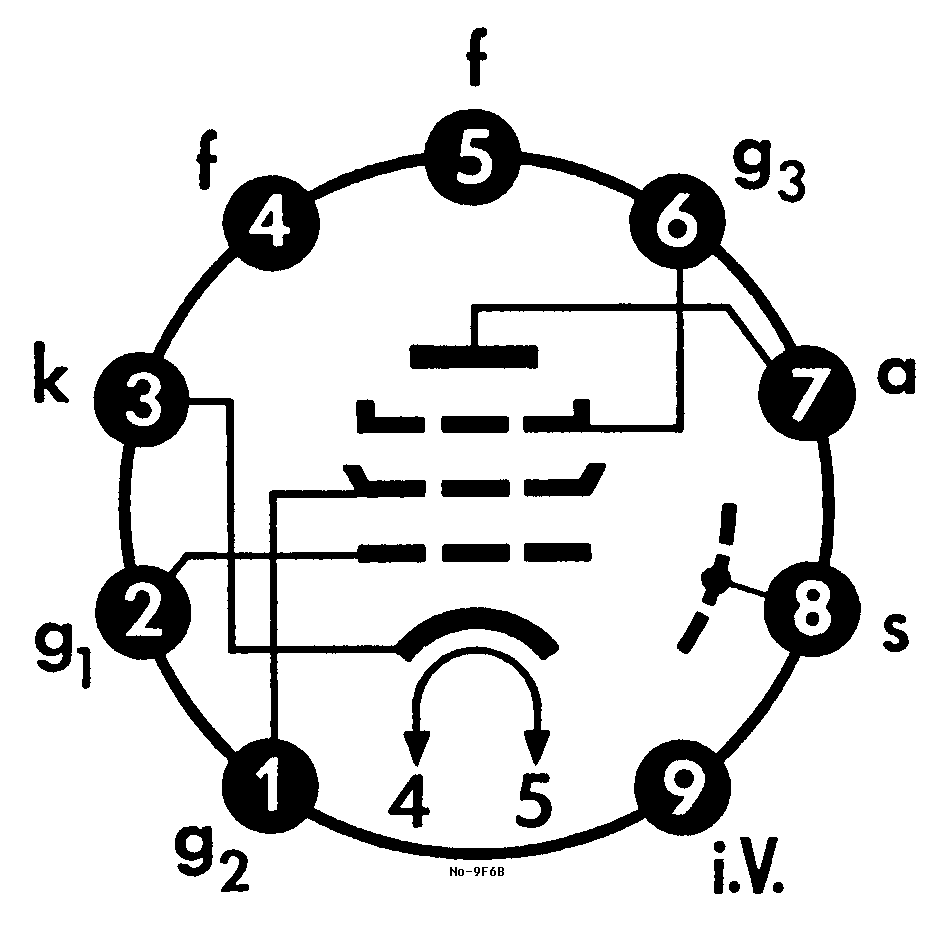

No-9F6B
EL83 N309
No-9F6B

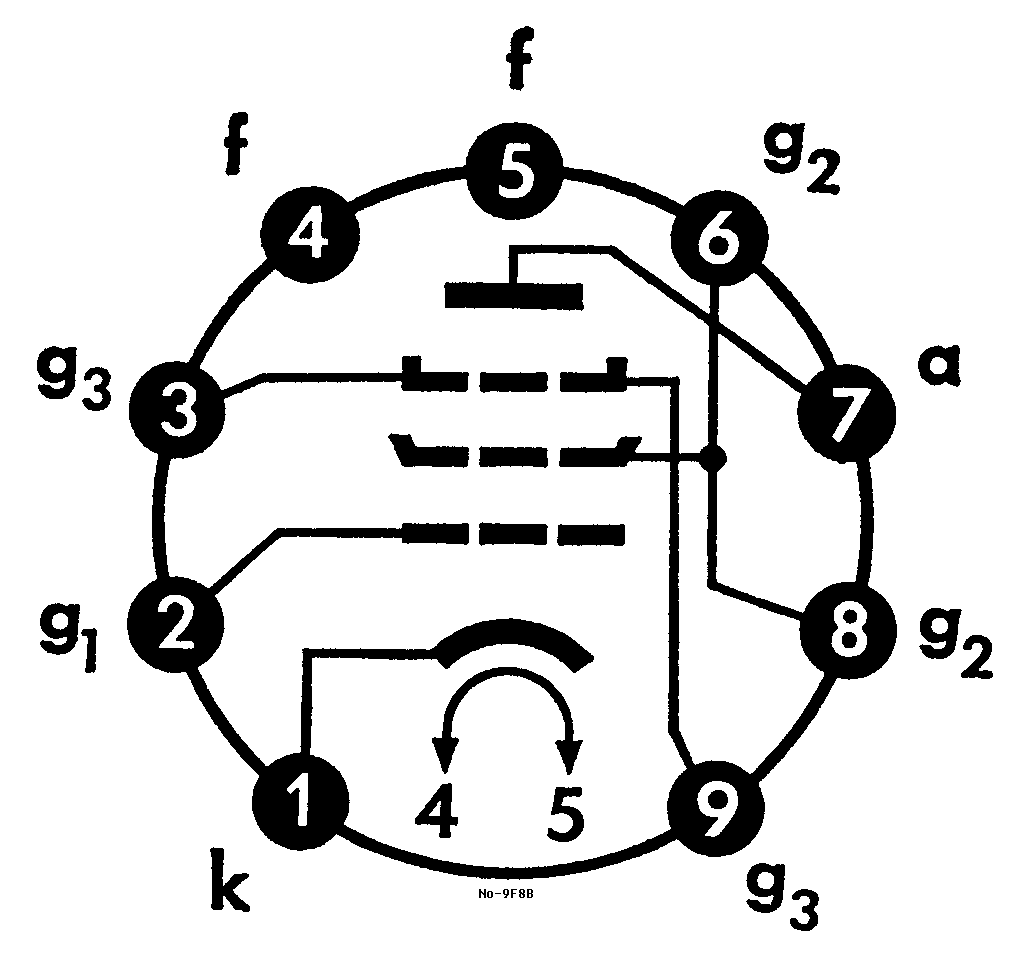

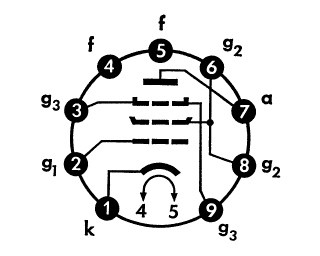

No-9F8B
EL802
No-9F8B

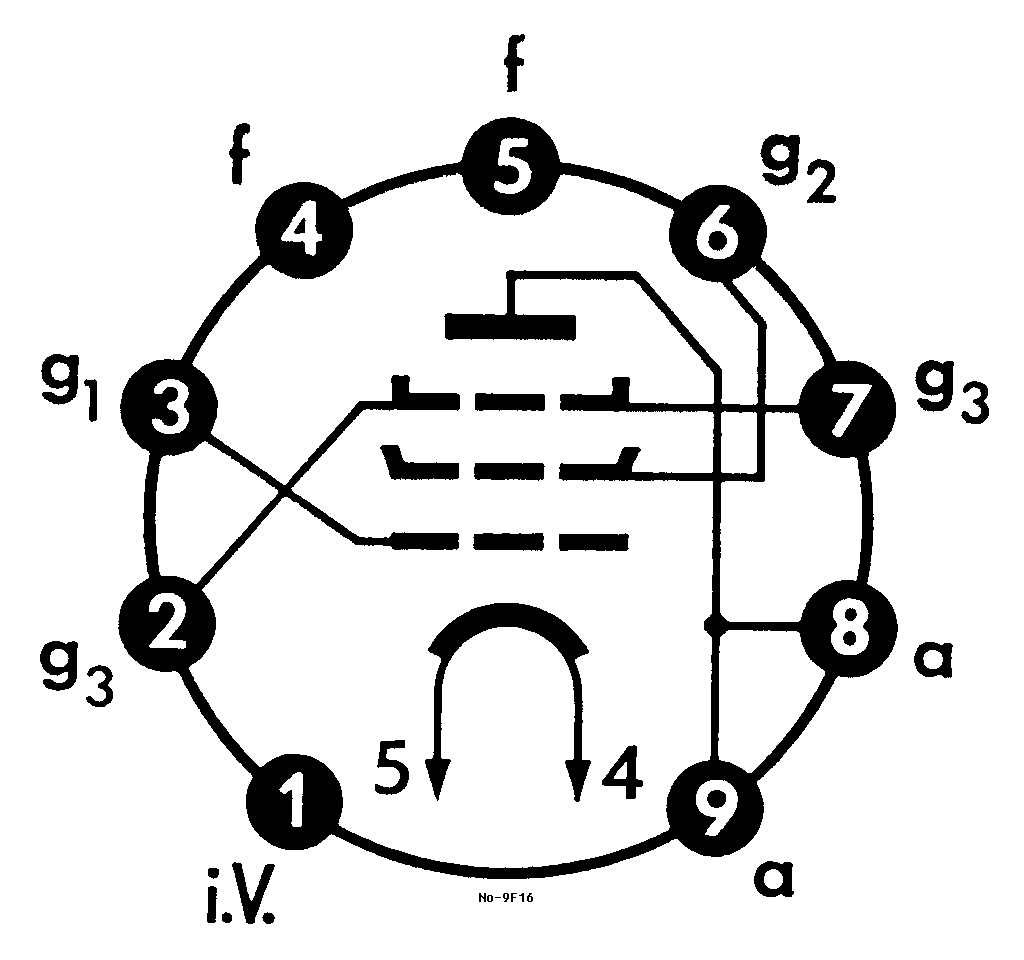

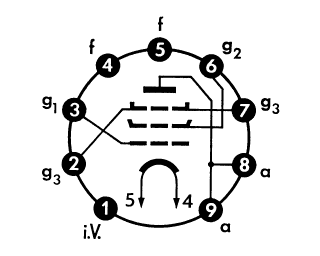

No-9F16
YL1000
No-9F16

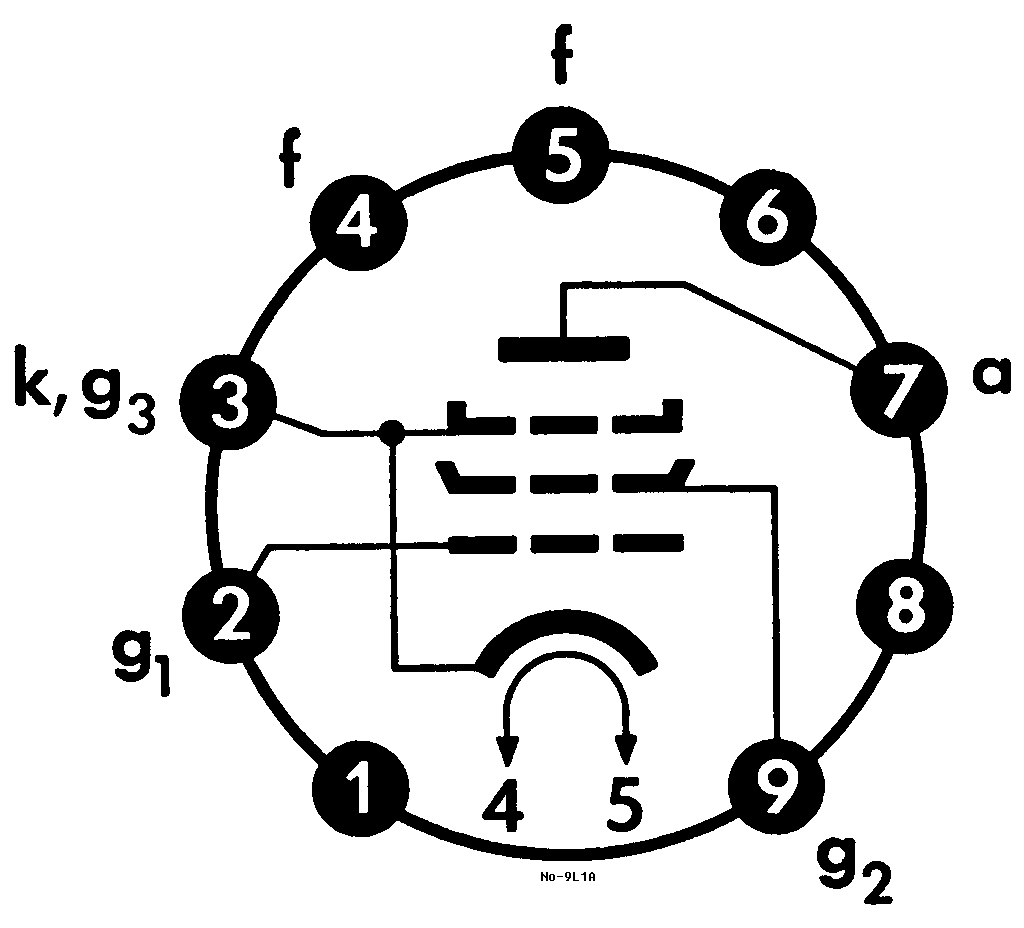

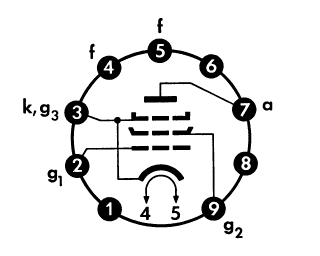

No-9L1A
E84L EL84 EL86
No-9L1A

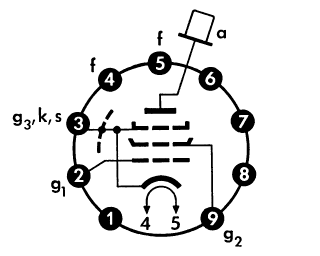

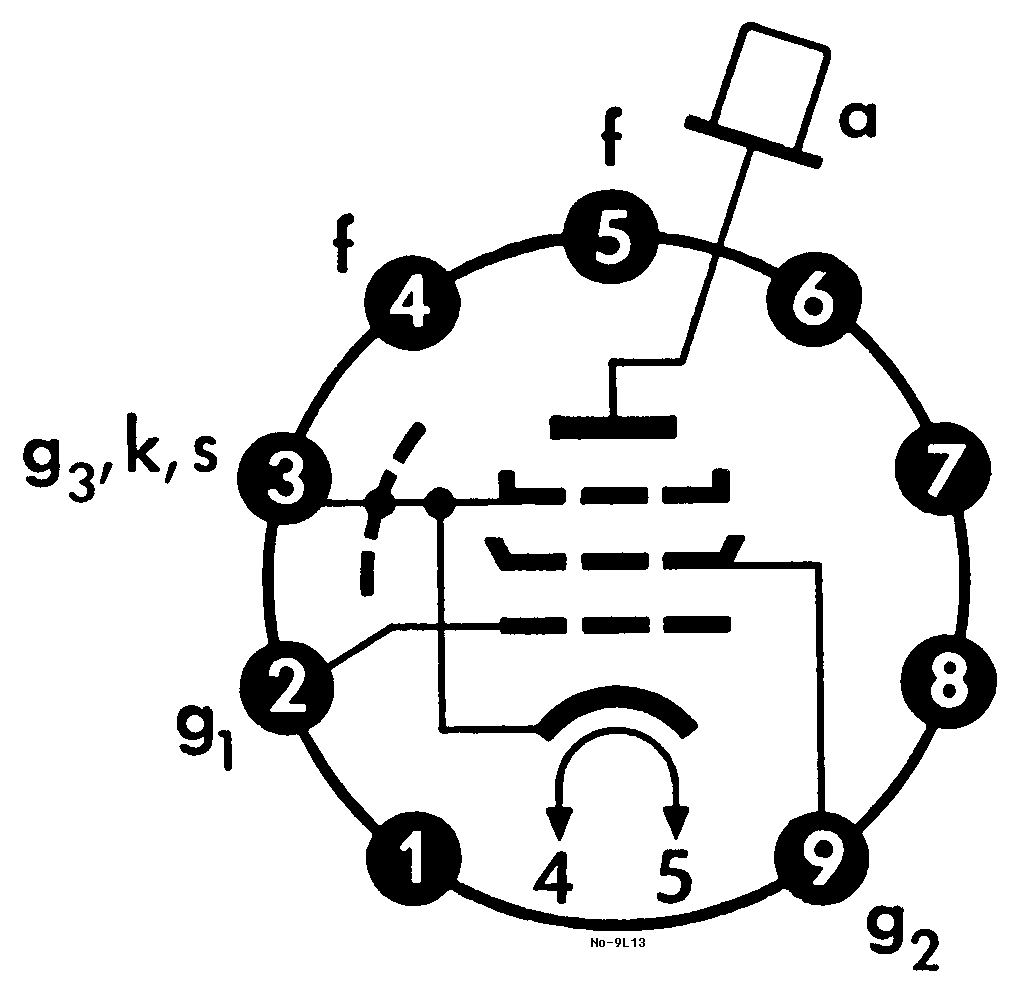

No-9L13
EL804
No-9L13

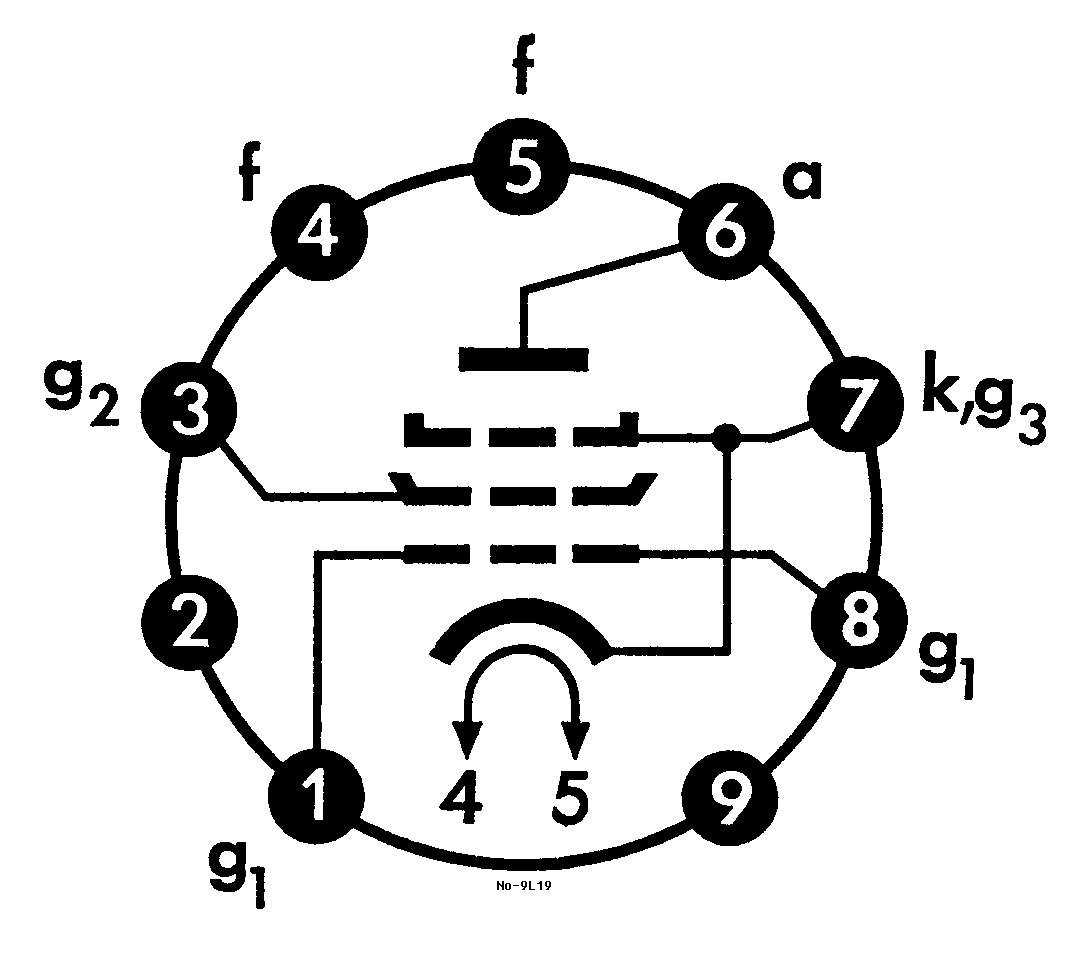

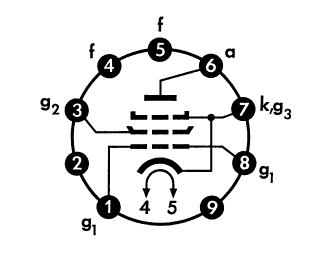

No-9L19
EL805
No-9L19

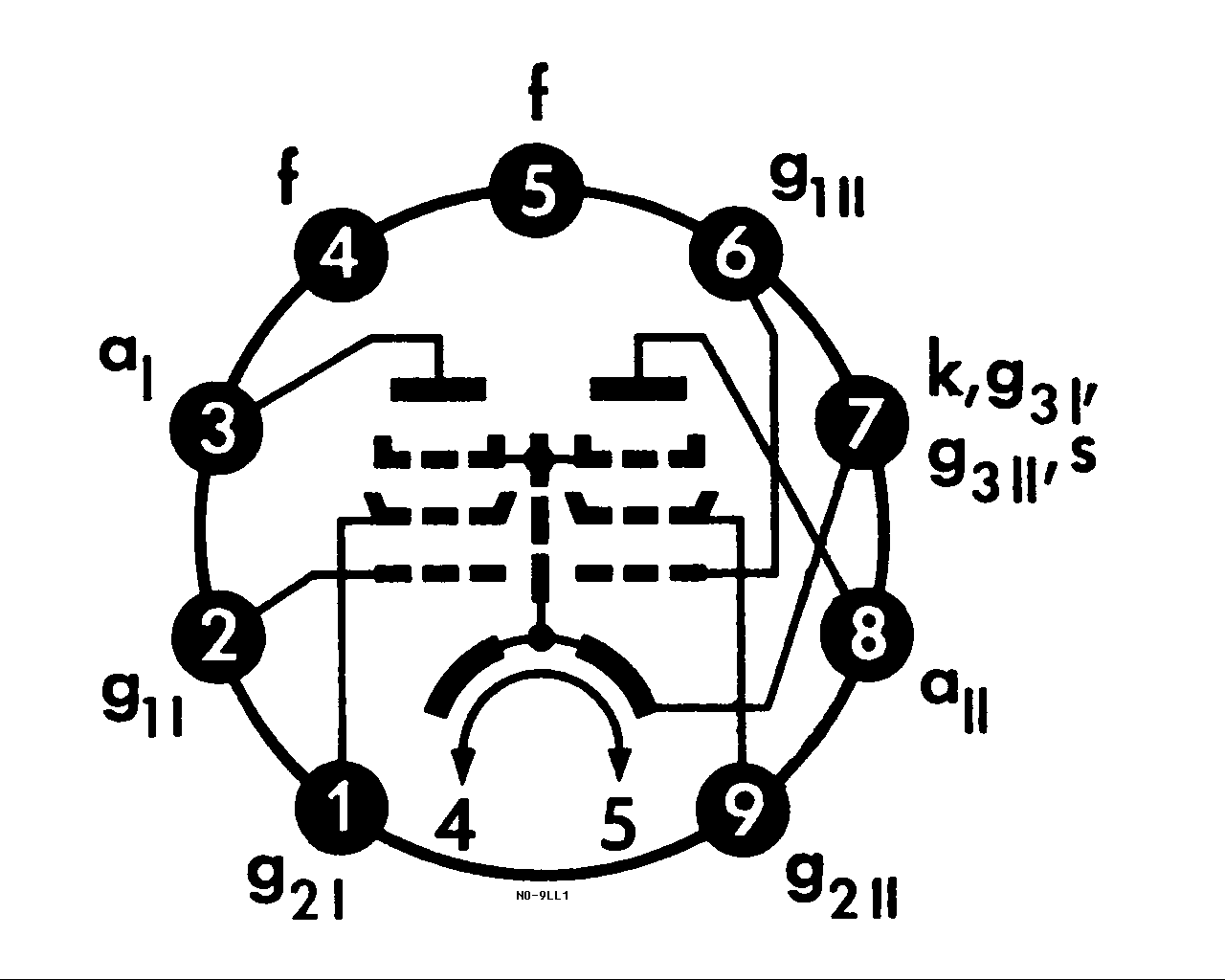

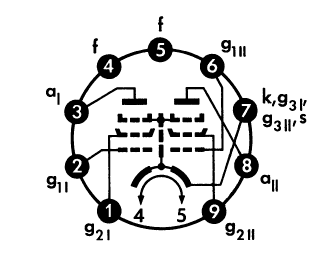

No-9LL1
ELL80
No-9LL1

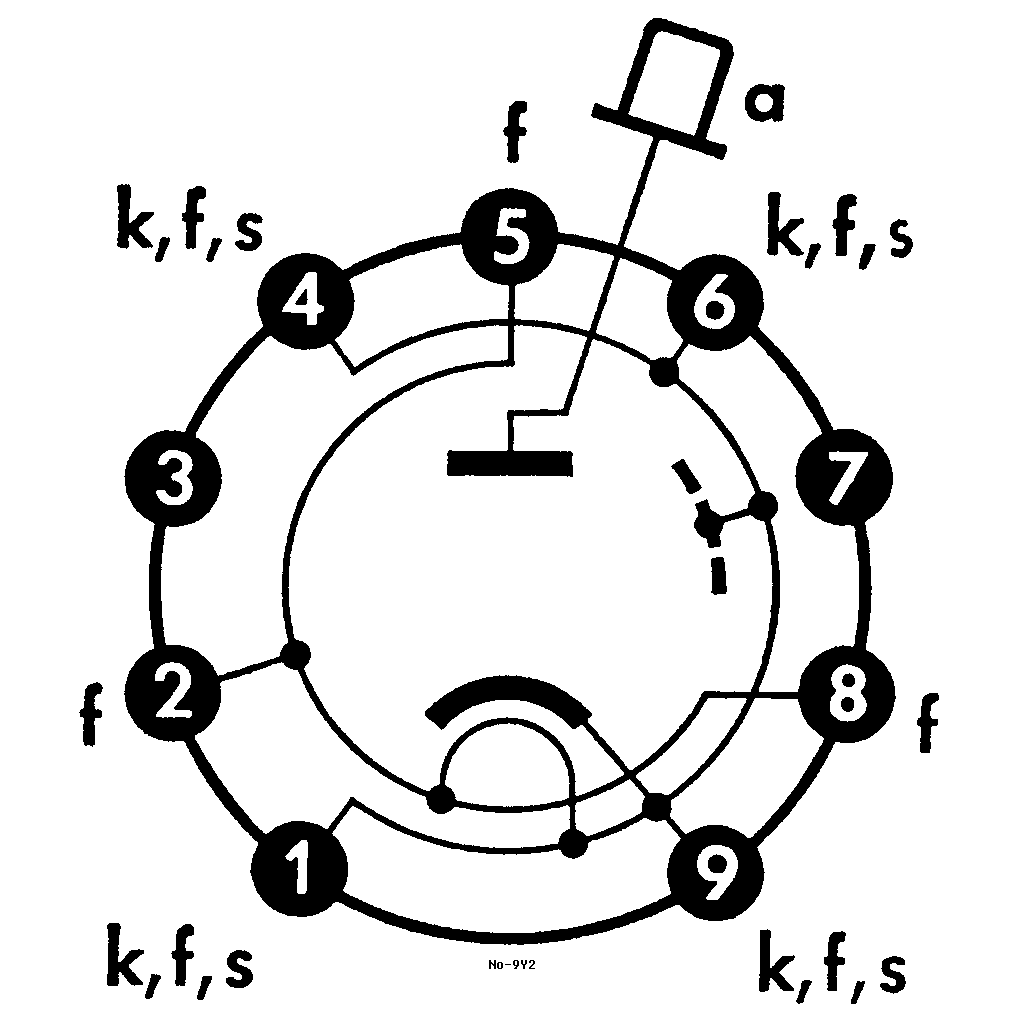

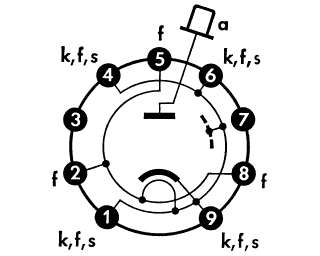

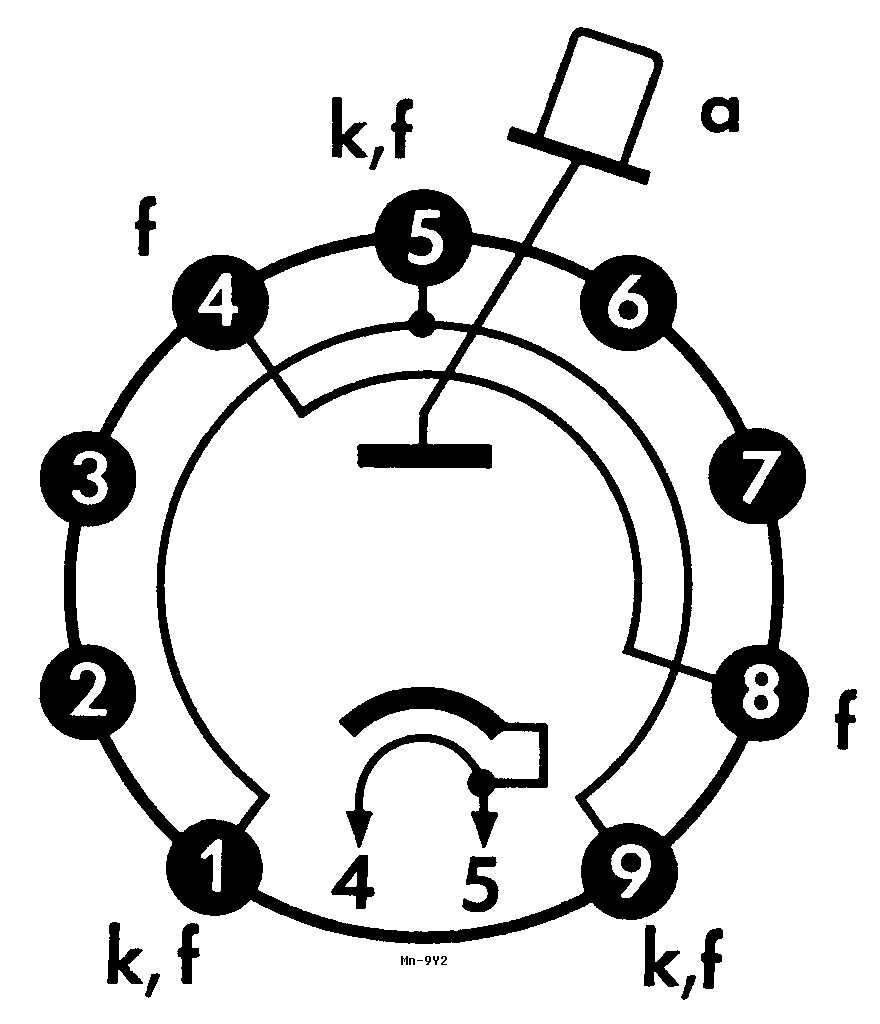

No-9Y2
DY86 DY87 DY802 GY802 EY86 EY87 EY802
No-9Y2

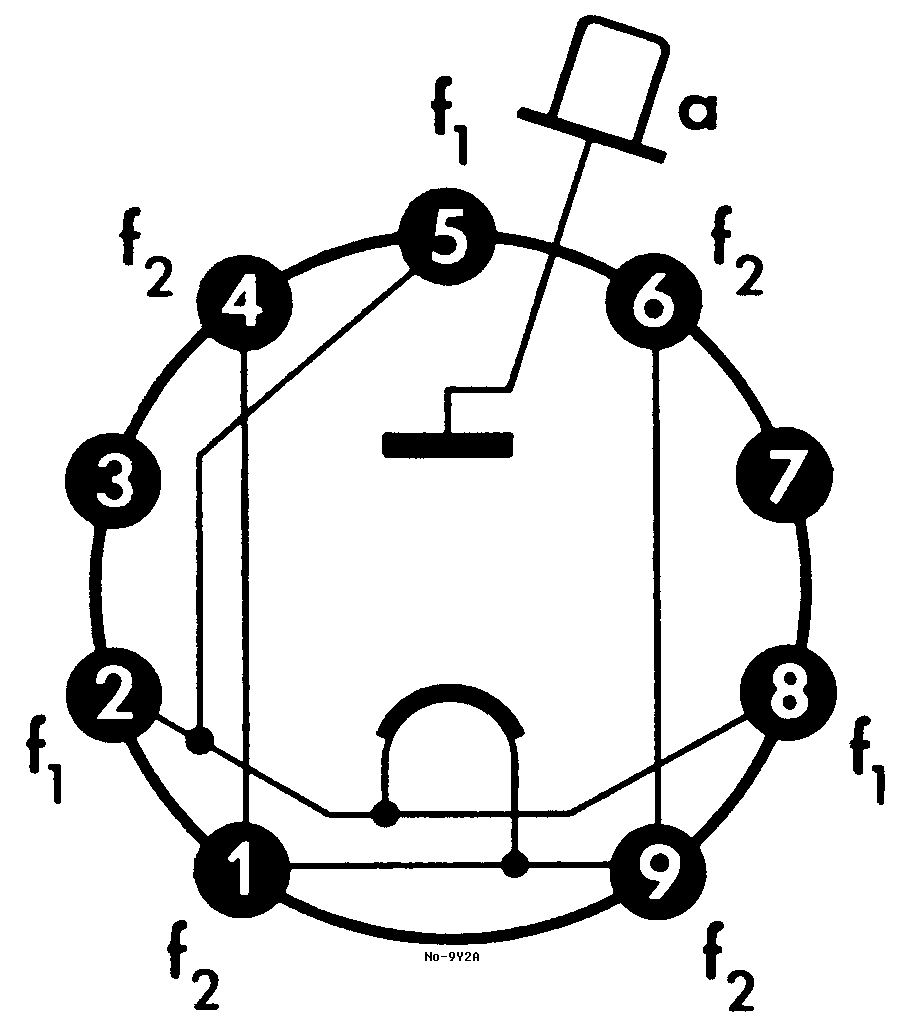

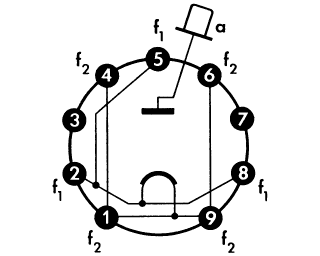

No-9Y2A
DY80
No-9Y2A

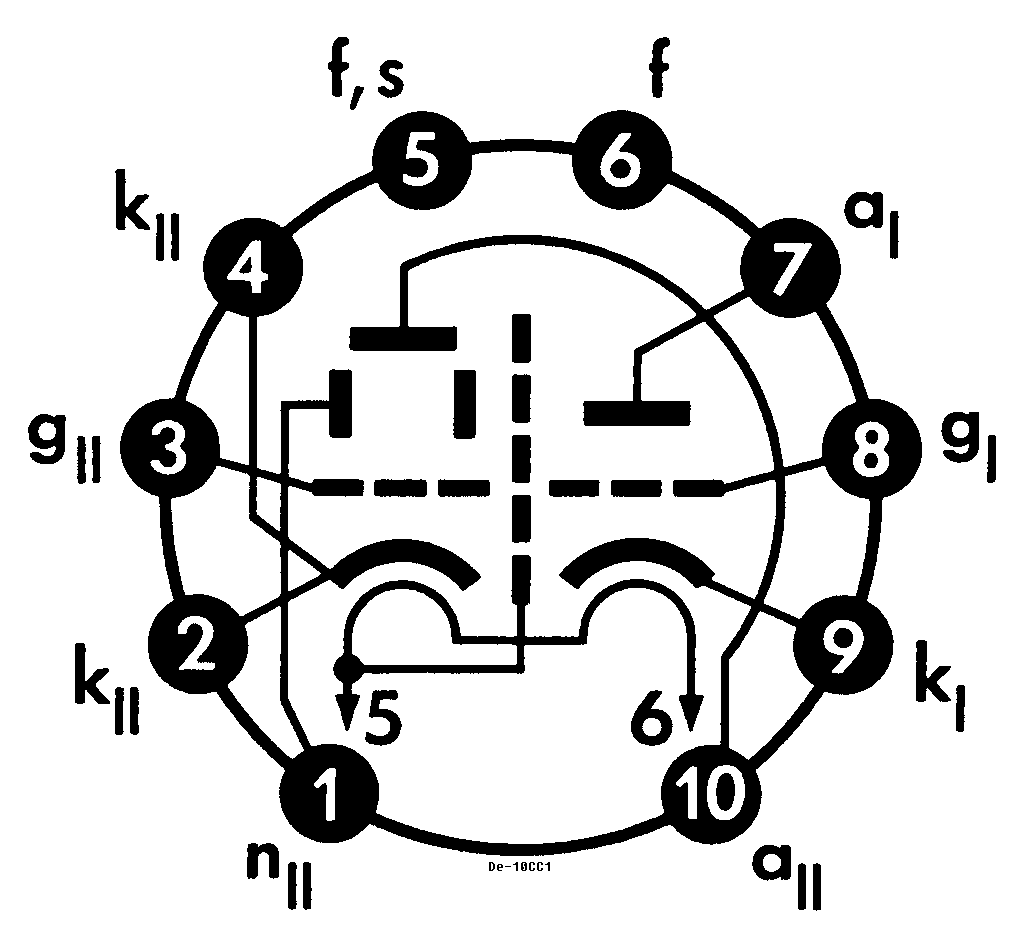

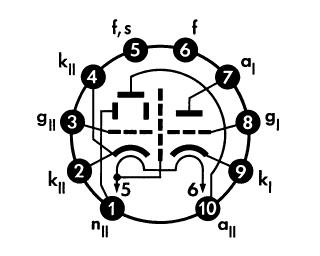

De-10CC1
ECC2000
De-10CC1

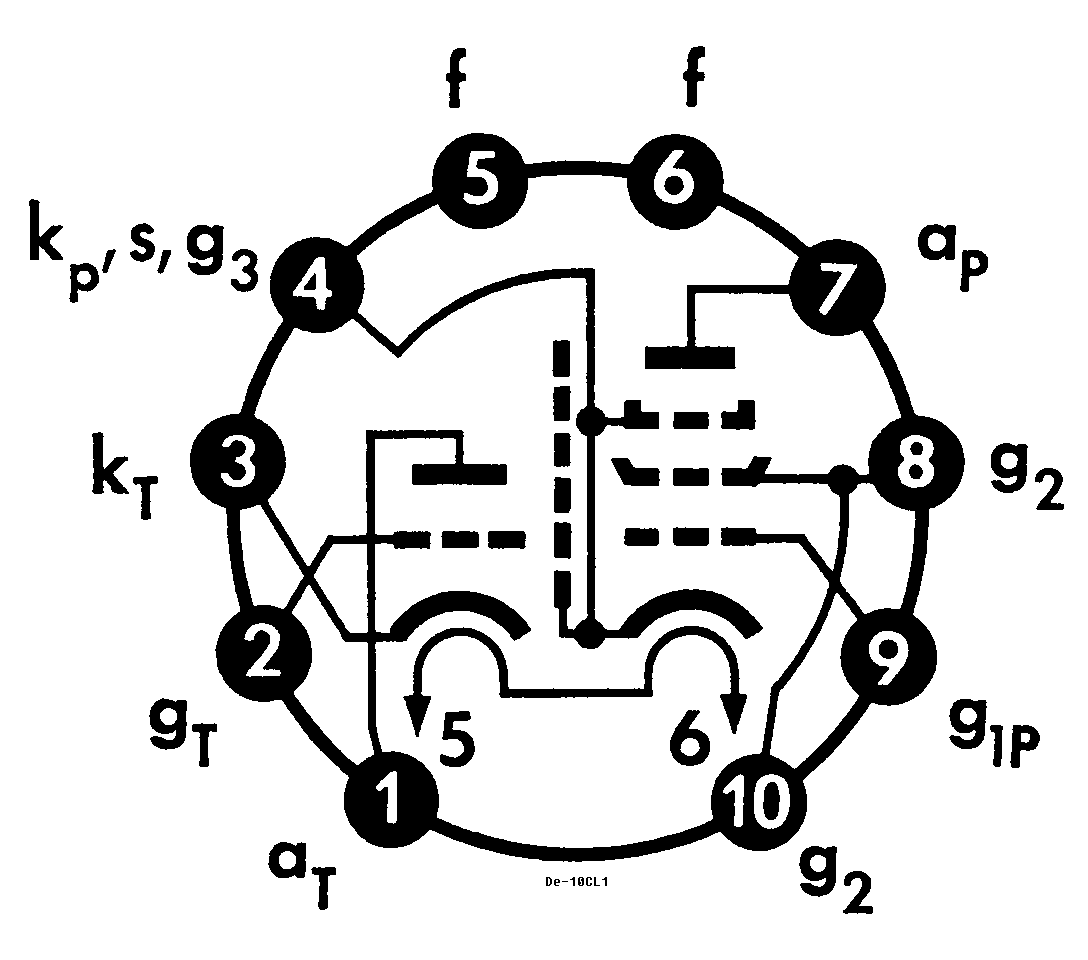

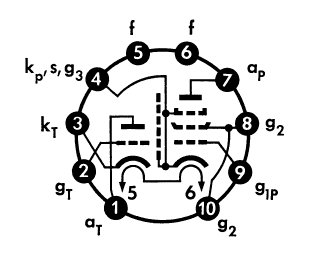

De-10CL1
ECL200 PCL200
De-10CL1

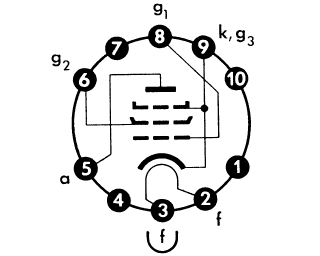

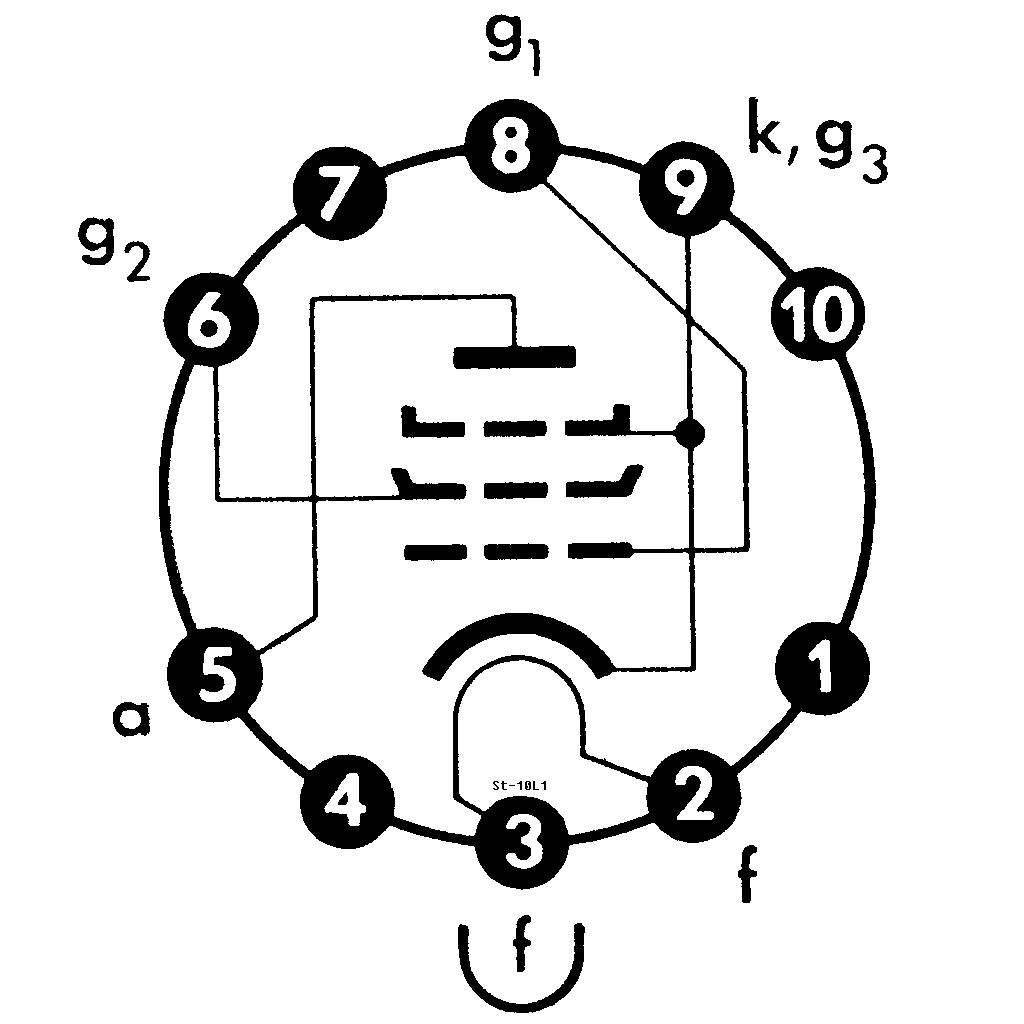

St-10L1
EL156
St-10L1

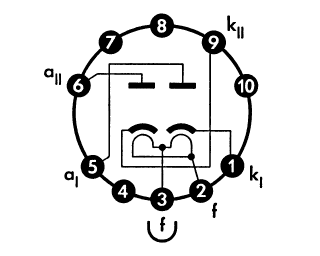

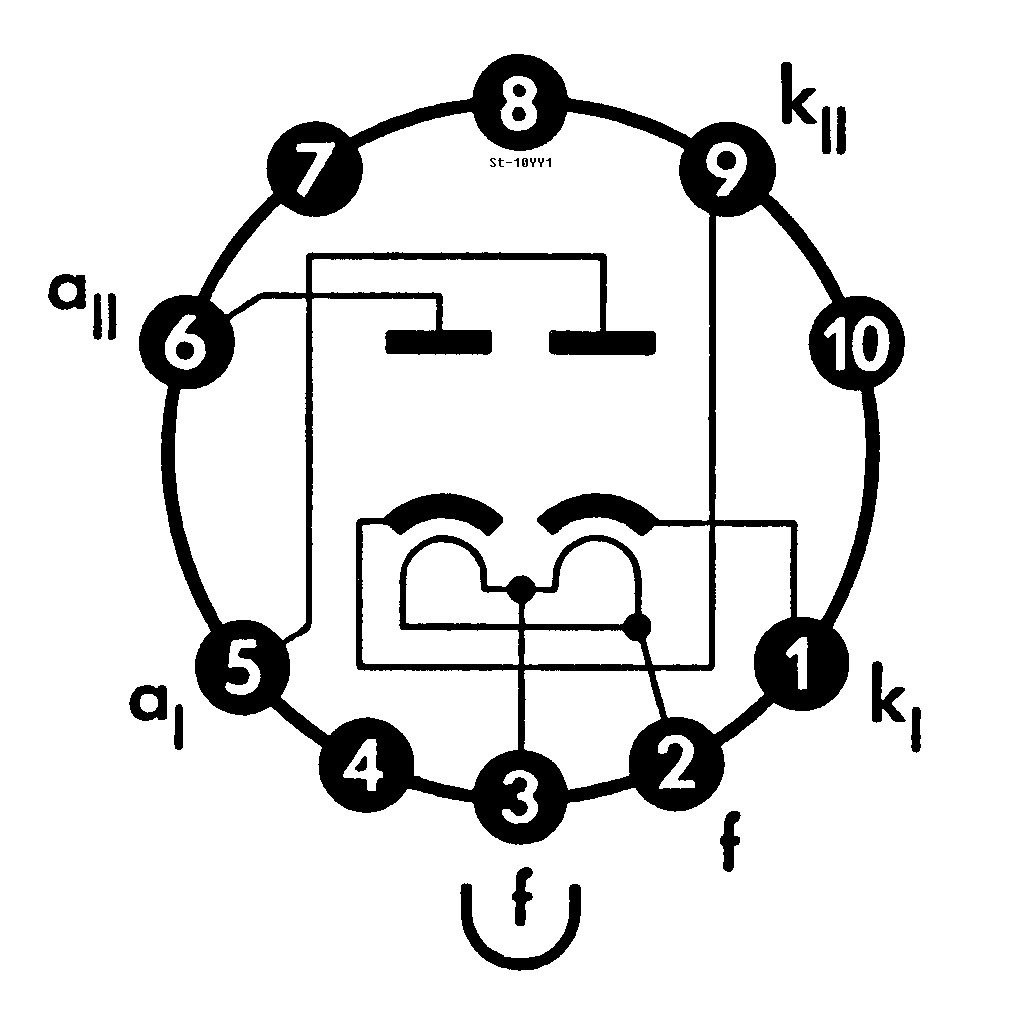

St-10YY1
EZ150
St-10YY1
